Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most from your new dishwasher, we recommend that you read the
operating instructions before using the dishwasher. The operating instructions
also include information on how you can help protect the environment.
Operating Instructions
Dishwasher

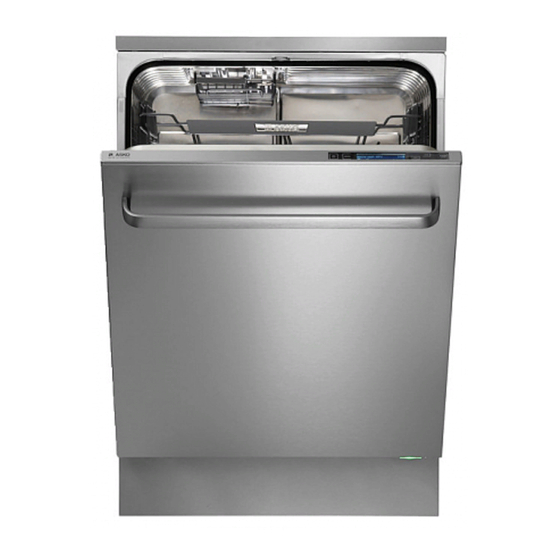

ASKO D5894 XXL
Advertisement
Table of Contents
Related Manuals for Asko D5894 XXL
Summary of Contents for Asko D5894 XXL
-
Page 1: Operating Instructions
Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world. -
Page 2: Table Of Contents
Contents Front panel Troubleshooting Safety instructions Technical information Before washing for the first time Installation Loading the dishwasher Service Using the dishwasher Program chart Special settings Your notes Care and cleaning Front panel The panel is fitted with touch buttons with audible feedback (see the chapter Special settings). S TA R T P R O G S T O P... -
Page 3: Safety Instructions
Safety instructions General WARNING! Read the operating instructions and keep them in a safe place! Dishwasher detergents are strongly alkaline. They can be Never use the dishwasher for any purpose other than that extremely dangerous if swallowed. Avoid contact with skin and specified in these operating instructions. -
Page 4: Before Washing For The First Time
Before washing for the first time Disposal Checking water hardness When the dishwasher has reached the end of its service life Contact the local water utility to check the water hardness in your and is to be disposed of, it should immediately be made area. -
Page 5: Loading The Dishwasher
Loading the dishwasher Plastic items Economic dishwashing Avoid washing plastic items that cannot withstand high Run programs only with a full load temperatures. Wait to run a program until the dishwasher is full. This way you Your machine is equipped with a turbo drying function (Turbo save energy. -
Page 6: Lower Basket
Foldable tines Wire basket The foldable tines can be folded up or down to make it easier to load pots, bowls and glasses. Raising the upper basket Utensils basket 1 Pull out the upper basket. 2 Grab the sides of the upper basket with both hands and lift it Washing larger items The two baskets in the middle basket can be removed, or the Lowering the upper basket... -
Page 7: Cutlery Basket
Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other. The cutlery basket is best placed in the middle at the front of the lower basket to best utilise dishwashing performance from the unique spray nozzle (Power Zone™... - Page 8 Extra cutlery basket (disassembly) Extra cutlery basket (assembly) TIP! The disassembled parts can also be mounted on the large cutlery basket to make an even larger cutlery basket. Positioning of extra cutlery basket...
-
Page 9: Using The Dishwasher
Using the dishwasher Time program Add detergent The program adapts to the specified running time or finish time. With this program it is important to choose a time suited to how dirty the dishes are. 0:30-1:15 Slightly dirty dishes 1:30-2:00 Normally dirty dishes 2:15-3:00 Very dirty dishes... - Page 10 Rinse & Dry This program comprises a rinse with heating and drying. This is a suitable program if, for example, you plan to make jam and want to rinse and heat clean glass jars. Rinse & Hold Used to rinse dishes while you wait for the dishwasher to become fully loaded.
-
Page 11: Selecting Options
Selecting Options If you do not want to select any more options, press the Program selector to exit the options menu. P R O G Description Loading the baskets This option activates both spray arms and enables you to wash both the upper and lower baskets. - Page 12 Description This option can be activated when using 3-in-1/all-in-one detergents. The dishwashing program automatically adapts to provide the best On 3in1 possible dishwashing and drying results every time. If you deactivate this option, the dishwasher will return to ordinary function for all programs.
-
Page 13: Time Remaining
Blue Start the dishwasher Load more. The program has started, but you can still load more Press and hold Start/Stop until the display shows "Program dishes. started". Close the door properly, otherwise the dishwasher will not start. Do not load. You should not load more dishes (risk of poorer dishwashing result). -
Page 14: Special Settings
Special settings How to open the special settings menu: Press the button until Special settings appears on the display. Press the button once. How to save a selection: S TA R T P R O G S T O P Press to save and exit the special settings menu. - Page 15 Description Finally, press to save and exit the menu.
-
Page 16: Care And Cleaning
Care and cleaning Coarse filter NOTE! The coarse filter traps larger food particles, which cannot get The dishwasher must not be used without the filter in place! past the drainage pump. Empty the coarse filter as necessary. Diswashing efficiency can be affected if the course filter is 1 Lift the coarse filter by the handle. - Page 17 Cleaning the middle basket 1 Pull out the basket. 2 Check the holes in the spray pipe. Upper spray arm 1 Pull out the basket. 2 Unscrew the spray arm bearings as illustrated to remove the spray arm from the upper basket. Spray pipes 3 Clean with a needle or the like.
-
Page 18: Troubleshooting
Troubleshooting Display Action Overfilling Call the service division. Water outlet fault See "Water remains in the dishwasher" in the table below. Water inlet fault Check that the water tap is on. Check whether dishwasher inlet hose is connected to a pressure limiting valve (some pressure limiting valves may restrict the supply of water to the dishwasher). - Page 19 Problem Possible causes Action Rattling sound when dishwashing. The dishes are not correctly placed or the Check that the dishes are placed securely. spray arms are not rotating. Spin the spray arms to make sure they can rotate. The dishwasher does not start. The Start/Stop start button has not been Press and hold Start/Stop until the display pressed for long enough.
- Page 20 Problem Possible causes Action Cannot close door. The baskets are not correctly positioned. Check that the baskets are correctly posi- tioned horizontally, and that the middle bas- ket's water connector is in line with its spray pipe. Check that the dishes are not blocking the baskets from sliding properly into place.
-
Page 21: Technical Information
Technical information Information for test institute Energy labelling Australian standard: AS/NZS 2007 Number of place settings: Dishwashing programs: Normal wash 50 °C, Short dry The door should be opened upon completion of the drying cycle a distance of 35 mm at V. Program time: 2:05 hours:minutes Connection:... -
Page 22: Technical Data
1 Teaspoons 2 Dessertspoons 3 Soupspoons 4 Forks 5 Knives Do not forget to fit the protective cap to the middle basket con- nector right at the back of the machine. See the section Loading the dishwasher. Technical data Height: 857-912 mm Width: 596 mm... -
Page 23: Installation
Installation 1229 [mm] 30 - 94 *Remove locking nuts and any coasters for an installed height of 860-864 mm. Safety instructions Transport protection for the door Connections to electricity, water and drainage must be Do not forget to remove the transport protection for the door when performed by a qualified professional. - Page 24 Suggested machine installations WARNING! The dishwasher can be installed built-in, completely freestanding A completely freestanding dishwasher must be fitted with or partially built-in. anti-tip brackets. A. Built-in The dishwasher is intended for installation under a worktop. The C. Partially built-in recess dimensions are illustrated.
-
Page 25: Drainage Connection
7 Make any final adjustments to the feet (the dishwasher may Adjust the height and slide the lean no more than 5 mm) and tighten the lock nuts on the front dishwasher into place feet. 1 Start by measuring the height from the floor to the bottom If you want to install your dishwasher freestanding, skip steps 2, edge of the worktop. -
Page 26: Screwing The Dishwasher Into Place
Screwing the dishwasher into place After fastening the machine, check that the front feet still touch the floor. Alt. 1 Alt. 2 Max. 950 mm Min. 350 mm Figure 3 Connection to water supply Use only the supply hose provided with the dishwasher. Do not re-use old hoses or other spare supply hoses. -
Page 27: Set The Correct Plinth Depth As Follows
Adjusting the plinth (only when using Set the correct plinth depth as follows toe kick accessory) Type A The dishwasher is supplied with one or two toe kicks depending on the model. The table shows which toe kick you should use depending on the recess height and plinth depth. - Page 28 Type B...
-
Page 29: Service
Service Read chapter Troubleshooting before contacting the service department. Note down the details on the rating plate positioned on the right inside the dishwasher. Note down the item number (1) and serial number (2). ART. NO. SERIAL NO. -
Page 30: Program Chart
Program chart... -
Page 31: Your Notes
Your notes... -
Page 32: Quick Guide
Select a program and any options (see page 9) P R O G Press and hold Start/Stop for two seconds and close the S TA R T door (see page 13) S T O P en (05-14) ASKO APPLIANCES AB SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
