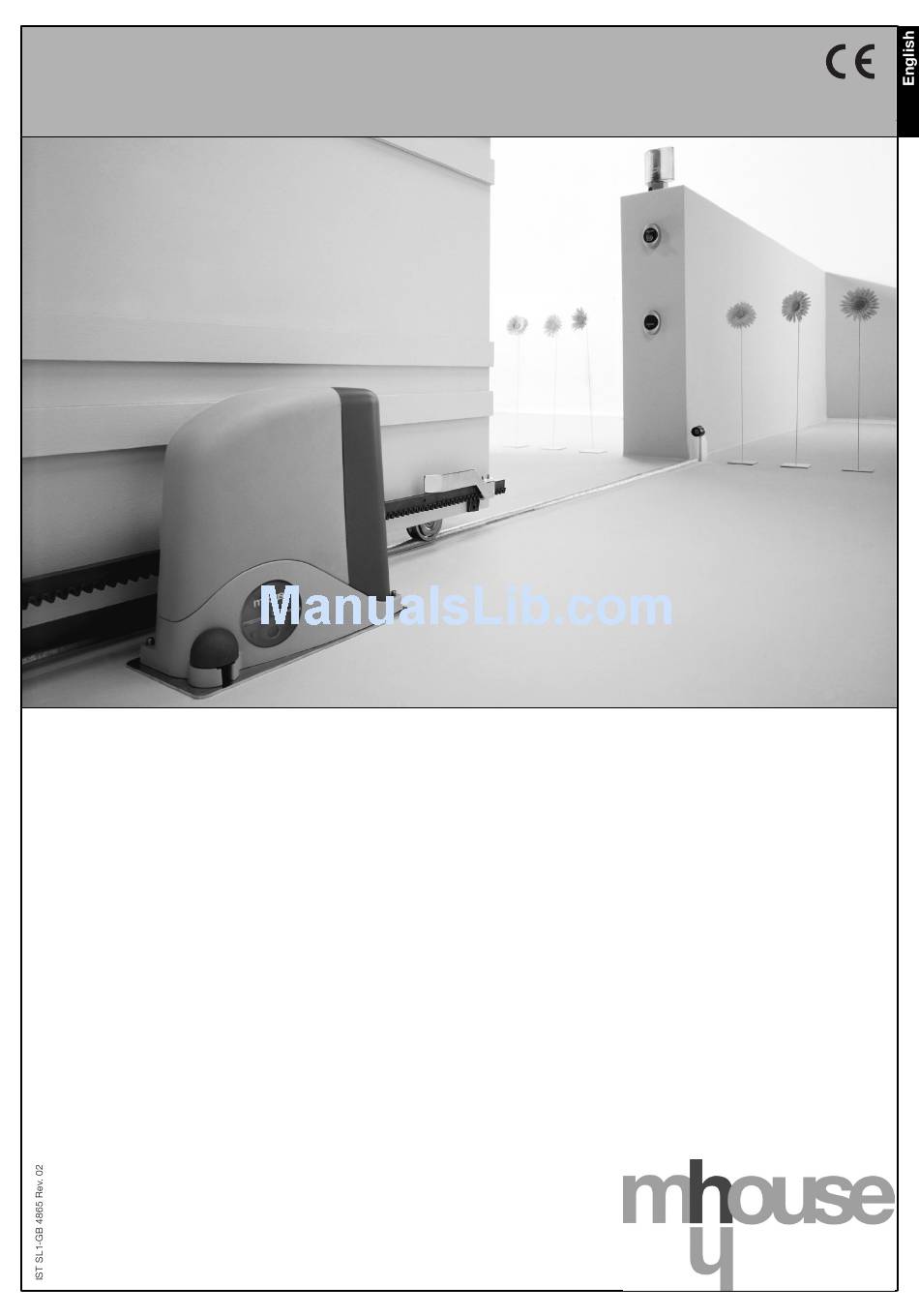

- Page 1 MhouseKit SL1 For the automation of sliding gates Installation instructions and warnings...
-
Page 2: Table Of Contents
In any case, the manufacturer email: info@mhouse.biz guarantees their functionality and fitness for the intended purposes. http: www.mhouse.biz WU2 is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the Nice S.p.a group. Contents 1 Warnings... -
Page 3: Warnings
1 Warnings • If this is the first time that you install a SL1 gate automation system we • The SL1 automation system cannot be considered as a suitable recommend that you dedicate some of your time to reading this manual. -
Page 4: Product Description
2.2 Description of the automation The following example of a typical SL1 application will serve to clarify a few terms and aspects of a gate automation system: Figure 1 A) KS1 key-operated selector switch. -
Page 5: Description Of Devices
(see tables 1,2,3,4). Figure 2 2.3.1 SL1K Electromechanical Gearmotor SL1 is an electromechanical gearmotor consisting of a helical geared reduction gear and a 24V direct current motor. It features a key-operated mechanical release mechanism that allows you to move the gate manually in the event of a power failure. -
Page 6: Release Keys
4 types of command to a single automation unit, or to control up to 4 different automation units. The transmission of the command is confirmed by the LED [A]; an eyelet [B] allows them to be hung on a keyring. Figure 8 6 Instructions SL1... -
Page 7: Installation
1 "Warnings". 3.1 Preliminary checks SL1 must not be used to power a gate that is not efficient and • Make sure there is a suitable fixing surface at the points where safe. It cannot solve defects resulting from incorrect installation the rack is fixed to the gate. -
Page 8: Operating Limits
In general, SL1 is suitable for the automation of gates up to 5 m long, characteristics chart for the gearmotor. -
Page 9: List Of Cables
3.1.3 List of cables The cables required for the installation of SL1 may vary depending on the type and quantity of devices to be installed; figure 17 shows the cables needed for a typical installation; no cable is supplied with SL1. -
Page 10: Installation Of The Various Devices
4 Position the foundation plate making sure that the grooved side (indicating the position of the pinion) faces the gate observing the distances shown in figure 11. Figure 21 Figure 19 5 Fit the conduits through the hole in the foundation plate. 6 Pour the concrete. 10 Instructions SL1... -
Page 11: Mounting On Gates With A Rack
11 on page 7. Make sure the foundation plate is 77 mm from the rack, see figure 15. 2 Lay the conduits for the power cables leaving them 30-50 cm longer. Figure 26 Instructions SL1 11... - Page 12 "Electrical Connections" on page 15. nuts over the plate which will no longer be used. 9 Cut the cable conduits approximately 3-4cm above the plate. 10 Remove the nut cover on the gearmotor. Figure 32 Figure 29 12 Instructions SL1...
-
Page 13: Photocells
2 Remove the front glass [A] by prising it out with a slotted tip screwdriver applied to the bottom. Figure 39 Figure 38 Instructions SL1 13... -
Page 14: Fl1 Flashing Light
6 Drill the holes in the wall using a hammer drill with a 6 mm bit and insert the 6 mm screw anchors. 7 Secure the bottom with the screws [C]. Figure 43 3 Separate the lamp holder with the aerial from the base. Figure 45 Figure 44 14 Instructions SL1... -
Page 15: Electrical Connections To The Sl1K Control Unit
"Open" manoeuvre as shown in figure 50 or figure 51. 4 Remove enough of the inner mesh from the rubber membrane to allow the cables to be threaded through. Lastly, push back the membrane. Figure 50 Figure 53 Figure 51 Instructions SL1 15... - Page 16 55; make the connections and then reinsert them. above and tighten the screw with a screwdriver. When you have completed the connections, use clamps to secure the cables to the appropriate fasteners [B]. Figure 55 Figure 56 16 Instructions SL1...
-
Page 17: Power Supply Connection
3.4 Power Supply Connection The connection of the SL1 control unit to the mains must be made by a qualified electrician. To carry out tests, insert the plug for SL1K in a power outlet; if necessary, use an extension cord. -
Page 18: Checking Gate Movements
To switch from one speed to the other press the P2 button [B] momentarily; the corresponding P2 LED [A] will light up or go off; if the LED is off the speed is "slow", if the LED is on the speed is "fast". Figure 63 18 Instructions SL1... -
Page 19: Selecting The Type Of Operating Cycle
17), analysis of hazards and solutions adopted, manufacturer's declaration of conformity of all the devices installed. For SL1 use Annexe 5 Prepare the maintenance schedule and deliver it to the owner of the 1 "EC Declaration of Conformity of the SL1 components". -
Page 20: Maintenance
4.1 Dismantling and Disposal SL1 is constructed of various types of materials, some of which can be 2 Disassemble all the devices and accessories, following in reverse order recycled (aluminium, plastic, electric cables), while others must be the procedures described in chapter 3 "Installation". -
Page 21: Additional Information
5 Additional information The following chapters describe different ways of customizing SL1 to make it suitable for specific application requirements. 5.1 Advanced Adjustments 5.1.1 Adjusting the Parameters with the Radio Transmitter The radio transmitter can be used to adjust certain control unit operation 2) Pedestrian gate: pedestrian gate opening mode. -
Page 22: Checking The Adjustments With The Radio Transmitter
5 Count the flashes and, based on their number, check the corresponding value in table 6. 5.2 Optional Accessories In addition to the devices featured in SL1, other ones are available as PT50: Pair of 500 mm posts with one photocell. optional accessories designed to enhance the automation system. -
Page 23: Recognition Of Other Devices
3.7.1 "Testing". 5.3.4 Addition of Optional Photocells Additional photocells can be installed at any time on top of those supplied with SL1. In an automation system for sliding gates these can be arranged as shown in figure 68. Figure 68... -
Page 24: Memorization Of Radio Transmitters
• Mode 1:in this "mode" the radio transmitter is used to its fullest extent, i.e. all the buttons execute a pre-established command (the transmitters supplied with SL1 are memorized in Mode 1). It is obvious that in Mode Each transmitter is, of course, a separate unit, and while some are 1 a radio transmitter can be used to command a single automation, i.e.:... -
Page 25: Deleting A Radio Transmitter
10-30Vac); if there is voltage, the problem is flashing light does not work due to the lamp; in this case replace the lamp with one having the same characteristics. Figure 72 Instructions SL1 25... -
Page 26: Diagnostics And Signals
Cutting in of the "motor force" limiting device identify the cause 3 flashes 4 flash During the movement the STOP input was activated; identify 1 second's pause Cutting in of the STOP input the cause 4 flashes 26 Instructions SL1... -
Page 27: Control Unit
It indicates that the search for the connected devices is under way (this 2 flashes per second Device recognition stage in progress stage lasts a few seconds at the most) P3 LED [F ] Status Action Everything OK Single cyclic operation Everything OK Complete cyclic operation Figure 74 Instructions SL1 27... -
Page 28: Technical Charateristics
6 Technical Charateristics SL1 is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the NICE S.p.a. group. Nice S.p.a., in order to improve its products, reserves the right to modify their technical characteristics at any time without prior notice. In any case, the manufacturer guarantees their functionality and fitness for the intended purposes. - Page 29 Security lock Key with 450 different key numbers The device can only be connected to the "OPEN" and "STOP" terminals on the MHOUSE automation Power supply/contacts control units, to which it sends the control signals and by which it is energized for night illumination Operating ambient temperature -20 ÷...
-
Page 30: Annexes
The following annexes are designed to help you prepare the technical documentation 7.1 Annexe 1: CE Declaration of Conformity of SL1 Components CE Declaration of Conformity of SL1 components; this statement must be attached to the technical documentation. 7.2 Annexe 2: CE Declaration of Conformity of Power Operated Gate CE Declaration of Conformity to be filled in and delivered to the owner of the power operated gate. -
Page 31: Annexe 1: Ce Declaration Of Conformity Of Sl1 Components
Declaration of conformity According to Directive 98/37/EC, Annexe II, part B (CE declaration of conformity by manufacturer) SL1 is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the Nice S.p.a group. Number: 159/SL1 Date: 15/10/2002 Revision: 02... -
Page 33: Annexe 2: Ce Declaration Of Conformity Of Power Operated Gate
Declaration of conformity According to Directive 98/37/EC, ANNEXE II, part A (CE declaration of conformity for machines) The undersigned / Company: (name or business name of person who has put the power operated gate into service) (address) Declares under his/her sole responsibility that: The automation : power operated gate Serial number... -
Page 35: Annexe 3: Operating Guide
The selector switch has two positions, with automatic return to the centre. Figure 76 Action Function Rotated to the right: "OPEN" Rotated to the left: "STOP" It stops the movement of the gate (*) This item must be drafted by the person who has programmed the system. Instructions SL1 35... -
Page 36: Maintenance Operations To Be Performed By The User
The gearmotor is equipped with a mechanical system which allows the gate to be opened and closed manually (i.e. as if SL1 were not present). The manual operation must be resorted to in case o power failures or system malfunctions. If a power failure occurs, the buffer battery can be used (PR1 optional accessory). - Page 40 Mhouse Via Pezza Alta, 13 - Z.I. Rustignè 31046 Oderzo TV Italia Tel. +39 0422 20 21 09 Fax +39 0422 85 25 82 info@mhouse.biz www.mhouse.biz...
