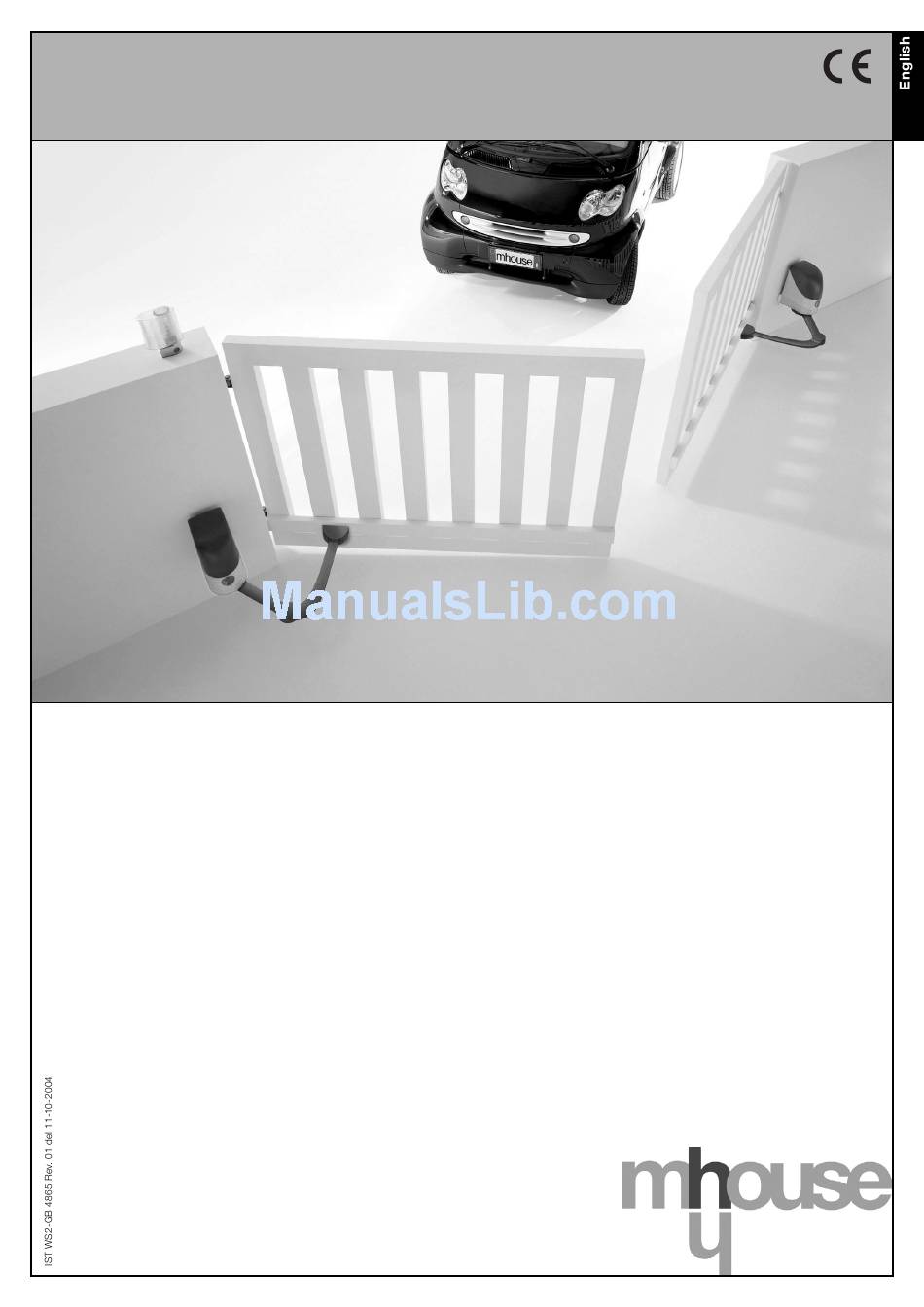

- Page 1 MhouseKit WS2 For the automation of swing gates. Installation instructions and warnings...
-
Page 2: Table Of Contents
Tel: 0422 202109 Fax: 0422 852582 MHOUSE, in order to improve its products, reserves the right to modify email: info@mhouse.biz their technical characteristics at any time without prior notice. In any case, the manufacturer guarantees their functionality and fitness for the http: www.mhouse.biz... -
Page 3: Warnings
Do not proceed with the installation if you have doubts any WS2 device must be performed with the control unit dis- of any sort; if necessary, refer to the MHOUSE customer serv- connected from the power supply (and from the PR1 buffer bat- ice department for clarifications. -
Page 4: Product Description
2 Product description 2.1 Applications WS2 is a set of components designed for the automation of single-leaf WS2 operates with electric power. In the event of a power failure, the or double-leaf gates in residential applications. gearmotor can be released using suitable keys in order to move the gate manually. -
Page 5: Description Of Devices
2.3 Description of devices WS2 consists of the devices shown in figure 2; make immediately sure that they correspond to the contents of the package and verify the inte- grity of the devices. Note: to adapt WS2 to local regulations, the contents of the package may vary;... -
Page 6: Release Keys
2.3.2 Release keys The three keys enable the gearmotor to be released in the event of a power failure. Figure 4 2.3.3 Photocells PH1 The pair of PH1 wall-mounted photocells, once they are connected to the control unit, enable the detection of obstacles found on the optical axis between the transmitter (TX) and the receiver (RX). -
Page 7: Installation
3 Installation The installation must be carried out by qualified and skilled per- sonnel in compliance with the directions provided in this chapter 1 “WARNINGS”. 3.1 Preliminary checks WS2 must not be used to power a gate that is not efficient and •... -
Page 8: Operating Limits
3.1.1 Operating limits Chapter 6 “Technical Characteristics” provides the fundamental data 110° for residential applications. The shape of the gate and the climatic needed to determine whether all the WS2 components are suitable for conditions (e.g. presence of strong wind) may reduce these maximum the intended application. -
Page 9: Preparing The Electrical System
3.2 Preparing the Electrical System With the exception of the power line that supplies the control unit, the can start preparing the conduits for the electrical cables connecting the rest of the system uses extra-low voltage (approx. 24V); the wiring can devices to the control unit. - Page 10 8 Fasten the gearmotor to the plate with the screws [F] and the self- 14 Loosen screw [N] securing the straight arm to the gearmotor and locking nuts [G]. insert protection cover [O] between the straight arm and washer [P]. Tighten the screw fully down.
-
Page 11: Photocells
3.3.2 Photocells 1 Select the position of the two photocell elements (TX and RX) accord- 7 Secure the bottom with the screw [C]. ing to the following instructions: • Position them at a height of 40-60 cm from the ground, on both sides of the area to be protected, on the street side of the installation and as close as possible to the edge of the gate, no further than 15 cm. -
Page 12: Flashing Light Fl1
4 Breach the four holes at the bottom with a screwdriver; mark the drilling points using the bottom as reference; make sure that the hole in the bottom matches the outlet for the cables. 5 Drill the holes in the wall using a hammer drill with a 5 mm bit and insert the 5 mm screw anchors. -
Page 13: Electrical Connections To The Ws1C Control Unit
3.3.5 Electrical connections to the WS1C control unit 1 Remove the top cover of the gearmotor by pushing a screwdriver 3 Refer to figure 43 for the electrical extra low voltage connection of the under the closing hook inside the release ringnut and pulling the cover various devices to the control unit terminals. -
Page 14: Power Supply Connection
4 To facilitate the installation operations, the terminals [A] can be removed 5 Close the gearmotor cover by inserting from above and clicking the as shown in figure 45; make the connections and then re-insert them. front retainer tab into position. When you have completed the connections, use clamps to secure the cables to the appropriate slots. -
Page 15: Recognition Of Connected Devices
3.5.1 Recognition of connected devices When you have completed the initial checks, the control unit must recog- nise the devices connected to it on the “ECSBus” and “STOP” terminals. 1 On the control unit, press the P2 button [C] and hold it down for at least three seconds, then release the button. -
Page 16: Regulations
3.6 Regulations 3.6.1 Selecting the Speed of the Leaf The leaves can be opened and closed at two speeds: “slow” or “fast”. To switch from one speed to the other press the P2 button [B] momen- tarily; the corresponding P2 LED [A] will light up or go off; if the LED is off the speed is “slow”, if the LED is on the speed is “fast”. -
Page 17: Commissioning
3.7.2 Commissioning Commissioning can take place only after all the testing phases 3 Fill out the declaration of conformity and deliver it to the owner of the have been terminated successfully. Partial commissioning or automation system; for this purpose you can use Annexe 2 “EC Dec- implementation of “temporary”... -
Page 18: Additional Information
5 Additional information The following chapters describe different ways of customising WS2 to make it suitable for specific application requirements. 5.1 Advanced Adjustments 5.1.1 Adjusting the Parameters with the Radio Transmitter The radio transmitter can be used to adjust certain control unit operation 2) Pedestrian gate: pedestrian gate opening mode. -
Page 19: Checking The Adjustments With The Radio Transmitter
The photocells, as well as other devices that adopt this system, can be connected to ECSBus, such as safety devices, control buttons, signalling lights etc. For information on the ECSBus devices, refer to the MHOUSE catalogue or visit the site www.mhouse.biz. -
Page 20: Recognition Of Other Devices
5.3.3 Recognition of other devices Normally the recognition of the devices connected to the ECSBus and 4 After you have added or removed any devices, the automation sys- the STOP input takes place during the installation stage. However, if new tem must be tested again according to the directions contained in devices are added or old ones removed, the recognition process can be paragraph 3.7.1 “Testing”. -
Page 21: Memorization Of Radio Transmitters
5.4 Memorization of Radio Transmitters The control unit contains a radio receiver for TX4 transmitters; those T1 button “Open only” command Automation N. 1 included in the package are pre-memorized and operative. T2 button “Close only” command Automation N. 1 If you wish to memorize a new radio transmitter you have two choices: T3 button “OPEN”... -
Page 22: Deleting A Radio Transmitter
5.4.4 Deleting a Radio Transmitter Only if the system features a radio transmitter, you can delete it from the 3 Press the key on the radio transmitter to be deleted and hold it down memory by proceeding as follows. for at least three seconds. If the deletion procedure is successful, the P1 LED will flash rapidly 5 times.If the P1 LED flashes only once slow- ly, it means that the deletion procedure has not been successful If the transmitter is memorized in Mode 1, only one deletion procedure... -
Page 23: Diagnostics And Signals
5.6 Diagnostics and Signals A few devices issue special signals that allow you to recognize the operating status or possible malfunctions. 5.6.1 Photocells The photocells are equipped with a “SAFE” LED [A] that allows you to check the operating status at any tim Table 13 Action “SAFE”... -
Page 24: Control Unit
5.6.3 Control unit On the control unit there is a set of LED’s each of which can give special indications both during normal operation and in case of malfunctions. Table 15 “ECSBus” LED [A] Status Action Make sure there is power supply; check to see if the fuses are blown; if Malfunction necessary, identify the reason for the failure and then replace the fuses with others having the same characteristics. -
Page 25: Technical Characteristics
6 Technical characteristics WS2 is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the Nice S.p.a group. Nice S.p.a., in order to improve its products, reserves the right to modify their technical characteristics at any time without prior notice. In any case, the manufacturer guarantees their functionality and fitness for the intended purposes. - Page 26 Security lock Key with 450 different key numbers The device can only be connected to the “OPEN” and “STOP” terminals on the MHOUSE gate automation Power supply/contacts control units, to which it sends the control signals and by which it is energized for night illumination Operating ambient temperature -20 ÷...
-
Page 27: Annexes
TX4 Transmitters Type Radio transmitters for remote control of automatic gates and doors. Adopted technology AM OOK coded modulation of radio carrier Frequency 433.92 Mhz Rolling code with 64 Bit code (18 billion million combinations) 4, each button can be used for the different controls of the same control unit or to control different control Buttons units. -
Page 29: Annexe 1: Ce Declaration Of Conformity Of Ws2 Components
Declaration of conformity According to Directive 98/37/EC, Annexe II, part B (CE declaration of conformity by manufacturer) WS2 is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the Nice S.p.a group. Number: 181/WS2/I Date: 23/01/2004 Revision: 00... -
Page 31: Annexe 2: Ce Declaration Of Conformity Of Power Operated Gate
Declaration of conformity According to Directive 98/37/EC, ANNEXE II, part A (CE declaration of conformity for machines) The undersigned / Company: (name or business name of person who has put the power operated gate into service) (address) Declares under his/her sole responsibility that: The automation : power operated gate with swing leaves Serial number... -
Page 33: Annexe 3: Operating Guide
7.3 Annexe 3: Operating Guide This guide should be stored in an accessible location and made available to all users of the automation. 7.3.1 Safety regulations • Keep at a safe distance while the gate is moving; do not pass •... -
Page 34: Maintenance Operations To Be Performed By The User
Gearmotor release 3 Turn the key anti-clockwise. The gearmotor is equipped with a mechanical system which allows the gate to be opened and closed manually (i.e. as if WS2 were not present). The manual operation must be resorted to in case o power failures or system malfunctions. - Page 36 Mhouse Via Pezza Alta, 13 - Z.I. Rustignè 31046 Oderzo TV Italia Tel. +39 0422 20 21 09 Fax +39 0422 85 25 82 info@mhouse.biz www.mhouse.biz...
