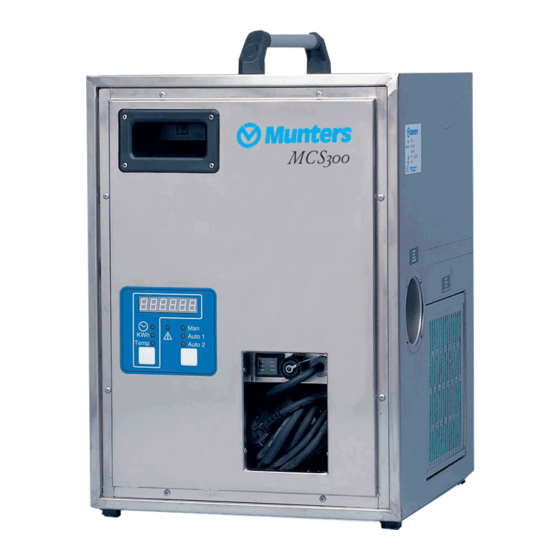

Munters MCS300 User Manual

Munters MCS300 User Manual

Desiccant dehumidifier
Hide thumbs Also See for MCS300:

Advertisement

Original instructions
User manual
MCS300
0 1
Desiccant dehumidifier
190TEN-1027- F1404
© Munters Europe AB 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCS300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Munters MCS300

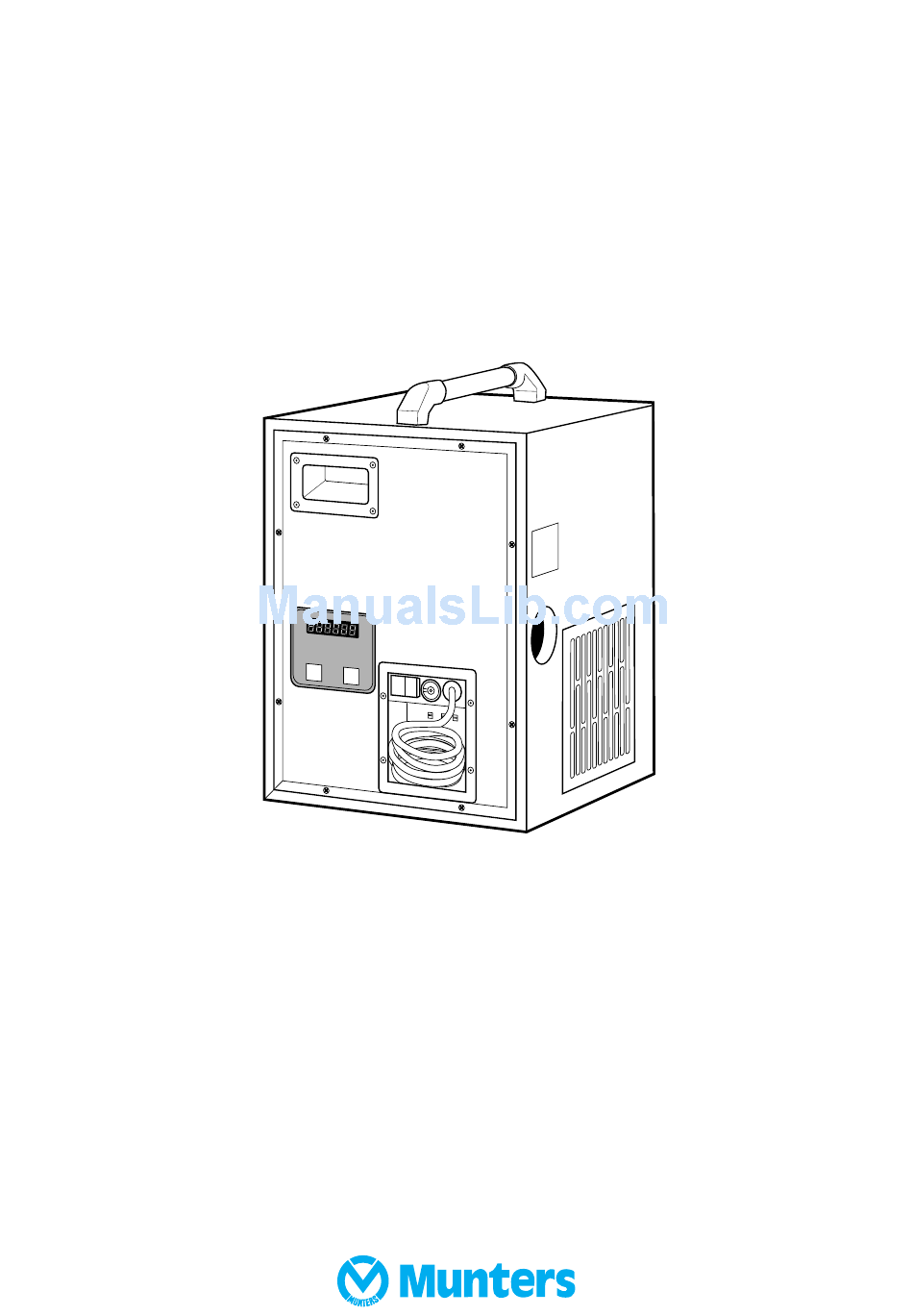

  • Page 1 Original instructions User manual MCS300 Desiccant dehumidifier 190TEN-1027- F1404 © Munters Europe AB 2014...
  • Page 2: Important User Information

    Important user information Intended use Safety Munters dehumidifiers are intended to be used for the Information about dangers are in this manual indicated dehumidification of air. Any other use of the unit, or by the common hazard symbol: use which is contrary to the instructions given in this...
  • Page 3: Table Of Contents

    3.9.1 General ......12 Contact Munters ......
  • Page 4: Introduction

    Read through the manual before the dehumidifier is installed and used. Contact your nearest Munters office if you have any questions regarding the installation or the use of your dehumidifier.
  • Page 5: Safety

    - Do not insert fingers or any other objects into the air vents, rotating fans are inside. - Do not cover the unit as that can block air intake or outlet and cause a fire. - If the unit has overturned, cut the power immediately. - Always contact Munters for service or repair. Introduction 190TEN-1027- F1404...
  • Page 6: Marking

    1.4 Marking Type MCS 300 Fabr. No 1~50Hz 230V 0.2 kW 1.9 kW 2.1kW Munters Europe AB Tobo Sweden MCS 300 Fa br. No. 0919 190XXX XXXXX Fa br. ye a r 2009 We ight: 25 kg 1 ~ 230V 50 Hz...
  • Page 7: Function Overview

    MCS300 2 Function overview The desiccant rotor is the adsorption dehumidifying component in the unit. The rotor structure is comprised of a large number of small air channels. The desiccant rotor is made of a composite material that is highly effective in attracting and retaining water vapour.
  • Page 8: Installation

    3.1 General The MCS300 is intended for indoor installation. The unit shall be placed in an upright position on a level surface. If the unit is stored prior to installation, place it in a roofed area, on a level surface where it is protected from impact, dust, frost, rain or aggressive contaminants.
  • Page 9: Inspection Of Delivery

    4. Remove all packaging material from the unit, and make sure that no damage has occurred during transportation. 5. Any visible damage must be reported in writing to Munters within 5 days and prior to installation of the unit. 6. Dispose of the packaging material according to local regulations.
  • Page 10: Storing The Equipment

    The dehumidifier is only intended for indoor installation. Avoid installing the dehumidifier where there is a risk of water entering the unit, or in a very dusty environment. Refer to Munters for advice if in doubt. For unit and service dimensions, see section 10, Technical specification.
  • Page 11: Connection Of Ducts And Hoses

    MCS300 3.8 Connection of ducts and hoses 3.8.1 General Follow the instructions below when attaching ducts or flexible hoses to the unit's air connections. Duct length should be kept as short as possible to minimise static pressure loss. ■ All duct and hose connections must be air tight and vapour tight to ensure full performance.
  • Page 12: Electrical Connections

    MCS300 Open airflow system The dehumidifier is placed outside the area to be dehumidified. Dry air is transported with ducting to the space to be dehumidified and the wet air is discharged in the vicinity of the unit or moved outdoors, see Figure 3.3 .
  • Page 13: Connecting The Humidistat

    MCS300 3.10 Connecting the humidistat 3.10.1 General The connection socket for the humidistat is located in the storage compartment for the power cable, see Figure 3.4 . The appropriate plug for the humidistat is delivered with the unit, see section 3.10.2, Humidistat connection kit.
  • Page 14: 2Humidistat Connection Kit

    MCS300 3.10.2 Humidistat connection kit Follow the instructions below to assemble and connect the humidistat connection kit. 1. Connect the leads to pins 1 and 2, and the screen to the earth pin. Figure 3.5 Connection of leads A. Lead connections B.
  • Page 15: Operation

    MCS300 4 Operation 4.1 General The dehumidifier has three operating modes, see Figure 4.1 . Man: The dehumidifier’s fans, rotor and reactivation heater operate continuously. Auto1: The dehumidifier’s fans, rotor and reactivation heater are started/stopped by the humidistat. Auto 2: The dehumidifier’s fans and rotor operate continuously. The reactivation heater is started and stopped by the humidistat only.
  • Page 16: Start

    MCS300 4.3 Start 4.3.1 Measured values Auto 1 Temp Auto 2 C. Measurement selector D. Operating mode selector Figure 4.2 Control panel The following parameter information is displayed on the control panel: Total operating time Power consumption during a specific period Reactivation temperature Change the parameter display by pressing the measurement selector button on the control panel.
  • Page 17: Manual Operation

    MCS300 4.3.2 Manual operation 1. Reset measurement of power consumption as required, see section 4.3.1, Measured values. 2. Switch the on-off switch to position I, see Figure 4.1 . 3. Select the Man operating mode by pressing the operating mode selector button.
  • Page 18: Service And Maintenance

    NOTE! It is recommended to contact Munters for service or repair. Operating faults can occur if the unit is maintained insufficiently or incorrectly. Munters Service can offer a service plan adapted to suit the conditions of a specific installation. See contact addresses on the back page of this manual.
  • Page 19: Filter Replacement

    MCS300 5.3 Filter replacement Figure 5.1 Filter removal 1. To remove the filter, slide the filter grating upwards, then downwards and out according to Figure 5.1 . 2. Clean filter housing and grating before fitting the new filter. Service and maintenance...
  • Page 20: Fault Tracing

    MCS300 6 Fault tracing 6.1 General This chapter is intended to facilitate basic fault tracing and provide instructions on actions to remedy problems. 6.2 Safety W W W ARNING! ARNING! ARNING! Always unplug the dehumidifier before any maintenance or repair work is carried out. In case of a fixed installation where the plug is being replaced by a circuit breaker, the power must be switched off and the circuit breaker locked.
  • Page 21: Fault Tracing List

    MCS300 6.3 Fault tracing list Go through the following fault tracing list below before contacting Munters’ product service department. The list provides help in identifying types of faults that are easy to remedy without the assistance of specially trained personnel...
  • Page 22: Capacity Diagrams

    MCS300 7 Capacity diagrams Approximate capacity in kg/h. For detailed information, please contact your nearest Munters office or refer to Munters’ DryCap program. kg/h 230V, 50 H z 80 % R H 60 % R H 40 % R H °C...
  • Page 23: Fan Diagrams

    MCS300 8 Fan diagrams 115/230V, 50 Hz Figure 8.1 Fan diagrams (115/230V, 50 Hz) 115V/ 60 H z Figure 8.2 Fan diagrams (115V, 60 Hz) A. Static pressure (Pa) C. Process air B. Airflow m D. Reactivation air Fan diagrams...
  • Page 24: Sound Data

    MCS300 9 Sound data See Figure 3.2 for closed airflow system example. Correction of Kok at ISO-band No./Center Frequency (Hz) Noise Model dB(A) Path 1/63 2/125 3/250 4/500 5/1000 6/2000 7/4000 8/8000 69,3 -23,8 -11,7 -9,9 -10,5 -17,5 -19,3 -22,3...
  • Page 25: Technical Specification

    MCS300 10 Technical specification Technical data MCS300 230V/50 Hz 115V/50 Hz 115V/60 Hz Process air System airflow (m³/h) Nominal airflow with ducting (m³/h) Minimum available static pressure (Pa) Reactivation air Nominal airflow with ducting (m³/h) Minimum available static pressure (Pa)
  • Page 26: Scrapping

    MCS300 11 Scrapping The unit must be scrapped in accordance with applicable legal requirements and regulations. Contact your local authorities. The rotor material is not combustible, and should be deposited like glass fibre materials. If the rotor has been exposed to chemicals that are dangerous to the environment the risk must be assessed.
  • Page 27: Contact Munters

    Energieweg 69 Tel: +31 172 43 32 31 NL-2404 HE Alphen a/d Rijn vochtbeheersing@munters.nl www.munters.nl Tel.: + 48 58 305 35 17 POLAND Munters Sp. z o.o. ul. Swietojanska 55/11 Oddzial w Polsce 81-391 Gdynia dh@munters.pl Air Treatment www.munters.com.pl SPAIN Munters Spain SA Europa Epresarial.
  • Page 28 www.munters.com...
