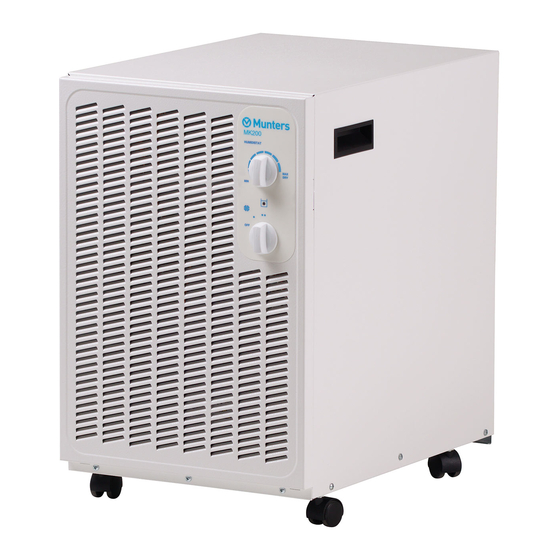

- Page 1 Operation Manual Dehumidifier MK200 Valid from 15.10.2018...
-
Page 2: Table Of Contents
Operation Manual MK200 Table of content 1. Important user information ................... 3 1.1 Intended use of equipment ................... 3 1.2 Warranty and obligations ..................3 1.2.1 Note ........................3 1.2.2 Safety ........................ 3 2. Installation ......................4 2.1 Electrical connection ..................... 4 2.2 Operation ...................... -
Page 3: Important User Information
1. Important user information 1.1 Intended use of equipment Munters dehumidifiers are intended to be used for the dehumidification of air. All other uses of the equipment, or use which is contrary to the instructions given in this manual, can cause personal injury and/or machine damage. -
Page 4: Installation
Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. If the supply cord is damaged, it must be replaced by the manufacturer, Munters Service or similarly qualified persons in order to avoid a hazard. -
Page 5: Operation
Do not cause damage to the part of the cooling unit that is near the heat exchanger. 3. Placement of dehumidifier MK200 dehumidifiers are easy to move around, all you need to have is a power source for 220/240V, but bear in mind the following: The dehumidifier should not be placed near radiators or other heat sources or exposed to direct sunlight, as it will reduce performance. -
Page 6: Automatic Shut Off And Float Switch
Operation Manual MK200 3.2 Automatic shut off and float switch When the water tank is full, the dehumidifier is shut off automatically. The indicator light at the front of the dehumidifier will switch to red to show that the water tank should be emptied. -
Page 7: Humidity Control
3.4 Humidity Control MK200 dehumidifier is fitted with a built in humidity control, which is set to the desired level of humidity. The control registers the current level of humidity and ensures that the dehumidifier is turned on and off automatically. -
Page 8: Operation Principle
Munters Service. Dehumidifier cleaning The front grill could be cleaned using a rap or vacuum cleaner. If the inside of the unit is dirty it has to be cleaned immediately. In this case please contact your Munters customer service. -
Page 9: Trouble Shooting
- There is a too low temperature in the room – heat the room LED flashing green If none of the above works, please get in contact with Munters-Service. Tel.: +49 40 879 690-0 E-Mail: service.dh@munters.de... -
Page 10: Technical Data Ansd Warranty
Operation Manual MK200 5. Technical data ansd warranty 5.1 Technical data Moisture removal capacity at 20°C 60% r.H.: 6.8 L/24h Operating range Temperature: 2 – 35 °C Humidity: 30 – 90 % r.H. Fan steps: Airflow, Pos I (●) / Pos. II (●●): ca.196 / 342 m3/h... -
Page 11: Wiring Diagram
Operation Manual MK200 6. Wiring diagram... -
Page 12: Explosion Drawing
Operation Manual MK200 7. Explosion drawing... -
Page 13: Spare Parts List
Operation Manual MK200 8. Spare parts list Part Article number Bottom chassis 9073700400 Baffle 9073700401 Fan bracket 9073700402 Filter carrier 9073700403 Front grid 9073700404 Casing 9073700405 Permanent filter 9073700406 Wheel 9073700407 Axle 9073700408 Evaporator 9073700409 Condenser 9073700410 Drip tray 9073700411... -
Page 14: Ce Certificate
Operation Manual MK200 9. CE Certificate EC – Declaration of Conformity MUNTERS Munters GmbH Hans-Duncker-Straße 14 D-21035 Hamburg Tel. +49 40 / 73 416 - 01 hereby declares, that the units mentioned below, Dehumidifier type MK 200 are in conformity with the following directives:...
