Page 1: Instruction Manual
Gas Hob Instruction Manual Model number(s): RH60GH402B For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk IMPORTANT: RETAIN FOR FUTURE REFERENCE... -
Page 2: Table Of Contents
Contents Safety Instructions ………………………………………. Product Overview ………………………………………. Positioning ………………………………………. Installation ………………………………………. 9-13 Usage ………………………………………. 14-17 Cleaning & Maintenance ………………………………………. 18-20 Trouble shooting ………………………………………. 21-23 Connection to the mains ………………………………………. Guarantee ………………………………………. Technical specification ………………………………………. Notes ………………………………………. For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am –... -
Page 3: Safety Instructions
Safety Instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand... - Page 4 Safety Instructions • You are recommended to contact the Technical Assistance Service to convert to another type of gas. Before installing your new hob, ensure that it is being installed according to the assembly instructions. • This appliance can only be installed in a well-ventilated place in accordance with existing regulations and ventilation specifications.
- Page 5 Safety Instructions • Components inside the appliance may have sharp edges. Wear protective gloves. • Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. • Never use strong and abrasive cleaning agents as they will cause surface damage.
-
Page 6: Product Overview

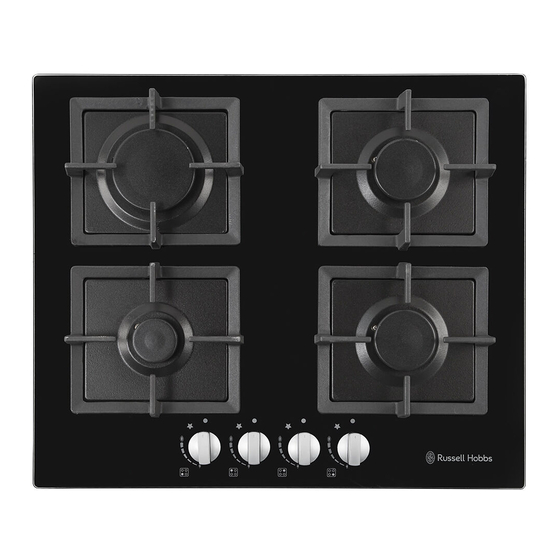

Product overview 1. Hob 4. 4 x Pan support 2. Burners 5. 4 x Sponge A. Rapid burner 6. 4 x Bracket B. Semi rapid burners 7. 4 x Screws C. Auxiliary burner 8. 4 x Injector D. Semi rapid burners 9. -
Page 7: Positioning
Positioning • This appliance is to be installed in a counter top. • Avoid damaging the product during installation. • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works correct when installed. -
Page 8: Positioning
Positioning • You must have a gap of a minimum gap of 25mm and a maximum gap of 74mm between the underside of the appliance and any surface below it. 45mm 25mm (min.) Note: • Select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the appliance. -
Page 9: Installation
Installation Preparation & installation Ensure that there are no electric wires, gas or water pipes in the area where holes are to be made. Components of the appliance may have sharp edges. Wear protective gloves. 1. Ensure that that there is an electrical plug socket and gas supply within adequate distance of the hob after it has been installed. -
Page 10: Gas Connection
Installation Gas connection • Gas appliances must be disconnected and installed by a Gas Safe registered engineer. This scheme has replaced the Corgi registration scheme. For details visit www.gassaferegister.co.uk or call 0800 408 5500. Failure to do so will invalidate your guarantee, liability claims and could lead to criminal prosecution. - Page 11 Installation • If there is no suitable circuit and a fused switch, they must be installed by a qualified electrician before the hob is connected. • Do not use adaptors, multiple sockets and/or extension leads. • During installation, please ensure that insulated cables are used. An incorrect connection might damage your appliance and will void the manufacturer’s guarantee.
- Page 12 Installation Gas adjustment Before any adjustment is started the gas and electricity supply to the appliance must be turned off. Change the injector of the burners • Remove the pan support, burner cover and flame spreader • Unscrew the injector using a spanner and replace it with the stipulated injector for the new gas supply.
- Page 13 Installation • Refit the dial and make sure that the flame does not go out by quickly turning from maximum flame to minimum flame. If it does then remove the dial and make further adjustments to the gas flow, testing it again once the adjustment has been made.
-
Page 14: Usage
Usage Note: The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out. Dials The appliance has 4 dials and these control the 4 burners, at the bottom left of each dial there is an illustration that shows the burner that each dial controls: Each dial has 4 icons, these are explained below: Gas off... - Page 15 Usage 3. You must keep the dial depressed so that the automatic ignition for the burner operates. 4. You should hold down the control knob for 15 seconds after the flame has ignited on the burner. If after 15 seconds the burner has not lit, stop operating the device and wait at least 1 min before trying to ignite the burner again.
- Page 16 Usage Pans & energy saving The following advice is to prevent damage to pans and help you save energy: Suitable pan sizes (diameter) Burners Minimum diameter (mm) Maximum diameter (mm) Rapid 200mm 240mm Semi-rapid 160mm 180mm Auxiliary 120mm 160mm Always use pans that are the right Do not use small pans on large size for each burner to avoid burners, the flame should never...
-
Page 17: Usage
Usage Cooking recommendations: The following advice is to help you get the best cooking performance/results: Burner Very high, High Medium Reheating and keeping things hot: Boiling, steaming, griddling, cooked and pre-cooked dishes. Rapid toasting, paellas, Escalopes, burner steaks, omelettes, frying. Rice, white sauce Steaming: fish, and ragout. -
Page 18: Cleaning & Maintenance
Cleaning and Maintenance: Important notes: • The appliance will become hot during operation, allow the appliance to cool down before cleaning. • Do not use any high-pressure cleaners or steam cleaners. • Wash new sponge cloths thoroughly before use. • Follow all instructions and warnings included with the cleaning agents. How to clean Observe the information in the table below to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. -
Page 19: Cleaning And Maintenance
Cleaning and Maintenance: How to clean: • After each use, clean the surface of the respective burner parts once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. -
Page 20: Cleaning & Maintenance
Cleaning and Maintenance: Cleaning the burners: 1. Remove the burner cover and spreader by pulling them upwards and away from the hob. 2. Soak them in hot soapy water. 3. Clean them before drying them carefully, ensuring that the flame holes are clean and completely dry. -
Page 21: Trouble Shooting
Trouble Shooting: Problem Solution The plug is not plugged in Connect the appliance to the electricity supply Power cut or faulty fuse Check whether other kitchen appliances are working or check in the fuse box to make sure that the fuse for the Not ignited appliance is working The burner cover is badly assembled... - Page 22 Trouble Shooting: Problem Solution The flame failure device is clogged Clean the flame failure device Food that is being cooked has boiled over and extinguished the flame Turn off the burner, wait for 1 minute and reignite the zone Flame goes out when in use The burner cover is badly assembled Assemble the burner cover correctly...
-
Page 23: Trouble Shooting
Trouble Shooting: Problem Solution The holes in the burner spreader are clogged or the igniter is clogged Clean the burner spreader and igniter Orange flame Yellow/orange flame This is caused by the presence of dust in the atmosphere, spilt liquids, etc. A different type of gas is being used Check gas supply Gas leakage... -
Page 24: Connection To The Mains
Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC220 - 240V ~ 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. For UK use only –... -
Page 25: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Product Care with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Product Care. -
Page 26: Technical Specification
Technical Specification Model number RH60GH402B Rated Voltage 220V – 240V ~ 50Hz External Dimensions(HxWxD) 95mm x 590mm x 510mm For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm... -
Page 27: Notes
Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk... - Page 28 For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday – Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
