Page 1: Electric Hob
Electric Hob Instruction Manual Model number(s): RH60EH401B For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk IMPORTANT: RETAIN FOR FUTURE REFERENCE... -
Page 2: Table Of Contents
Contents Safety Instructions ………………………………………. Product Overview ………………………………………. Positioning ………………………………………. Installation ………………………………………. 9-10 Usage ………………………………………. 11-15 Cleaning & Maintenance ………………………………………. 16-17 Trouble shooting ………………………………………. Guarantee ………………………………………. Technical specification ………………………………………. Notes ………………………………………. 21-23 For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am –... -
Page 3: Safety Instructions
Safety Instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand... - Page 4 Safety Instructions • This appliance can only be installed in a well-ventilated place. • This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. • Do not tamper with the appliance's interior. If necessary, call our customer helpline •...
-
Page 5: Safety Instructions
Safety Instructions • Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the customer services. • Components inside the appliance may have sharp edges. Wear protective gloves. • Saucepans may suddenly move due to liquid between the pan base and the hotplate. -

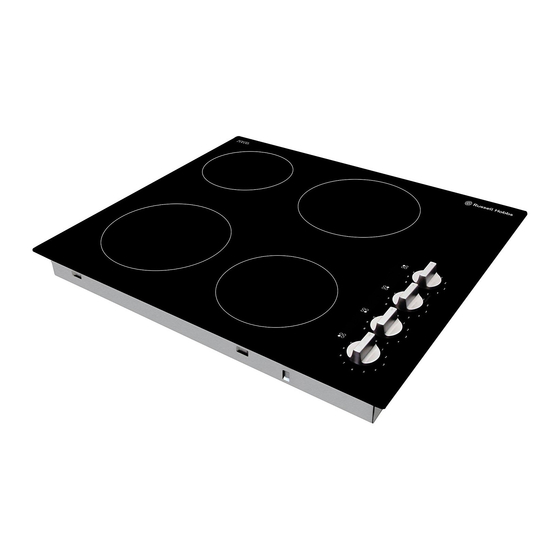

Page 6: Product Overview
Product overview 1. Hob Dials 2. Cooking zones 4 x Brackets 1200W (max) 4 x Screws 1800W (max) 1800W (max) 1200W (max) Unit & Spare Parts If any of the above parts are missing please contact the customer service team on 0345 208 8750 or visit www.productcare.co.uk For Customer Services &... -
Page 7: Positioning
Positioning • This appliance is to be installed in a counter top. • Avoid damaging the product during installation. • The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works correct when installed. -
Page 8: Positioning
Positioning • Be sure the thickness of the work surface is at least 30mm • You must have a gap of a minimum gap of 25mm between the underside of the appliance and any surface below it. Note: • Select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the appliance. -
Page 9: Installation
Installation Preparation & installation Ensure that there are no electric wires, gas or water pipes in the area where holes are to be made. Components of the appliance may have sharp edges. Wear protective gloves. 1. Ensure that that there is an electrical plug socket within adequate distance of the hob after it has been installed. -
Page 10: Electrical Connection
Installation Electrical connection • WARNING- THIS APPLIANCE MUST BE EARTHED • This appliance is designed to be connected to a 220-240V~50Hz AC electricity supply. • Before proceeding with the electrical connection, verify that the current carrying capacity of the system and the isolator / main switch is adequate for the maximum power rating of the hob. -
Page 11: Usage
Usage Dials The appliances has 4 dials and these control the 4 cooking zones, at the top left of each dial there is an illustration that shows the cooking zone that each dial controls. The icons around each dial are explained below: 0 - off 1 - Minimum power level 11 -Maximum power level... -
Page 12: Power Levels
Usage Power levels The settings below are guidelines only, the exact setting you will require will depend on several factors, including your cookware and the amount you are cooking. Experiment with the hob to find the settings that best suit you. Heat setting Suitability Delicate warming for small amounts of food... - Page 13 Usage To use a cooking zone Warnings: • When it is first used, it is normal for the cooking zone to give off odours; this does not pose any risk and does not indicate a malfunction; they will disappear in time. •...
- Page 14 Usage Pans & energy saving The following advice is to prevent damage to pans and help you save energy: Zones Suitable pan sizes (diameter) 1200W (max) 160mm 1800W (max) 200mm Do not use small pans on large Always use pans that are the zones right size for each zone Do not cook without a lid or...
-
Page 15: Cooking Recommendations
Usage Cooking recommendations: The following advice is to help you get the best cooking performance/results: Zone Very high, High Medium Boiling, steaming, griddling, Reheating and keeping things hot: toasting, paellas, Asian food cooked and pre-cooked dishes. (wok). 1800W (max) Rice, white Escalopes, steaks, omelettes, Steaming: fish, sauce and... -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance: Important notes: • The appliance will become hot during operation, allow the appliance to cool down before cleaning. • Do not use any high-pressure cleaners or steam cleaners. • Wash new sponge cloths thoroughly before use. • Follow all instructions and warnings included with the cleaning agents. How to clean Observe the information in the table below to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. -
Page 17: Causes Of Damage
Cleaning and Maintenance: How to clean: • After each use, clean the surface of each zone once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. •... -
Page 18: Trouble Shooting
Trouble Shooting: Problem Solution The plug is not plugged in Connect the appliance to the electricity supply Power cut or faulty fuse No power Check whether other kitchen appliances are working or check in the fuse box to make sure that the fuse for the appliance is working Sliding or dragging pans may scratch the glass Always lift pans off the hob... -
Page 19: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Product Care with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Product Care. -
Page 20: Technical Specification
Technical Specification Model number RH60EH401B Rated Voltage 220V – 240V ~ 50Hz External Dimensions(HxWxD) 55mm x 590mm x 520mm For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm... -
Page 21: Notes
Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk... - Page 22 Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk...
- Page 23 Notes For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk...
- Page 24 For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday – Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
