GE J2007003L064 Quick Start Manual

GE
Critical Power

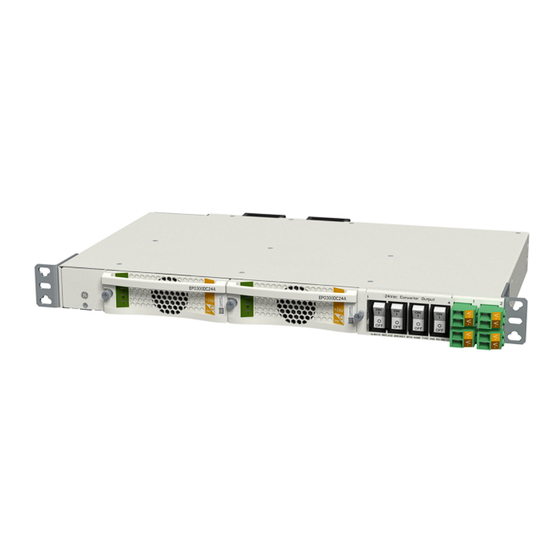

SPS Stackable Slimline Converter Shelf
Models: J2007003L064
This converter shelf provides four +24V outputs. The shelf is powered by adjacent SPS Stackable rectifier shelves.
Install below initial SPS rectifier shelf J2007003L051C (with controller).
No vertical spacing is required. Provide 2 inch minimum clearance at back of shelf for converter airflow.
Refer to Slimline Power System Brochure for details and accessories.
Tools required:
Wire cutters and strippers
Cable crimpers
Step 1 - Mount Shelf
1. Reposition mounting ears as required - 4 screws each.
Torque to 25 in-lb (2.8Nm) - Phillips screwdriver.
2. Install Inter-Shelf brackets between adjacent shelves (optional).
Torque to 25 in-lb (2.8Nm) - Phillips screwdriver.
3. Attach shelf to the frame using a minimum of four screws
(two on each side) - 12-24 (provided).
Torque to 35 in-lb (4Nm) - 5/16" socket.
Step 2 - Connect Chassis Ground
Lug Landings: #10 double-hole on 5/8-inch center (lugs not
provided)
Some applications may rely on frame mounting screws for shelf
ground omitting the chassis ground cable.
Minimum 10 AWG wire is recommended.
Torque 10-32 screws to 30 in-lb (3.4Nm) - 5/16" socket.
Step 3 - Connect DC Input
Connections are under rear covers.
1. Install inter-shelf buses joining -48V and RETURN outputs of adjacent shelves.
Four 1/4-20 nuts per bus (provided)
Torque to 65 in-lb (7.3 Nm) - 7/16" socket

Quick Start Guide

Torque wrench - 0-65 in-lb (0-10Nm)
Sockets - 5/16", 7/16, etc.
SPS J2007003 L064 - Quick Start Guide
Document 850047442 r01 2015 July
SPS Stackable System - example
Screwdrivers - Philips #1 and #2, Flat small
2 Adjacent
Shelves
Chassis Ground
Bus Connection
Inter-shelf bus
-48V Connections
covers removed
2 Adjacent Shelves
Mounting Ears
Inter-Shelf Bracket
RETURN Connections
covers shown
1 1
