Fortinet FortiGate 30E Information page 3

Logo
Green: The unit is on
Off: The unit is off

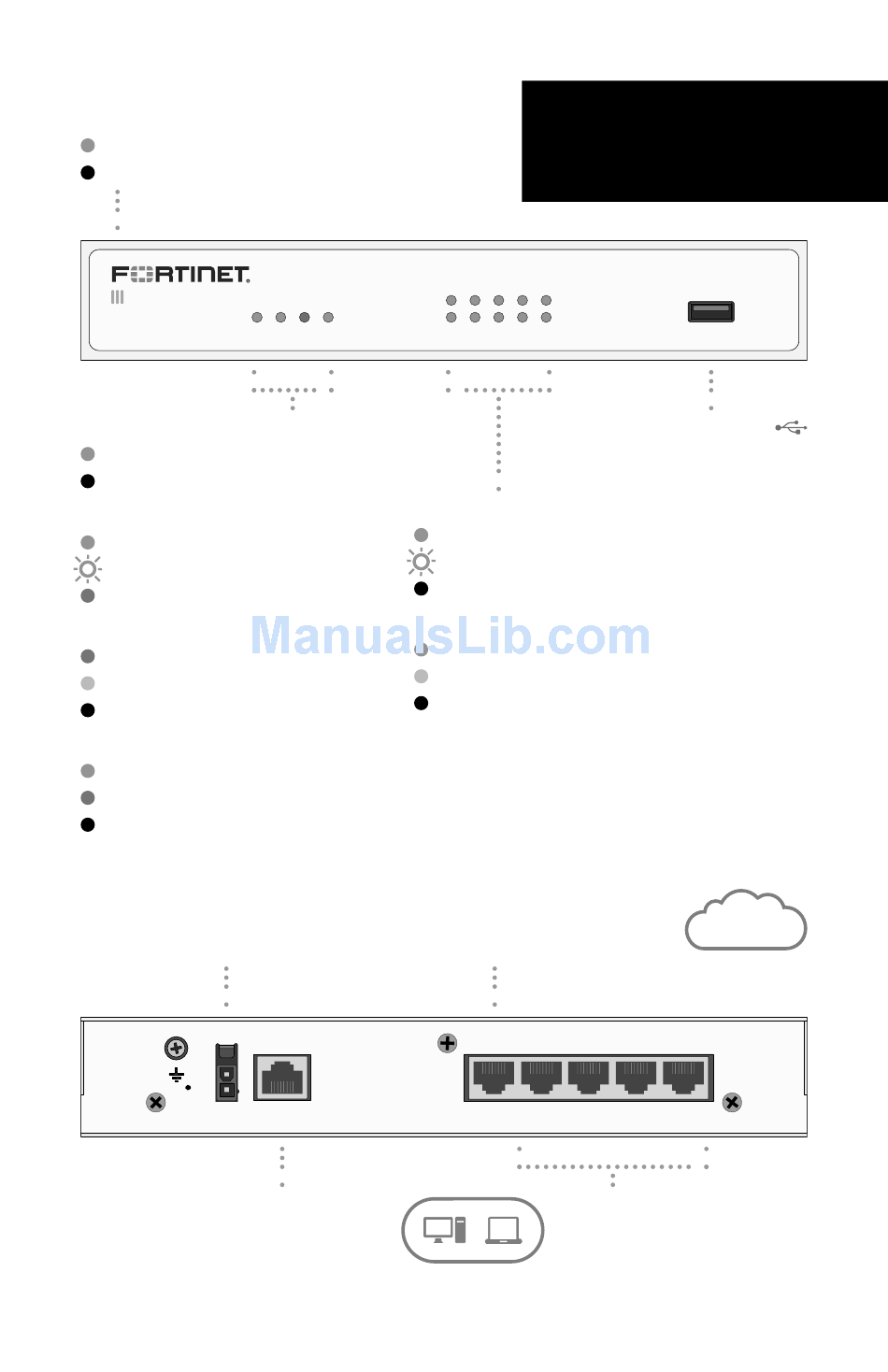

FortiGate 30E
PWR
PWR
Green: The unit is on
Off: The unit is off
STA
Green: Normal
Flashing Green: Booting up
Red: The unit has a major alarm
ALARM
Red: The unit has a major alarm
Amber: The unit has a minor alarm
Off: The unit is operating normally
HA
Green: Operating in an HA cluster
Red: HA failover
Off: Not in an HA cluster
Power
12V DC
100-240V AC, 50-60Hz adapter
DC+12V CONSOLE
Console (RJ-45)
Optional connection to the
management computer
Provides access to the CLI
STA ALARM HA
Ethernet Ports Link/Act
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Ethernet Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Not connected or connected at 10Mbps
FortiGate 30E
1 2 3 4 WAN
LINK/ACT
SPEED
WAN Port (RJ-45)
Gigabit Ethernet port for
Internet connection
WAN 4 3
Ethernet Ports 1 - 4 (RJ-45)
Gigabit Ethernet ports for local
network connection
USB
USB (USB A)
USB 3.0 server port
Internet
2 1
