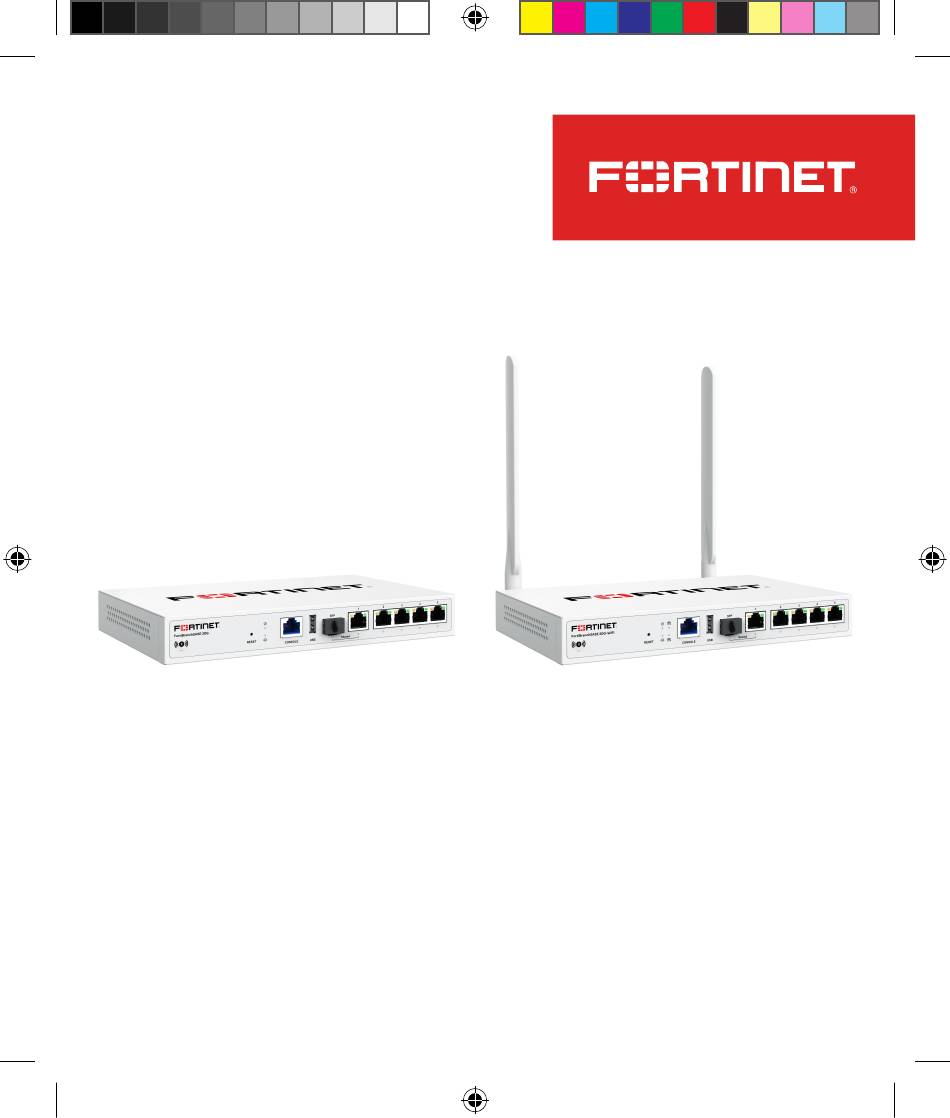

- Page 1 FortiBranchSASE 20G/20G-WiFi FBS-20G/FBS-20G-WiFi QuickStart Guide FortiBranchSASE-20G and 20G-WiFi QSG.indd 1 FortiBranchSASE-20G and 20G-WiFi QSG.indd 1 10/22/2024 1:19:30 PM 10/22/2024 1:19:30 PM...
- Page 2 Copyright © 2024 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
- Page 3 Register for Support Register your Fortinet product to receive: • Technical Support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalités du produit • Protection contre de nouvelles menaces La reistrazione ti permette di usufruire di: •...
- Page 4 Package Contents FortiBranchSASE Device QuickStart Guide 12VDC/2A Power Adapter (DC end with 2-pin locking plug) WiFi Antennas (FBS-20G-WiFi Only) Wall-Mounting Kit Rubber Feet (2 Wall-Mount Brackets, 4 Bracket Screws, 2 Wall-Mount Screws, and 4 Wall-Mount Anchors) FortiBranchSASE-20G and 20G-WiFi QSG.indd 4 FortiBranchSASE-20G and 20G-WiFi QSG.indd 4 10/22/2024 1:19:33 PM 10/22/2024 1:19:33 PM...
- Page 5 FBS-20G Front Panel Bluetooth Button Bluetooth LED SFP Port SFP LED RESET/Default Key GbE LEDs 1-5 Power LED WAN LEDs FortiSASE LED GbE Ports 1-5 (RJ45) Console Port (RJ45) FortiBranchSASE-20G and 20G-WiFi QSG.indd 5 FortiBranchSASE-20G and 20G-WiFi QSG.indd 5 10/22/2024 1:19:33 PM 10/22/2024 1:19:33 PM...
- Page 6 FBS-20G Rear Panel Power Input (A 12VDC/2A power adapter with a 2-pin locked plug is required.) Grounding Screw FortiBranchSASE-20G and 20G-WiFi QSG.indd 6 FortiBranchSASE-20G and 20G-WiFi QSG.indd 6 10/22/2024 1:19:33 PM 10/22/2024 1:19:33 PM...

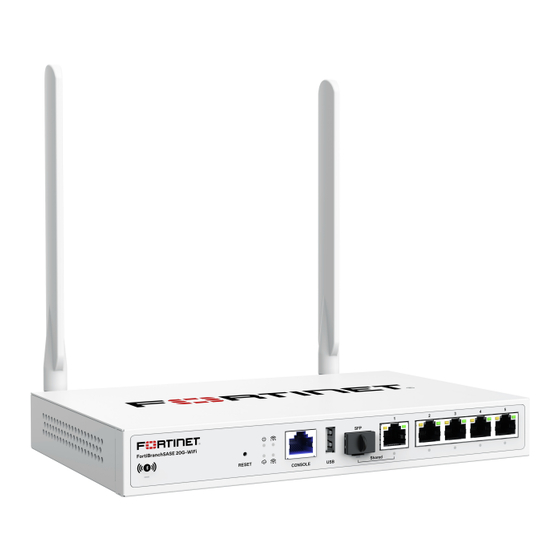

- Page 7 FBS-20G-WiFi Front Panel Bluetooth Button SFP Port Bluetooth LED SFP LED RESET/Default Key GbE LEDs 1-5 Power LED WAN LEDs FortiSASE LED GbE Ports 1-5 (RJ45) Console Port (RJ45) 2.4G WiFi LED 5G WiFi LED FortiBranchSASE-20G and 20G-WiFi QSG.indd 7 FortiBranchSASE-20G and 20G-WiFi QSG.indd 7 10/22/2024 1:19:34 PM 10/22/2024 1:19:34 PM...
- Page 8 FBS-20G-WiFi Rear Panel Power Input (A 12VDC 2A power adapter with a 2-pin locked plug is required.) Grounding Screw 2.4G/5G Antenna Connectors FortiBranchSASE-20G and 20G-WiFi QSG.indd 8 FortiBranchSASE-20G and 20G-WiFi QSG.indd 8 10/22/2024 1:19:34 PM 10/22/2024 1:19:34 PM...
- Page 9 LED Indicators GbE Ports 1—5 Network Capacity Bluetooth (Blue/Green) LEDs Green Solid: Configuration window is (Green/Amber) open. Green Solid: 1G network connected Flashing: : Configuration in progress. Blue Green Flashing: 1G network activity Solid: Configuration completed. The Blue LED is to turn off in five seconds. Green Off: 1G network NOT connected Off: No Bluetooth configuration is allowed.
- Page 10 Buttons and Ports Bluetooth Button: CONSOLE Port (RJ45): • Press and hold for less than 5 • CLI management computer seconds, ignored; interface • Press and hold for more USB 2.0 Port: than 5 seconds to turn on the Bluetooth LED and open •...
- Page 11 Bracket Mounting Holes & Rubber Feet Connectors for WiFi Antennas (for FBS-20G-WiFi only) Dents and holes for Rubber Feet for desktop placement and for Wall- Mounting Bracket screws. FortiBranchSASE-20G and 20G-WiFi QSG.indd 11 FortiBranchSASE-20G and 20G-WiFi QSG.indd 11 10/22/2024 1:19:34 PM 10/22/2024 1:19:34 PM...
- Page 12 Basic Connection FortiGate FortiBranchSASE Port1/Port2 1. Insert one end of the Ethernet cable into Port1 or Port2 of your FortiBranchSASE device. 2. Insert the other end of the Ethernet cable into the LAN port of your FortiGate appliance, and ensure that the FortiGate interface provides DHCP server service to issue an IP address to the FortiBranchSASE when connected to Port1 or Port2 of the FortiBranchSASE.
- Page 13 6. Select a target interface, set it to “static” mode, configure the static IP address, and click Save. Alternatively, FortiBranchSASE 20G–WiFi comes with a default wireless LAN management interface. You can log on to the interface at http://192.168.200.99, using the device’s serial number as the network SSID.
- Page 14 Installation The FortiBranchSASE 20G series devices are designed to be placed on a desktop, or mounted on a wall using the provided Wall-Mounting Brackets. Place on top of a desktop or flat surface 1. Attach the rubber feet to the four dents on the bottom of the unit.
- Page 15 Mount on a wall 1. Attach the WiFi Antennas to the unit. (FBS-20G-WiFi only) 2. Use the four small screws to fasten the Wall-Mounting Brackets to the bottom of the unit. 3. Use the unit with the Wall-Mounting Brackets as reference to mark the locations on the wall.
- Page 16 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C. Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude). Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...
- Page 17 Regulatory Notices L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio Federal Communication Commission (FCC) – USA exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: This device complies with Part 15 of FCC Rules.
- Page 18 Directives and/or spectrum regulation. Any Fortinet products not Suomi obtained directly from Fortinet or Fortinet’s authorized partners may Tämä tuote on direktiivin 2014/53/EU mukainen. not comply with EU Directives and Fortinet makes no assurances for such products. Svenska Denna produkt överensstämmer med direktiv 2014/53/EU.
- Page 19 限用物質含有情況表 (RoHS Table) 請到以下 網址下載: 2402–2480 MHz less than 20 dBm https://www.fortinet.com/bsmi 2412–2472 MHz less than 20 dBm 5150–5250 MHz less than 23 dBm 5250–5350 MHz less than 23 dBm* 警告：...
- Page 20 號或使 用者均不得擅自變更頻率、加大功率或變更原設 計之特性及功能。低功率射頻器材之使用不得影響飛航 安全及干擾合法通信；經發現有干擾現象時，應立即停 用，並改善至無干擾時方得繼續使用。前述合法通信， 指依電信管理法規定作業之無線電通信。低功率射頻器 材須忍受合法通信或工業、科學及醫療用電波輻射性電 機設備之干擾。 1.使用此產品時應避免影響附近雷達系統之操作。 2.高增益指向性天線只得應用於固定式點對點系統。 電磁波曝露量MPE標準值1mW/cm2，送測產品實測值為： 0.58 mW/cm2，建議使用時至少距人體 20 cm. For Product License Agreement/EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/ assets/legal/EULA.pdf FortiBranchSASE-20G and 20G-WiFi QSG.indd 20 FortiBranchSASE-20G and 20G-WiFi QSG.indd 20 10/22/2024 1:19:47 PM 10/22/2024 1:19:47 PM...
- Page 21 FortiBranchSASE-20G and 20G-WiFi QSG.indd 21 FortiBranchSASE-20G and 20G-WiFi QSG.indd 21 10/22/2024 1:19:47 PM 10/22/2024 1:19:47 PM...
- Page 22 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
