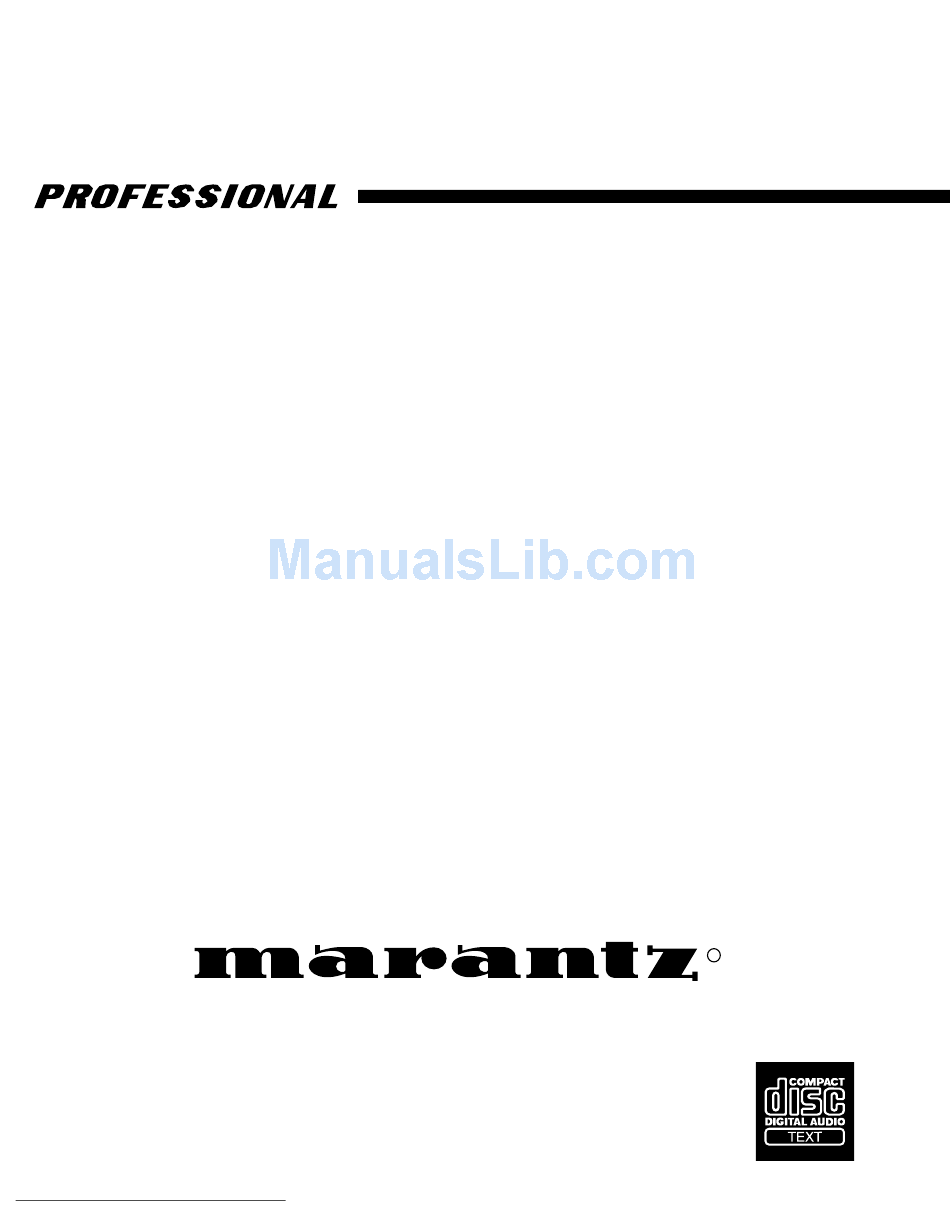

- Page 1 Model PMD330/PMD331/PMD340 User Guide Compact Disc Player Downloaded From Disc-Player.com Marantz Manuals...
-
Page 2: Laser Safety
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. This Class B digital apparatus meets all Cet appareil numérique de la Classe B respecte requirements of the Canadian Interference- toutes les exigences du Règlement sur le materiel Causing Equipment Regulations. brouilleur du Canada. Downloaded From Disc-Player.com Marantz Manuals... - Page 3 (including amplifiers) that produce heat. 11. Power Sources — The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Downloaded From Disc-Player.com Marantz Manuals...
-
Page 4: Table Of Contents
Fader Start ................................... 19 Troubleshooting ................................19 Specifications ................................⁄ ⁄ ⁄ ⁄ ⁄ Figures ..................................¤ ¤ ¤ ¤ ¤ Connection .................................. ‹ ‹ ‹ ‹ ‹ External Dimensions ..............................‹ ‹ ‹ ‹ ‹ Downloaded From Disc-Player.com Marantz Manuals... -
Page 5: Features
Accordingly, a CD-TEXT disc can be played on any conventional CD player, but the text data can be viewed only if the disc is played on a player that supports the CD-TEXT function, such as the PMD330/331/340. The player determines automatically whether the current disc is a conventional CD or a CD-TEXT disc. -
Page 6: Preparation
Preparation Introduction Compact Discs Thank you for purchasing the Marantz PMD330/PMD331/ - Handle discs carefully and do not damage or scratch the data side. PMD340 Compact Disc Player. - To protect the disc, avoid placing it in the following locations: Please read these operating instructions carefully. -
Page 7: Name And Operation Of Each Part
RC5. * Refer to the figures on the pages at the back of this user’s guide. The callout numbers on the figures correspond to those found in the text. Downloaded From Disc-Player.com Marantz Manuals... - Page 8 This displays the playing time, various playback modes, etc. (Disc tray open/close) Press this button to open the disc tray w. Place a compact disc on the tray with the label facing up, and then press this button again to close the tray. Downloaded From Disc-Player.com Marantz Manuals...
- Page 9 Press this button to search for the next index. Each time the INDEX + button is pressed, the INDEX number (Fast forward) that is displayed increases by “1”. When playing a CD, press this button to scan forwards quickly through the current track. Downloaded From Disc-Player.com Marantz Manuals...
- Page 10 0 % (no change). Displays the disc track number. (See also page 10.) INDEX PITCH + (PMD330 only) Displays the disc index number. Press this button to increase the CD PITCH speed. (maximum: +12%) C Operation display Displays the play mode that is set.
-
Page 11: Playing A Cd
!7 is The changes in the playback state when the the displayE, the 10-segment bar indicates the playback po- pressed are illustrated below. sition. Press Press Press Press PAUSE PAUSE STOP PLAY PLAY Downloaded From Disc-Player.com Marantz Manuals DISC... -
Page 12: Stopping Playback
- If the PITCH/SEARCH is turned quickly, the search speed Disc Remaining Time changes through three stages until a maximum of 75 frames per second is reached. Tip: One frame contains data for about 1/75 of a second of play- back. Downloaded From Disc-Player.com Marantz Manuals... -
Page 13: Using The Pitch Controls
Press the PITCH ON/OFF button @6 , and the playback speed returns to normal. Notes: - The right side of the pitch indicator F shows the positive pitch speed. - The left side of the pitch indicator F shows the negative pitch speed. Downloaded From Disc-Player.com Marantz Manuals... -
Page 14: Using The A-B Repeat Function
Restoring the Normal Playback Speed Procedure 1. Press the PITCH ON/OFF button @6 and the playback speed returns to normal. Downloaded From Disc-Player.com Marantz Manuals... -
Page 15: Playback Using The Program Function
/EXIT button !3 . 5. Press the /EXIT button !3 to exit the playback mode menu. - Program play can be switched off via the MODE menu. button ! 7 is pressed, normal playback begins. 6. When the Downloaded From Disc-Player.com Marantz Manuals... -
Page 16: Playback Using The Cue Function
! 7 . Both the CUE and the button ! 7 shortly the can be released now and the player will continue playback. CLEAR CLEAR Press & hold Press Release PAUSE SEARCH PLAY DISC Downloaded From Disc-Player.com Marantz Manuals... - Page 17 Tip: The amount of time the unit waits before if enters the “auto standby” state can be selected in the preset menu: 30 minutes (initial value), 20 minutes, 10 minutes, or 30 seconds. Downloaded From Disc-Player.com Marantz Manuals...
-
Page 18: Playback Modes
Tip: The following playback modes can be selected in combination: single-track playback (“Single”), program playback (“Pro- gram”), random playback (“Random”) and repeat playback (“Repeat”). Downloaded From Disc-Player.com Marantz Manuals... -
Page 19: Synchro Recording
CD Sync start 1856 RC5 codes. Program 2041 CD Sync stop 1857 Pitch On/Off 2037 Open/Close 2045 Time 2011 * Remote control codes that are marked with an asterisk are not supported by the PMD330. Downloaded From Disc-Player.com Marantz Manuals... -
Page 20: Cd-Text Information Display
The TEXT button i can be pressed to cycle through the items shown below. The information that is displayed pertains to the track that is currently playing. Displayed Contents Track Title Performer Song Writer Composer Arranger Message Track Remain Time Bar Downloaded From Disc-Player.com Marantz Manuals... -
Page 21: Using The Preset Menu
English French Spanish German Selects whether or not to restore the original presets. Reset?: * Those items marked with an asterisk can only be selected on the PMD331/PMD340. They are not displayed on the PMD330. Downloaded From Disc-Player.com Marantz Manuals... -
Page 22: Using The Control Port (Pmd331/Pmd340 Only)
TTL (Ii < 20 mA) TALLY GND TALLY COMMON Parallel Control Input/Output Connection Examples When using pin 10 FADER (NORMAL) When using pin 23 FADER (INVERT) FADER(NORMAL) PREVIOUS NEXT FADER(INVERT) PREVIOUS NEXT PLAY PAUSE PLAY PAUSE FADER FADER Downloaded From Disc-Player.com Marantz Manuals... -
Page 23: Fader Start
To enable the input from the fader switch, set preset menu No.16 and then turn the power back on. “Remote:” to “On”. (See also page 17) The disc does not play. Connection to the PMD330 1. Is the power cord connected properly? 2. Is the POWER switch on? DIGITAL... -
Page 24: Specifications
+ 5°C to + 35°C Operating humidity range 5% to 90% (without dew) Due to our continuing efforts to improve our products, the specifications and appearance of this product are subject to change without prior notice. Downloaded From Disc-Player.com Marantz Manuals... - Page 25 Figures Rear and Front Views of the PMD330 DIGITAL ANALOG OUTPUT REMOTE OUTPUT (SPDIF) FADER START (IR) ⁄1 @ 1 @ 2 @ 4 @ 5 @ 6 @ 7 @ 8 CD PLAYER ON/OFF MODE PITCH INDEX PITCH TIME...
-
Page 26: Connection
OPTICAL CD BALANCED Figure 2 External Dimensions 434 mm (17-1/16") 483 mm (19’’) CD PLAYER ON/OFF PITCH MODE INDEX PITCH TIME PROG HEADPHONE LEVEL AUTO TEXT POWER CLEAR ENTER CONTRAST PITCH / SEARCH Figure 3 Downloaded From Disc-Player.com Marantz Manuals... - Page 27 Printed in Japan 99/10 371K851252 (MITa) Downloaded From Disc-Player.com Marantz Manuals...
