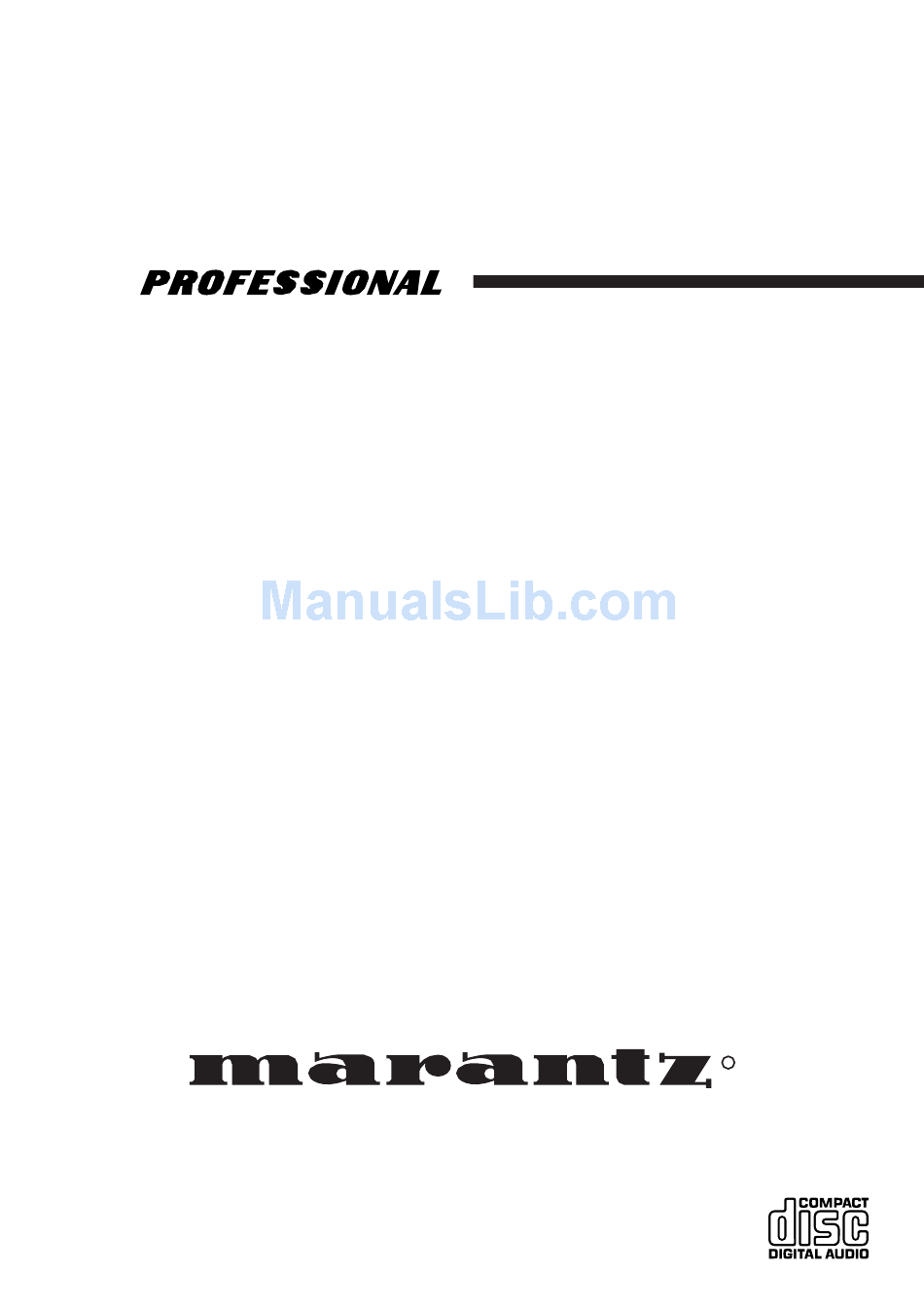

  • Page 1 Model PMD371 User Guide 5 Disc CD Changer...
  • Page 2 NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV (Cable-TV) system installer's attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
  • Page 3 This Class B digital apparatus complies with Cet appareil numérique de la Classe B est label. If you are not sure of the type of power supply to your Canadian ICES-003. conforme à la norme NMB-003 du Canada.
  • Page 4 17.Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna...
  • Page 5: Table Of Contents

    Changing Discs during Play..........................12 Skip and Search Play............................12 Playing Tracks in Random Sequence (Random Play)..................13 Playing the First 10 Seconds of Each Track (Introscan Play)................13 Repeat Play ................................14 Playing Tracks in Any Sequence (Programmed Play) ..................14 Editing for Recording ............................18 Deleted Play................................22...
  • Page 6: General Information

    When a disc has a piece of plastic tape or rental CD label with paste protruded from the edge or when a disc has a trace of such a sticky object, do not attempt to play the disc. If such a disc is played on the CD player, impossibility of taking out the disc or other malfunction may result.
  • Page 7: Placement

    • In a cabinet, allow about 2 inches of free space all • This unit can play only the discs recorded in the around the player for adequate ventilation.
  • Page 8: Functional Overview

    13 14 q q POWER ON/STANDBY button ! ! 0 0 DELETE button Press this switch to turn the power on and press again to Press this button to delete the undesired tracks, discs or turn to stand by. review the deleted selections.
  • Page 9 Functional Overview § ! ! 8 8 (Forward skip/Search) button • Press this button to play from the beginning of a next track. • Press and hold down this button to search for a specific passage in fast forward. ! ! 9 9 (Play/Pause) button •...
  • Page 10: Rear Panel Controls

    REMOTE CONTROL OUT jack of this unit. Plug this cord into a wall AC outlet or the switched AC For the D-BUS cable connection, use supplied remote outlet of amplifier or receiver.
  • Page 11: Remote Control Unit (Rc4300Cc)

    Press this button to program your favorite tracks, disc or review the programmed selections. q POWER button (Pause) button Press this button to turn the power on and press again to turn to stand by. Press this button to interrupt play temporarily and press again to restart play.
  • Page 12 Operation of Remote Control Unit 2. Loading batteries The life of the batteries used with the remote control unit is about 6 months with normal use. Also be sure 1. Remote control to replace batteries earlier when you notice that they The distance between the transmitter of the remote are getting weak.
  • Page 13: Connections

    • Do not plug the AC input cord into the AC outlet when plugging and unplugging connection cords. • Be sure to connect the white plugs to the L(Left) and the red plugs to the R(Right) jacks when making connections with the supplied cords.
  • Page 14: Connecting The Remote Control

    Connections Connecting the Remote Control PMD371 RS232C REMOTE REMOTE DIGITAL OUT DIGITAL OUT ANALOG OUT ANALOG OUT REMOTE CONTROL REMOTE CONTROL CONTROL CONTROL SELECTOR SELECTOR COAX. COAX. OPTICAL OPTICAL EXT. EXT. INT. INT. INT. EXT. REMOTE REMOTE CONTROL CONTROL Cassette Deck...
  • Page 15: Operations

    PROGRAM DELETE INTRO EDIT T.SIZE DIMMER TIME • " " indicator lights up • The unit plays from the first track on the 1st disc to the last track on the 5th disc.
  • Page 16: Changing Discs During Play

    • The first track of selected disc will be played. Disc tray ❖ Searching for a Passage during Play • During playing the disc q, the discs e and r can ∞ § • Press and hold down buttons on the unit or be changed.
  • Page 17: Playing Tracks In Random Sequence (Random Play)

    1 Disc Introscan Play • Press RANDOM button on the unit or the RANDOM • Press INTRO button on the unit or the INTRO button button on the remote control to play tracks in random on the remote control to play the first 10 seconds of sequence.
  • Page 18: Repeat Play

    • Press REPEAT button on the unit or the REPEAT Note : button on the remote control after selecting the • Up to 32 selections can be programmed to play in any desired track. desired sequence. • The track number greater than 99 can not be memorized.
  • Page 19 PROG TRACK • When selecting a track with the NUMERIC buttons, the selected track is stored automatically without pressing the PROGRAM button. 5. Repeat the above steps 2, 3 and 4 until the desired program is completed.
  • Page 20 NUMERIC buttons on the remote (Example) control. When the track 3, 5 and 7 of the disc 1 are programmed and you want to store the track 7 of the disc 3 instead of the track 5 of the disc 1.
  • Page 21 Stop/Clear button on the remote control for more - To Clear One by One than 4 seconds in the program mode. • Each time Stop/Clear button on the unit or the Stop/Clear button on the remote control is pressed in the program mode, the programmed selections are cleared one by one in the opposite sequence.
  • Page 22: Editing For Recording

    EDIT 10 11 12 Note : 13 14 • Up to 30 tracks for auto edit or 32 tracks for manual edit can be edited according to the tape length. AUTO EDIT • It is possible only on the current disc.
  • Page 23 10 11 12 13 14 6. Do the above step 4 to edit the tracks for the side B. • If the PLAY button is pressed after editing the tracks, play starts from the first track of the side A 2.
  • Page 24 Player jumps to the beginning of B side if it was A side or stop playing and clear edit program if it was B side.
  • Page 25 2. Press Play/Pause button of the unit to start A side 2. Press Play/Pause button of the unit to start A side program. Then player starts playing A side program.
  • Page 26: Deleted Play

    ∞ § Press buttons on the unit or the button or the NUMERIC buttons on the remote When there are the undesired discs or tracks, you can control. delete up to 32 selections. (Example) When selecting the track 4. ❖...
  • Page 27 TIME ❖ Checking the Deleted Selections • Each time the DELETE button on the unit or the DELETE button on the remote control is pressed in the delete mode (meaning “DELETE” lights up in the stop mode), the deleted selections will appear in the deleted sequence.
  • Page 28: Selecting A Brightness Of The Display

    Stop/Clear button on the remote control for more - To Recover One by One than 4 seconds in the delete mode. • Each time Stop/Clear button on the unit or the Stop/Clear button on the remote control is pressed in the delete mode, the deleted selections are recovered one by one in the opposite sequence.
  • Page 29: Selecting A Time Display

    13 14 • During random or programmed play, etc., the remaining playing time of the disc may show "- -- : --". • When a track of which number is greater than 30 is programmed, edited or being played, the time...
  • Page 30: External Control (Serial Interface) Rs232C

    Operations ❖ Data Packet External Control (Serial Interface) A packet contains data from 5 to 8 bytes in length. In RS232C serial communication, ASCII code from 00h to 7fh is used. So the HEX data are converted into ASCII code and set to the data packet.
  • Page 31 The unit can be controlled through its infrared IR sensor on the front panel when it receives remote control signals that supports RC-5 signals as shown in the table on the following. These remote control (RC-5) codes can also be used if sent through the RS232C port found on the rear panel of the unit.
  • Page 32: Troubleshooting

    Troubleshooting If your unit should not perform as expected, consult the table below to see if the problem can be corrected before seeking help from your dealer or our service organization. REMEDY Problem Possible Cause • Connect the cord securely.
  • Page 33: Specifications

    Power supply ...........................AC 120 V, 60 Hz Power consumption ............................12 W Dimensions (W x H x D) ............ 17-5/16 x 4-7/16 x 15-1/2 inches (440 x 113 x 393 mm) Weight (NET) ..........................12.8 lbs (5.8 kg) Note : Design and specifications are subject to change without notice for improvements.
  • Page 34 Please do not return your unit directly to us. 2. You must pay any shipping charges if it is necessary to ship the product for service. If the necessary repairs are covered by the warranty, we will pay the return shipping charges to your location anywhere in the United States or its territories.
  • Page 35 Printed in China 07/2002 MITf 08AW851280...
