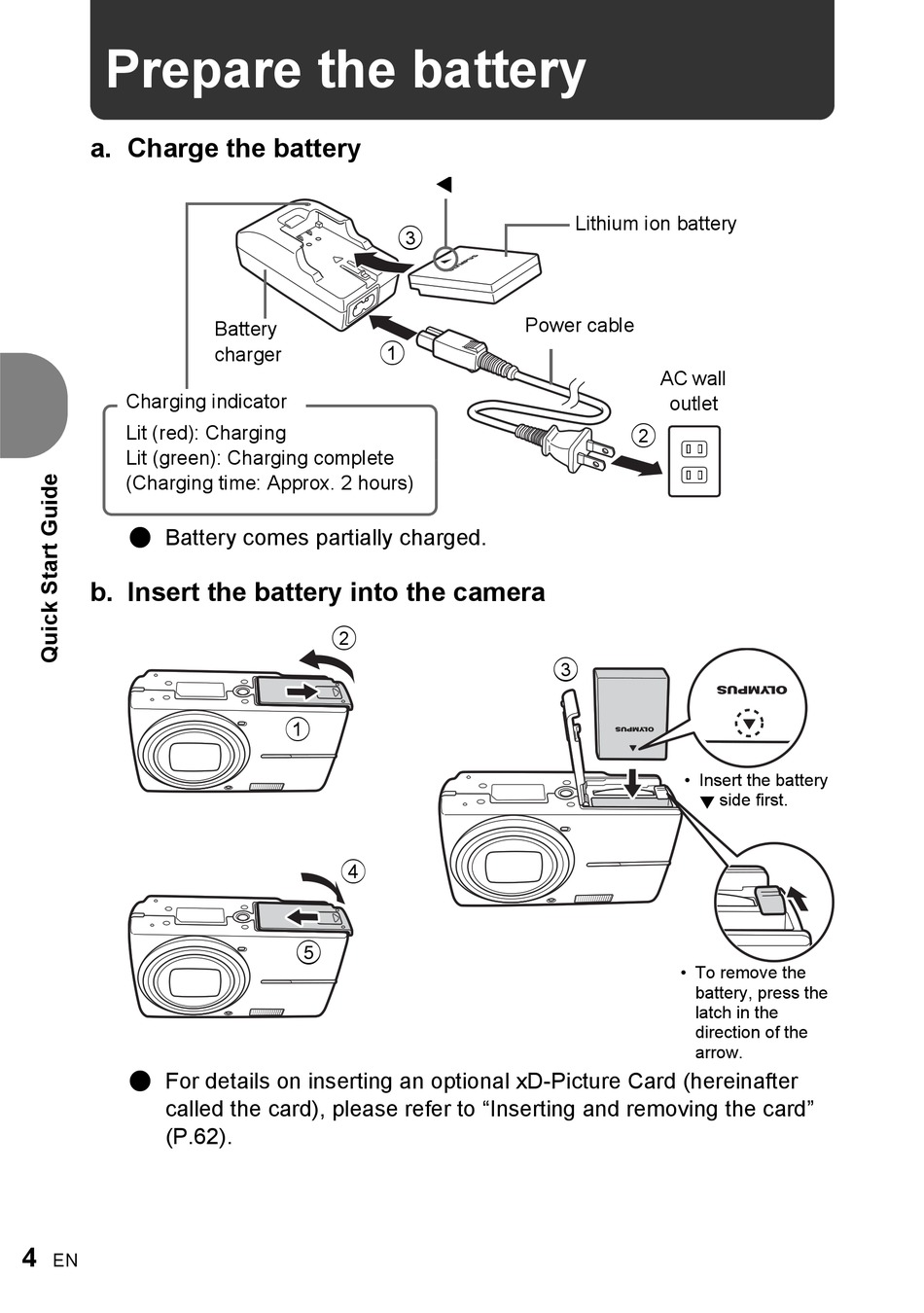

Prepare the battery

a. Charge the battery
Charging indicator
Lit (red): Charging
Lit (green): Charging complete
(Charging time: Approx. 2 hours)
( Battery comes partially charged.
b. Insert the battery into the camera
( For details on inserting an optional xD-Picture Card (hereinafter
called the card), please refer to "Inserting and removing the card"
(P.62).
4
EN
Battery
1
charger
2
1
4
5
3
Power cable
3
Lithium ion battery
AC wall
outlet
2
• Insert the battery
side first.
• To remove the
battery, press the
latch in the
direction of the
arrow.
