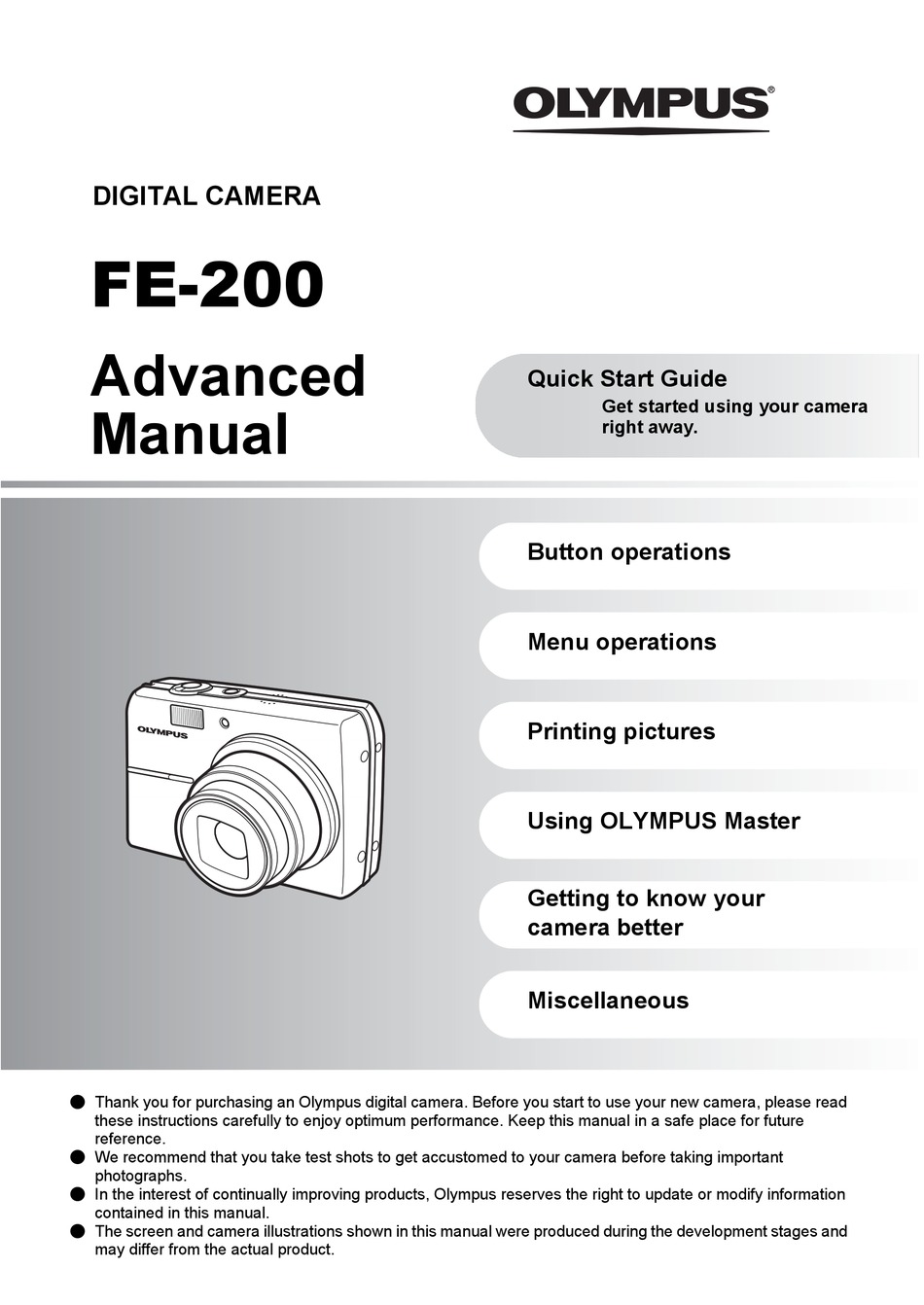

DIGITAL CAMERA

FE-200
Advanced
Manual
( Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read
these instructions carefully to enjoy optimum performance. Keep this manual in a safe place for future
reference.
( We recommend that you take test shots to get accustomed to your camera before taking important
photographs.
( In the interest of continually improving products, Olympus reserves the right to update or modify information
contained in this manual.
( The screen and camera illustrations shown in this manual were produced during the development stages and
may differ from the actual product.

Quick Start Guide

Get started using your camera
right away.

Button operations

Menu operations

Printing pictures

Using OLYMPUS Master

Getting to know your
camera better
Miscellaneous
