- Page 1 Enclosure Installation Manual...
-
Page 2: Important Safety Instructions
NOTES Page 2 | Fathom IWS... - Page 3 THIS SUBWOOFER IS CAPABLE OF PRODUCING VERY HIGH SOUND WARNING PRESSURE LEVELS. PLEASE EXERCISE RESTRAINT IN ITS OPERATION TO PROTECT YOUR HEARING FROM PERMANENT DAMAGE. | Fathom IWS Page 3...
-
Page 4: Table Of Contents
Specifications: ............20 INTRODUCTION Thank you for choosing the JL Audio Fathom In-Wall Subwoofer System, also known as the IWS. -
Page 5: System Components

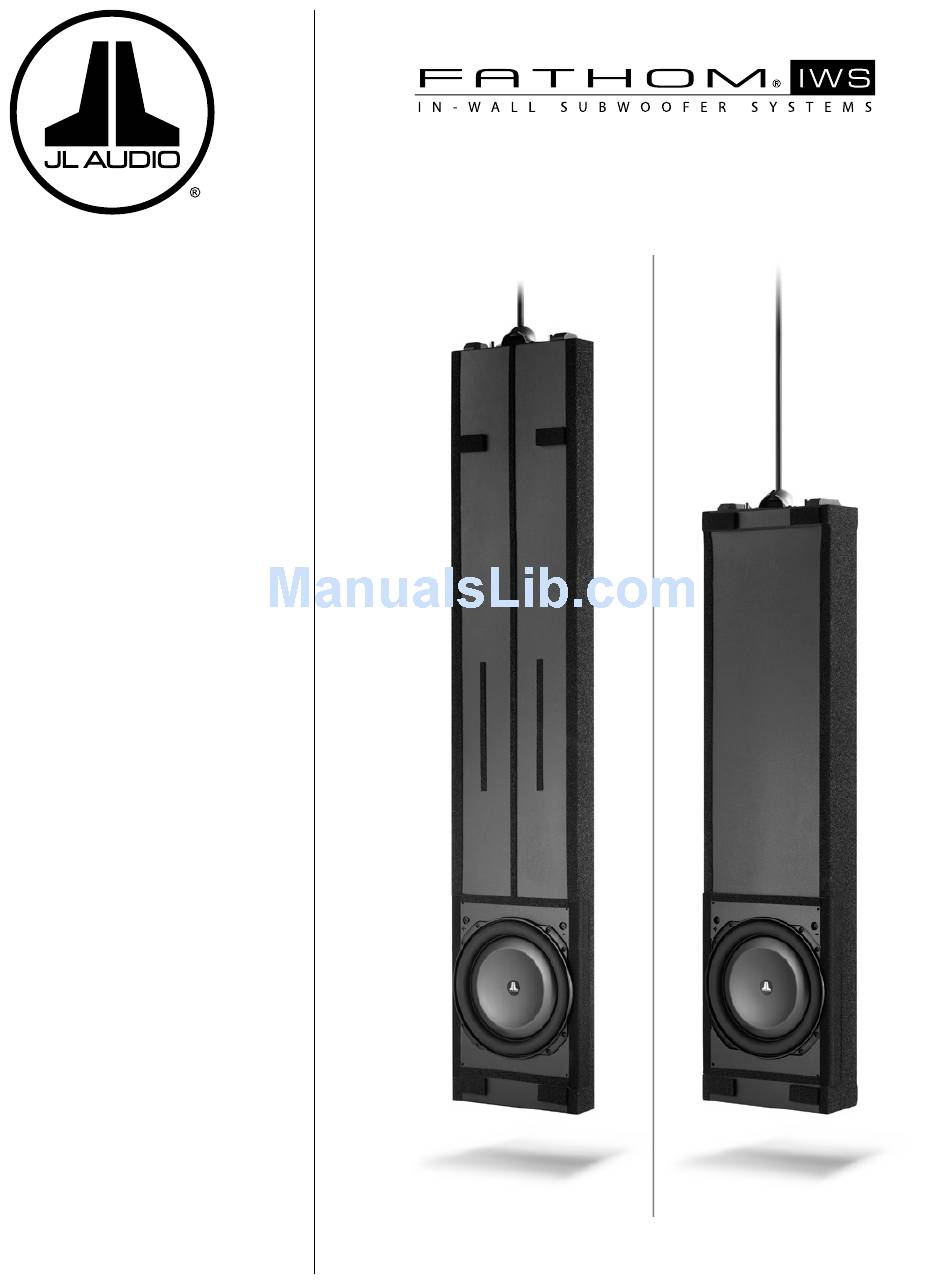

The Fathom IWS uses two enclosure types, referred to as the “A” box and the “B” box. The “A” box is designed for 2 x 4 stud construction, and the “B”... - Page 6 THE GRILLE ASSEMBLY The Fathom IWS enclosure uses a grille that mounts directly to the wall studs instead of the enclosure. The grille assembly consists of a removable outer metal mesh and grille tray unit. The grille’s design allows the enclosure to attach to the wall without making actual hard contact with the enclosure itself.
- Page 7 THE AMPLIFIER The Fathom IWS uses a unique amplifier, specifically engineered to take full advantage of the Fathom IWS subwoofer’s full excursion envelope. There are two amplifier models, a 1kW amplifier for the System One and a 2kW version for the System Two. Both are available as either 120V or 240V AC powered.
-
Page 8: Installation Hardware / Tools For Installation
• Tape measure (100-inch minimum) • Cordless drill/driver with #2 Phillips bit • Drill bits • Pliers • Wire strippers • Wire cutters • Utility knife or scissors • Permanent marker • Drop cloth (optional) • Masking tape (optional) Page 8 | Fathom IWS... -
Page 9: What's In The Box
Cable Ties (3) Pack of Screws (x1) Enclosure (x1) WHAT’S IN THE BOX? THE “B” BOX “Go” Gauge (x1) Mounting Bracket (x1) Foam Gasket (x1) Hanging Rod (x1) Cable Ties (3) Pack of Screws (x1) Enclosure (x1) | Fathom IWS Page 9... -
Page 10: Enclosure Installation Procedure
ENCLOSURE INSTALLATION PROCEDURE Prepping the Work Area Fathom IWS enclosures may be installed in both new and pre-existing “Go” Gauge construction homes. When working with pre-existing construction, you will need to open a stud bay and expose the studs on either side of the opening. For pre-existing construction installations, we recommend using masking tape and a drop cloth to protect the home’s interior from construction debris. - Page 11 Installing the Mounting Bracket Assembly The Fathom IWS enclosure mounting bracket assembly is designed for installation between the two studs at a specific height. The bracket assembly includes two steel L-brackets that are attached via slotted openings. The screws in the...
- Page 12 L-bracket at this time. Once the mounting bracket is firmly in place, remove the seven screws along the front of the centering template. The template is no (Figure 11) longer needed. Figure 10 Figure 11 Page 12 | Fathom IWS...
- Page 13 L-bracket. (Figure 14) Once in place, the enclosure should float freely within the wall cavity Figure 14 Figure 15 without making any hard contact. (Figure 15) | Fathom IWS Page 13...
- Page 14 Any possible contact point may lead to undesirable rattles or buzzing, which will be inaccessible once the surrounding wallboard has been installed. Figure 24 Page 14 | Fathom IWS...
- Page 15 PRO-TIP: You may find it easier to partially screw two screws into the center area of the template to use as a grip as you pull forward. PRO-TIP | Fathom IWS Page 15...
- Page 16 Figure 30 decoupled from the wall. Once you’ve verified that the grille tray fits properly, secure it in place using the six screws that were supplied with the grille. (Figures 29-31) Figure 31 Page 16 | Fathom IWS...
- Page 17 (Figures 32 & 33) wires out of the way when mounting the subwoofer. These elastic bands should not be removed. Position the woofer with the JL Audio logo upright Figure 32 Figure 33 and connect each speaker lead to its respective terminal.
- Page 18 NOTES Page 18 | Fathom IWS...
-
Page 19: Limited Warranty / Service Information
NOTES | Fathom IWS Page 19... -
Page 20: Specifications
Fathom® IWS Enclosure Specifications: Specifications Fathom® IWS-SYS-1 Fathom® IWS-SYS-2 Enclosure Type: Single Sealed Enclosure Two Sealed Enclosures 13.5-in. 13.5-in. Driver(s): (nominal diameter) (nominal diameter) in each of two enclosures 26 Hz - 101 Hz (+/- 1.5 dB) Frequency Response (anechoic): -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz 98.26 sq.
