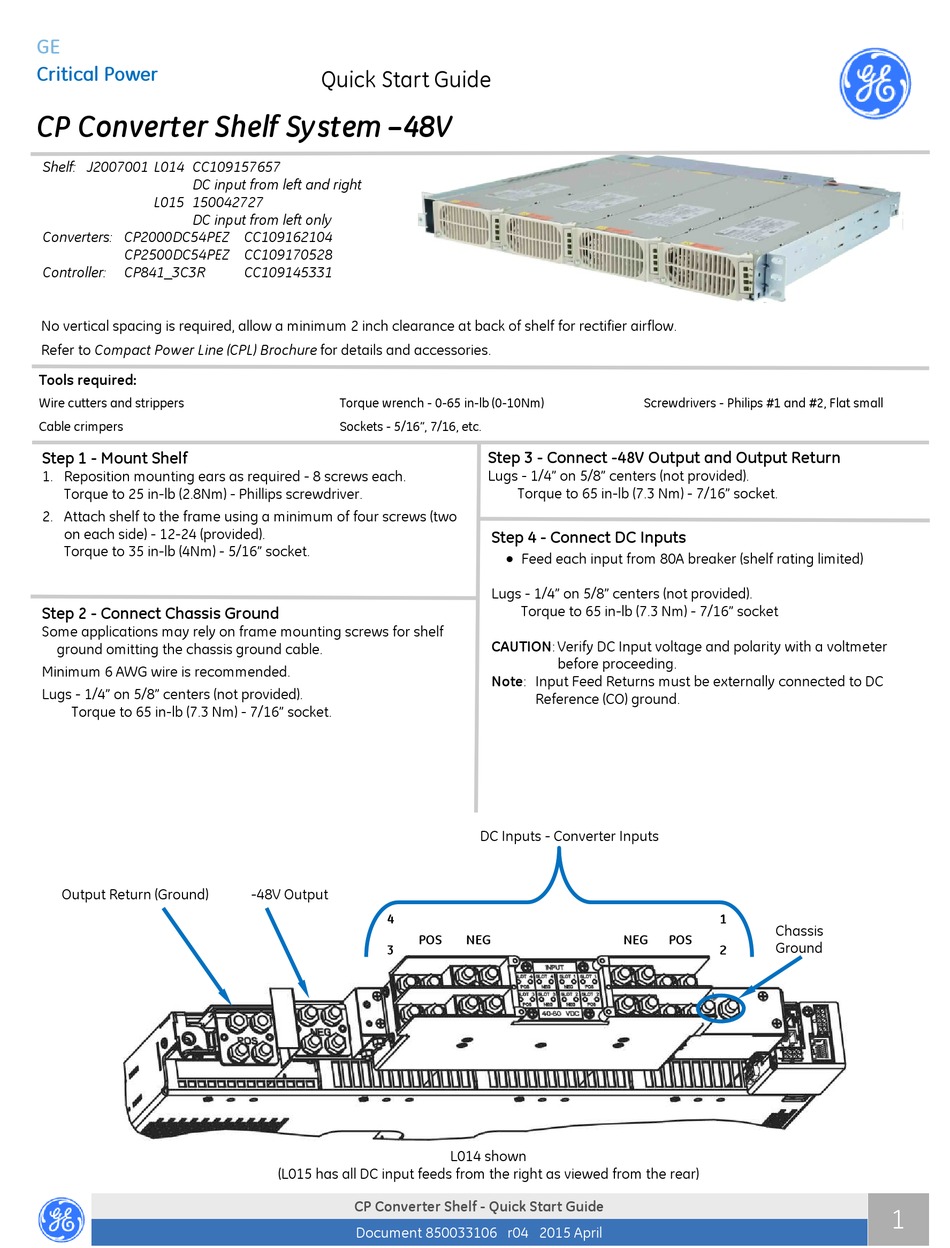

GE CP2000DC54PEZ Quick Start Manual

Cp converter shelf system –48v
Hide thumbs

Advertisement

Quick Links

GE
Critical Power
CP Converter Shelf System –48V
Shelf: J2007001 L014 CC109157657
DC input from left and right
L015 150042727
DC input from left only
Converters: CP2000DC54PEZ CC109162104
CP2500DC54PEZ CC109170528
Controller:
CP841_3C3R
No vertical spacing is required, allow a minimum 2 inch clearance at back of shelf for rectifier airflow.
Refer to Compact Power Line (CPL) Brochure for details and accessories.
Tools required:
Wire cutters and strippers
Cable crimpers
Step 1 - Mount Shelf
1. Reposition mounting ears as required - 8 screws each.
Torque to 25 in-lb (2.8Nm) - Phillips screwdriver.
2. Attach shelf to the frame using a minimum of four screws (two
on each side) - 12-24 (provided).
Torque to 35 in-lb (4Nm) - 5/16" socket.
Step 2 - Connect Chassis Ground
Some applications may rely on frame mounting screws for shelf
ground omitting the chassis ground cable.
Minimum 6 AWG wire is recommended.
Lugs - 1/4" on 5/8" centers (not provided).
Torque to 65 in-lb (7.3 Nm) - 7/16" socket.
Output Return (Ground)

Quick Start Guide

CC109145331
Torque wrench - 0-65 in-lb (0-10Nm)
Sockets - 5/16", 7/16, etc.
-48V Output
4
POS
3
(L015 has all DC input feeds from the right as viewed from the rear)
CP Converter Shelf - Quick Start Guide
Document 850033106 r04 2015 April
Step 3 - Connect -48V Output and Output Return
Lugs - 1/4" on 5/8" centers (not provided).
Torque to 65 in-lb (7.3 Nm) - 7/16" socket.
Step 4 - Connect DC Inputs

Feed each input from 80A breaker (shelf rating limited)
Lugs - 1/4" on 5/8" centers (not provided).
Torque to 65 in-lb (7.3 Nm) - 7/16" socket
CAUTION: Verify DC Input voltage and polarity with a voltmeter
before proceeding.
Note: Input Feed Returns must be externally connected to DC
Reference (CO) ground.
DC Inputs - Converter Inputs
NEG
NEG
L014 shown
Screwdrivers - Philips #1 and #2, Flat small
1
Chassis
POS
Ground
2
1
