Step 5 - Set Jumpers - LAN Port and Relay per Galaxy Pulsar Edge Controller Quick Start Guide
Step 6 - Install Controller per Galaxy Pulsar Edge Controller Quick Start Guide
Step 7 - Install Signal and Communications Cables
Connectors are on rear.
1. J1-2 Alarms and Inputs - Connect to office alarms and signals.
See Information: Alarm Connections for Details
2. J5
LAN - Connect to Ethernet network.
3. J7
DIST - Connect to external distribution - if present.
Step 8 - Install 1-Wire Battery Temp and Voltage Monitor per Galaxy Pulsar Edge Controller Quick Start Guide - Optional
1. Connect 1-Wire Battery Temp and Voltage Monitor to J3
Step 9 - Install Converter s
1. Slide converter into its slot approximately 3/4 of the way.
2. Open the faceplate by sliding the faceplate latch to the left until the faceplate releases and
swings outward.
3. Slide the unit into the slot until it engages with the back of the shelf. Swing the faceplate closed
to fully seat the converter. Verify the faceplate is latched.
Step 10 - Initial Start Up
Verify that all AC, DC and Alarm connections are complete and secure. Turn on AC input breakers. If there are no alarms, make required
adjustments to the default settings on the controller for this installation.
Step 11 - Configure Controller per Galaxy Pulsar Edge Controller Quick Start Guide
Verify and edit controller basic configuration parameters per site engineering instructions.
2

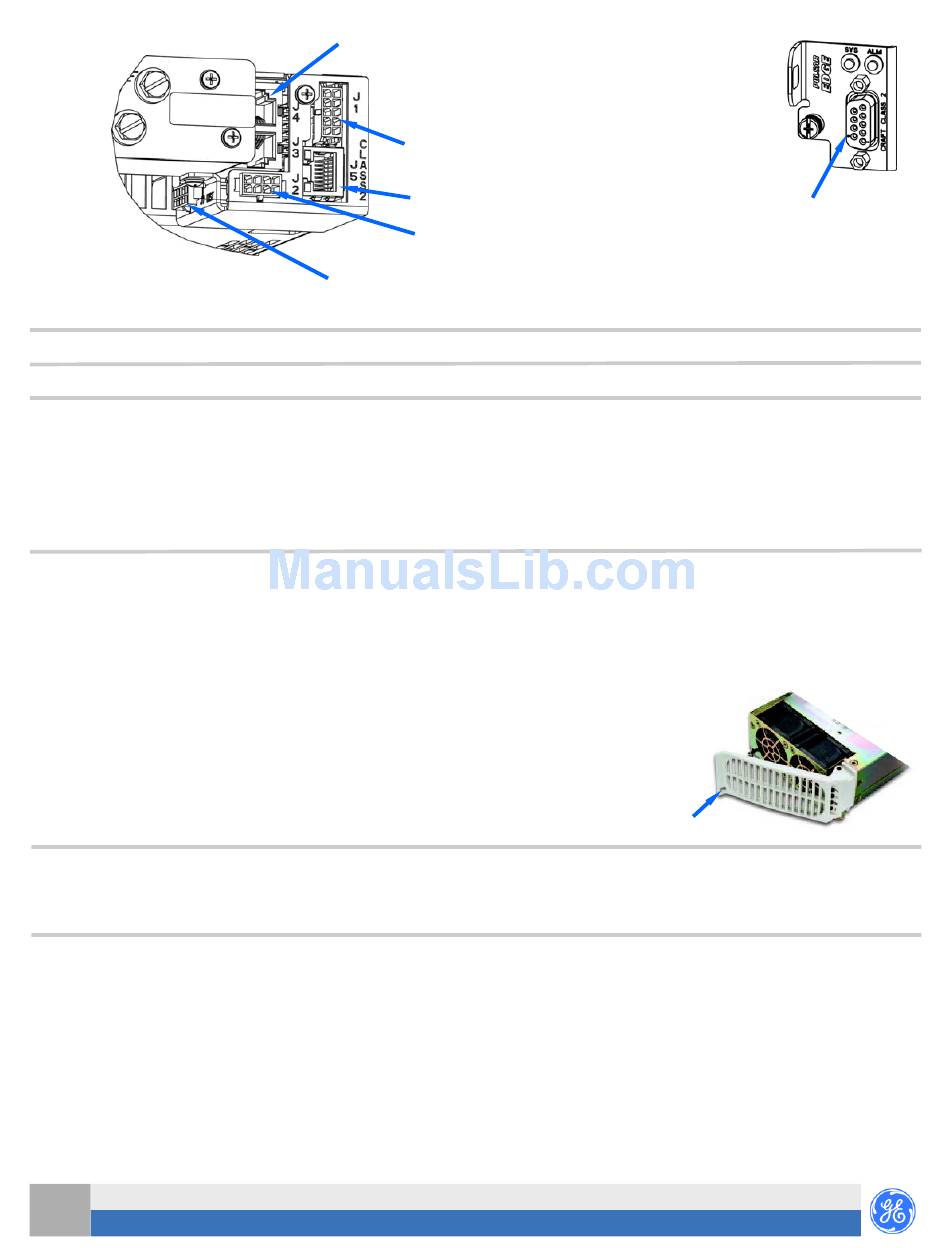

J4 1-Wire Battery Temp and Voltage Monitor
J1 Alarms and Inputs - page 4
J5 LAN Port
J2 External Alarm Inputs - page 4
J7 External Distribution Shelf.- page 4
Signal Connections
CP Converter Shelf - Quick Start Guide
Document 850033106 r04 2015 April
RS-232 Craft port
Latch
