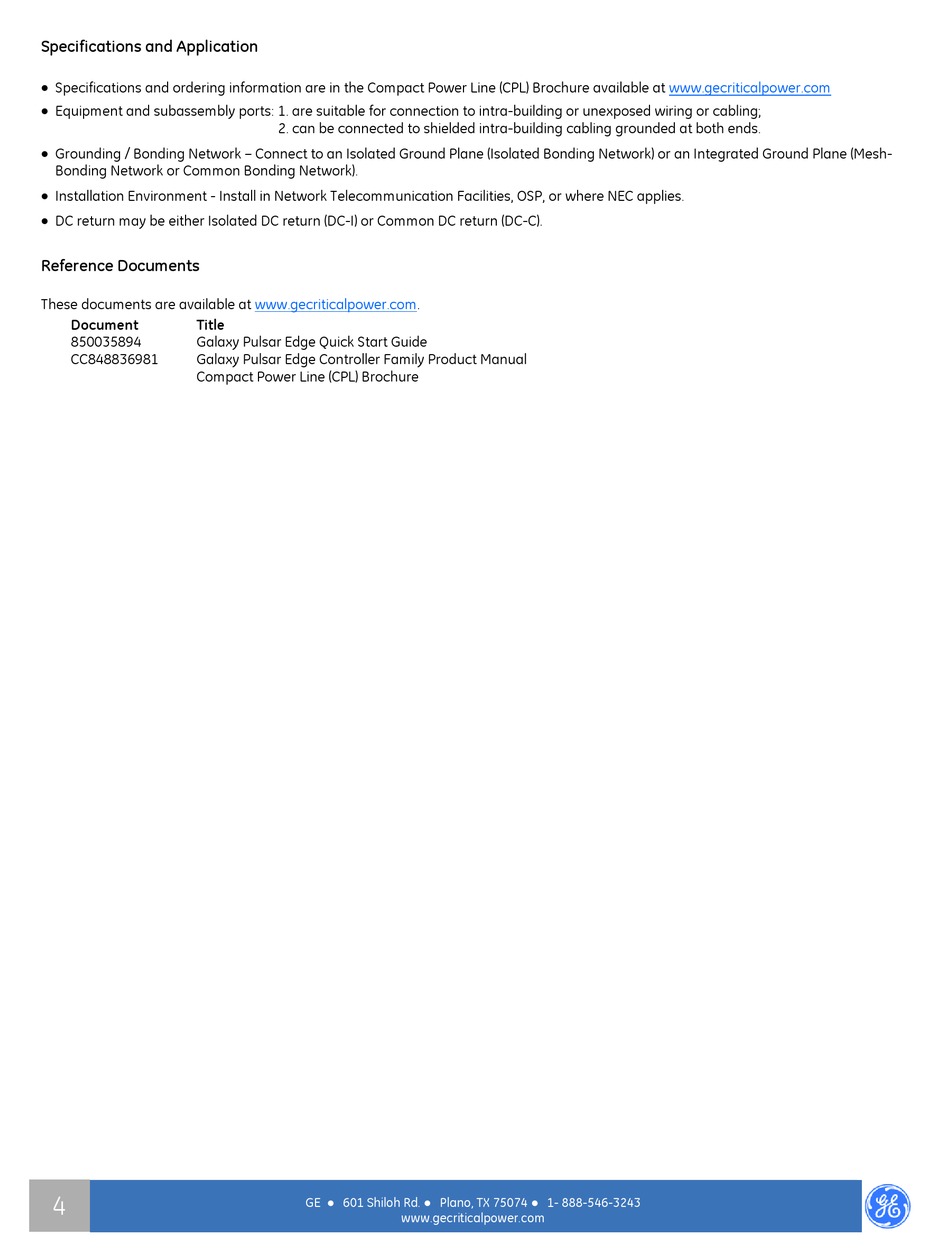

Specifications and Application

Specifications and ordering information are in the Compact Power Line (CPL) Brochure available at

Equipment and subassembly ports: 1. are suitable for connection to intra-building or unexposed wiring or cabling;

Grounding / Bonding Network – Connect to an Isolated Ground Plane (Isolated Bonding Network) or an Integrated Ground Plane (Mesh-
Bonding Network or Common Bonding Network).

Installation Environment - Install in Network Telecommunication Facilities, OSP, or where NEC applies.

DC return may be either Isolated DC return (DC-I) or Common DC return (DC-C).
Reference Documents
These documents are available at www.gecriticalpower.com.
Document
Title
850035894
Galaxy Pulsar Edge Quick Start Guide
CC848836981
Galaxy Pulsar Edge Controller Family Product Manual
Compact Power Line (CPL) Brochure
4
2
2. can be connected to shielded intra-building cabling grounded at both ends.
CP Converter Shelf - Quick Start Guide
GE ● 601 Shiloh Rd. ● Plano, TX 75074 ● 1- 888-546-3243
Document 850033106 r04 2015 April
www.gecriticalpower.com
www.gecriticalpower.com
