User Manual
2016.05
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zenmuse XT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji Zenmuse XT

Summary of Contents for dji Zenmuse XT

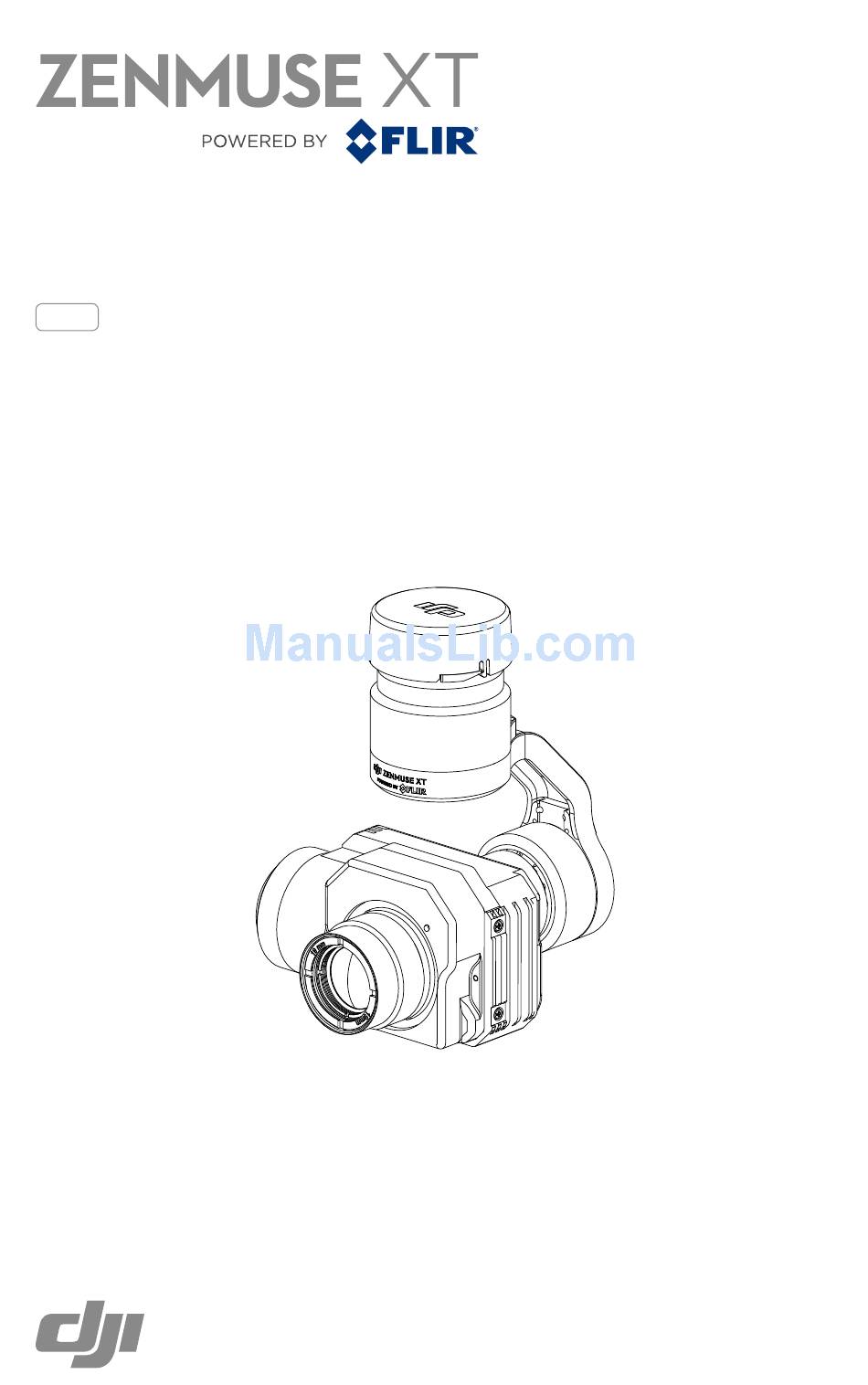

  • Page 1 User Manual 2016.05 V1.2...

  • Page 2: Using This Manual

    Important Tips Install the DJI GO App Search for ‘DJI GO’ on the App Store or Google Play and install the app on your mobile device. DJI GO supports iOS 8.0 (or later) or Android 4.1.2 (or later). ECCN (Export Control Classification Number)

  • Page 3: Table Of Contents

    Install the DJI GO App ECCN (Export Control Classification Number) Introduction Installation Supported Aircraft Mounting the Zenmuse XT on the Inspire 1 Mounting the Zenmuse XT on the Matrice 100 DJI GO App Downloading DJI GO Connecting to DJI GO...

  • Page 4: Introduction

    As with other DJI 3-axis gimbal systems, the Zenmuse XT can be mounted on the Matrice 100 or Inspire 1 series aircraft and stream a live HD view to DJI GO. This makes it excellent for aerial thermal applications such as inspection and maintenance, search and rescue, and precision agriculture.

  • Page 5: Mounting The Zenmuse Xt On The Matrice 100

    3. Rotate the gimbal lock to the locked position. Mounting the Zenmuse XT on the Matrice 100 The Matrice 100 aircraft has to be modified before mounting the Zenmuse XT. Refer to “Mounting the Gimbal” in the Matrice 100 User Manual for detailed procedures.

  • Page 6: Dji Go App

    DJI GO App Downloading DJI GO Search for ‘DJI GO’ on the App Store or Google Play and download the app to your mobile device. DJI GO supports iOS 8.0 (or later) or Android 4.1.2 (or later). Connecting to DJI GO 1.

  • Page 7: Settings

    Displays the remaining shots or recording time, photo/video format, and selected palette and scene. [2] Spot Meter/Area Measurement Tap to enable the Spot Meter or Area Measurement (Zenmuse XT-Radiometric Only). [3] Digital Zoom Tap to adjust digital zoom. [4] Camera Settings Tap to view the camera settings.

  • Page 8: Camera Settings

    JPEG Shooting Mode: Single Shot or Interval Timer (1-60 second intervals). Image Format: JPEG (8-bit) or R-JPEG (Radiometric JPEG). The Zenmuse XT-Radiometric supports four image file formats: JPEG, R-JPEG, TIFF T-Linear Low, and TIFF T-Linear High, which is more useful for thermal imaging analysis.
  • Page 9 Sky excluded from ROI Palette The Zenmuse XT offers a variety of Palette options. Distinct colors are used to show temperature differences in the thermal image, which are related to the grayscale intensity. The temperature range of the image is mapped to 256 colors and displayed in the 8-bit JPEG or MPEG-4 format.
  • Page 10 ZENMUSE XT User Manual The following table shows all Palette options. Different Palettes applied to the same image: White Hot Black Hot Fusion Rainbow Scene Use the Scene option to instantly enhance your image. You can select Linear, Default, Sea/Sky, Outdoor, Indoor, Manual or Custom option.
  • Page 11 Area Measurement (Zenmuse XT-Radiometric Only) Enabling this function will display the average temperature, lowest temperature, the highest temperature and the corresponding locations of each area in the DJI GO app. Full screen view also supported. The spot meter’s measurement accuracy is affected by various factors: 1) Reflectivity of objects - shiny metals with high reflectivity will reflect more of the background radiation, and result in a larger error;...
  • Page 12 ZENMUSE XT User Manual P-GPS 09:29 32 ℃ 26 ℃ 29 ℃ Max. Min. Ave. Isotherm Enabling Isotherm allows designated temperature ranges to be represented with different color schemes, so that objects measured in a single color scheme impart higher contrast and better visibility.
  • Page 13 Auto Gain Mode (Default): The camera will automatically select the optimal gain mode according to the temperature range of the image. External Parameters (Zenmuse XT-Radiometric Only) The Scene Emissivity, Background Temperature and other external parameters can be set by the user to improve temperature measurement accuracy.
  • Page 14 ZENMUSE XT User Manual 3. Units of Measurement Units: Fahrenheit, Celsius and Kelvin. © 2016 DJI. All Rights Reserved.

  • Page 15: Remote Controller Operations

    Press to switch between the Palette (default) and digital zoom. Turn to adjust their values. [4] Playback Button Press to view photos and videos on your Micro SD card. Press again to exit. [5] Shutter Button Press to take photos. © 2016 DJI. All Rights Reserved.

  • Page 16: Specifications

    Scene Range (Low Gain) -40° to 1022° F (-40° to 550° C) Spot Meter Measures the temperature of the 4×4 pixels in the center of the image (Zenmuse XT-Performance), or any position on the image (Zenmuse XT-Radiometric) File Storage Micro SD Card...
  • Page 17 ZENMUSE XT User Manual Lens Models 6.8 mm 7.5 mm 9 mm 13 mm 19 mm f/1.4 f/1.4 f/1.25 f/1.25 17μ 640×512 90° × 69° 69° × 56° 45° × 37° 32° × 26° iFoV 2.267 mr 1.889 mr 1.308 mr 0.895 mr...
  • Page 18 This content is subject to change. Download the latest version from http://www.dji.com/product/zenmuse-xt If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. ZENMUSE is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
