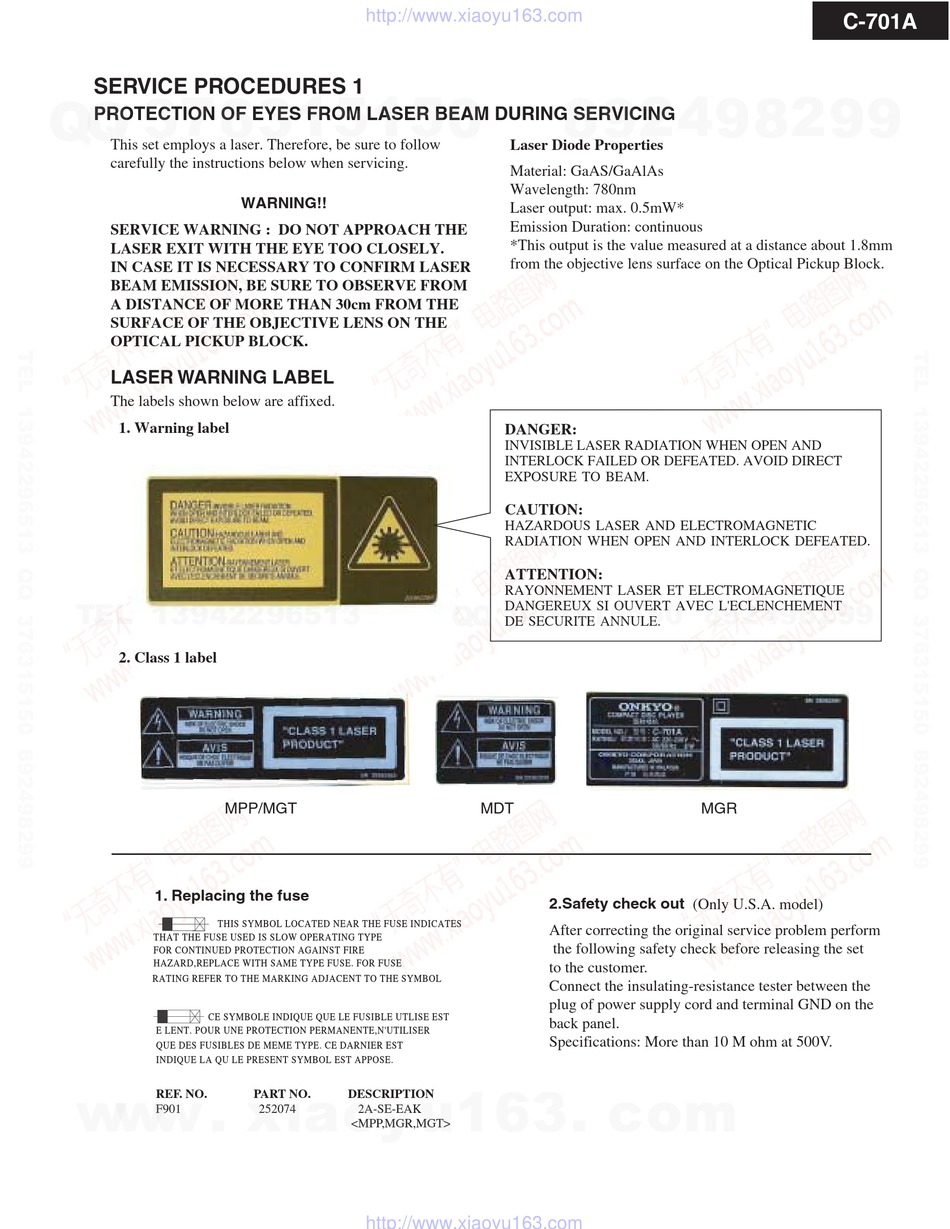

SERVICE PROCEDURES 1

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs a laser. Therefore, be sure to follow
carefully the instructions below when servicing.
SERVICE WARNING : DO NOT APPROACH THE
LASER EXIT WITH THE EYE TOO CLOSELY.
IN CASE IT IS NECESSARY TO CONFIRM LASER
BEAM EMISSION, BE SURE TO OBSERVE FROM
A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE
OPTICAL PICKUP BLOCK.

LASER WARNING LABEL

The labels shown below are affixed.
1. Warning label
TE
L 13942296513
2. Class 1 label
MPP/MGT
1. Replacing the fuse
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
E LENT. POUR UNE PROTECTION PERMANENTE,N'UTILISER
www
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
REF. NO.
.
F901
http://www.xiaoyu163.com
WARNING!!
x ao u163
y
PART NO. DESCRIPTION
i
252074 2A-SE-EAK
<MPP,MGR,MGT>
http://www.xiaoyu163.com
2 9
8
Laser Diode Properties
Material: GaAS/GaAlAs
Wavelength: 780nm
Laser output: max. 0.5mW*
Emission Duration: continuous
*This output is the value measured at a distance about 1.8mm
from the objective lens surface on the Optical Pickup Block.
DANGER:
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED. AVOID DIRECT
EXPOSURE TO BEAM.
CAUTION:
HAZARDOUS LASER AND ELECTROMAGNETIC
RADIATION WHEN OPEN AND INTERLOCK DEFEATED.
ATTENTION:
Q Q
RAYONNEMENT LASER ET ELECTROMAGNETIQUE
3 6 7 1 3 1 5
DANGEREUX SI OUVERT AVEC L'ECLENCHEMENT
DE SECURITE ANNULE.
MDT
2.Safety check out
After correcting the original service problem perform
the following safety check before releasing the set
to the customer.
Connect the insulating-resistance tester between the
plug of power supply cord and terminal GND on the
back panel.
Specifications: More than 10 M ohm at 500V.
co
.
9 4 2 8
0 5 8 2 9 9 4 2 8
MGR
(Only U.S.A. model)
m
C-701A
