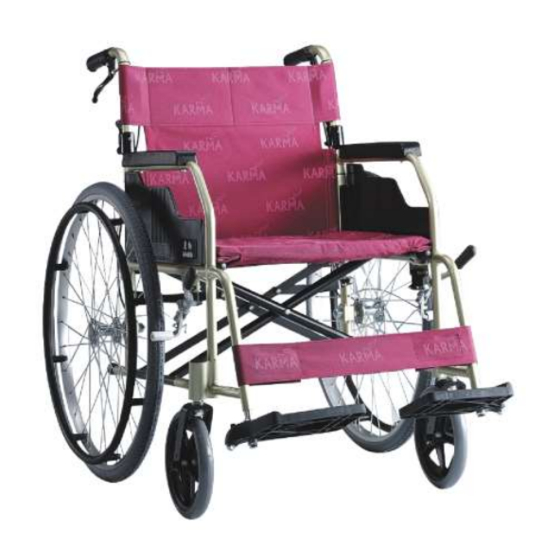

Karma KM-1500 Owner's Manual

Manual wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual Wheelchair Owner's Manual
KM-1000 Series
(KM-1000/KM-1500/KM-1510)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM-1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Karma KM-1500

Summary of Contents for Karma KM-1500

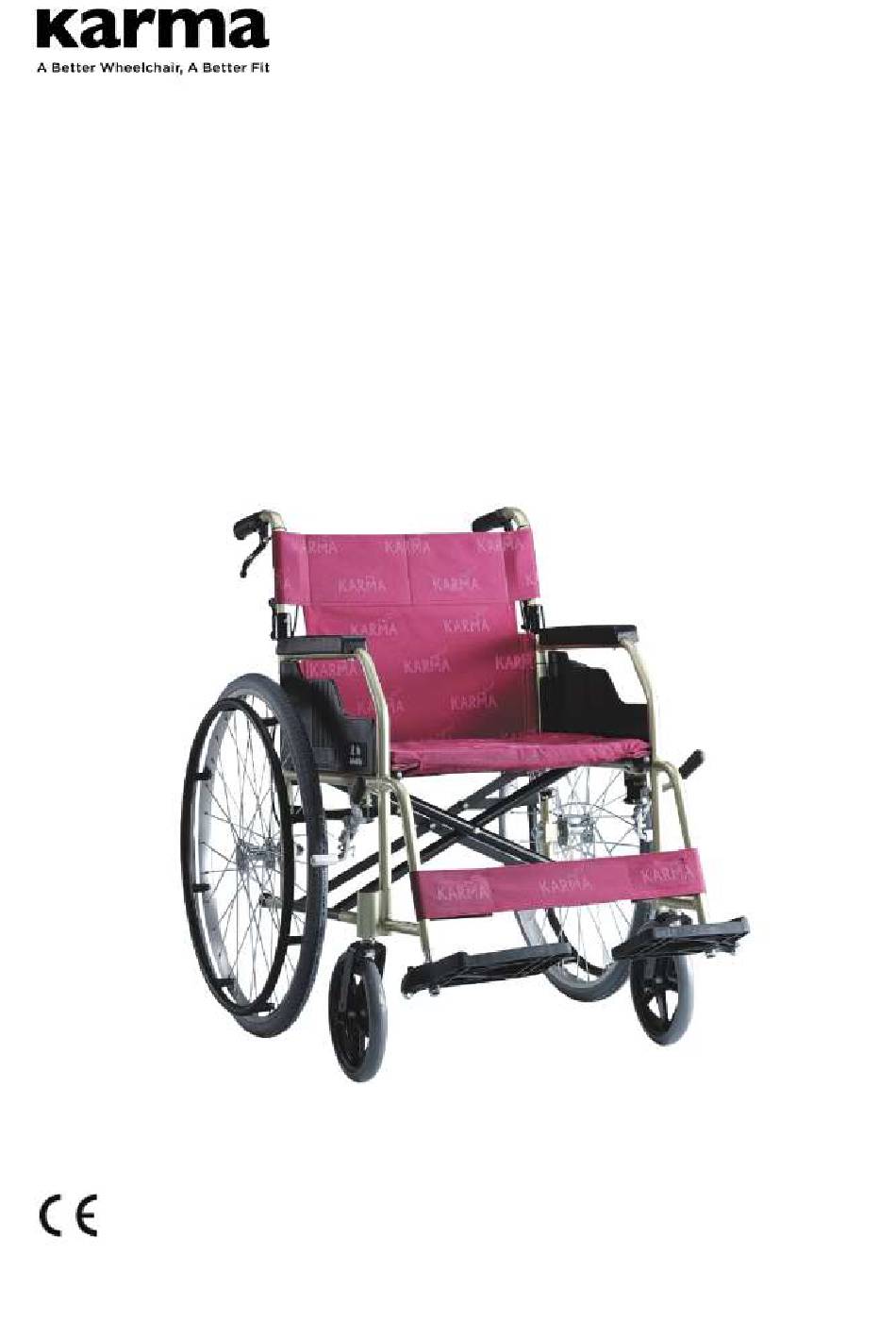

  • Page 1 Manual Wheelchair Owner's Manual KM-1000 Series (KM-1000/KM-1500/KM-1510)
  • Page 3 GENERAL WARNING ● DO maintain your chair well, in particular when it is equipped with pneumatic tires. Please check the tire pressure since this affects the efficiency of the brakes. To know the correct tire pressure, please see the walls of the tires. ●...
  • Page 4 YOU AND YOUR KARMA SERVICE PROVIDER ● No tools are required for assembly. Your wheelchair should be assembled by your authorized KARMA dealer. Your authorized KARMA dealer is also your service provider. Unauthorized repairs, upgrades and add-ons will void your warranty. Anything wheelchair related that requires tools should be done by your authorized KARMA service provider.
  • Page 5 If you cannot contact your dealer, please contact another authorized KARMA dealer for service. If all else fails, contact KARMA directly via our website or give us a call and we can refer you to your new service provider.

  • Page 6: Table Of Contents

    2.7 Avoid General Misuse..................5 2.8 Labeling ......................6 3. INTENDED USE & PARTS ..................7 3.1 Intended Use ....................7 3.2 KM-1000 Series Parts Description ............8 4. OPERATION ......................10 4.1 Preparing For Use ..................10 4.2 Getting Into Your Wheelchair (See figure 4.13) ........ 13 4.3 Getting Out of Your Wheelchair (See figure 4.14) ......
  • Page 7 4.11 Going Up Kerbs ..................20 4.12 Going Up or Down Steps/Stairs ............20 4.13 General Use....................21 4.14 Transportation .................... 22 4.15 Storage ......................25 5. INSPECTION AND MAINTENANCE.............. 25 5.1 Daily Check ..................... 25 5.2 Regular Maintenance Record ..............26 6.

  • Page 8: Preface

    1.2 This owner's manual includes operation, unfolding/ folding instructions and how to prevent possible accidents for the aspects of the wheelchair. 1.3 This owner's manual is written for KARMA wheelchair: KM-1000 Series. 1.4 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.
  • Page 9 balance. DON'T try to force yourself over an obstacle and use the sides of a doorway to pull yourself through a passageway. 2.2.2 Leaning and Standing DO NOT lean over the side or stand on the wheelchair since such an action may cause you to lose balance and fall.
  • Page 10 2.2.4 Kerbs 2.2.4.1. Whenever possible, get help from an assistant/attendant. If you have assistance, make sure that your chair is equipped with push handle. 2.2.4.2. DO avoid huge impacts when descending a kerb. A huge impact could probably damage the wheelchair. 2.2.4.3.

  • Page 11: General

    2.3.2 Never stand on the footplates when getting in or out of the wheelchair 2.3.3 Never carry more than one passenger. KARMA wheelchairs are limited to one user. 2.3.4 Use caution to assure your clothing doesn't get tangled with the wheels.

  • Page 12: Maximum User Weight Limit

    5 cm; the distance to the ground is no more than 5 2.6 Maximum User Weight Limit 2.6.1 The maximum user weight limit for KM-1000 Series is 115 kg. For detail information, refer to Section 8. SPECIFICATIONS.

  • Page 13: Labeling

    2.8 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.

  • Page 14: Intended Use & Parts

    (transit) or by the user (self-propelled). 3.1.2 The KM-1000 series is suitable for users up to 115 kg in weight. Hand brakes are provided for both rear wheels. 3.1.3 It is equipped with solid tyres (tires). It also has an extremely durable...

  • Page 15: Km-1000 Series Parts Description

    3.2 KM-1000 Series Parts Description 3.2.1 KM-1500 Parts Description 1. Push Handle 8. Backrest Upholstery 2. Attendant brake 9. Armrest 3. Back joint 10. Seat Upholstery 4. Side panel 11. Brake 5. Rear Wheel 12. Calf strap 6. Frame / Cross bar 13 Footplate 7.
  • Page 16 3.2.2 KM-1510 Parts Description 1. Push Handle 8. Backrest Upholstery 2. Attendant brake 9. Armrest 3. Back joint 10. Seat Upholstery 4. Side panel 11. Brake 5. Rear Wheel 12. Swing-away Footrest 6. Frame / Cross bar 13 Calf strap 7.

  • Page 17: Operation

    4. OPERATION 4.1 Preparing For Use 4.1.1 Unfolding 4.1.1.1 Holding the armrests, pull outwards. (See Figure 4.1) 4.1.1.2 Pointing your fingers inward with the palm of your hand on the frame, push down until the seat is fully lowered. Make sure the frame is firmly seated in its holder.
  • Page 18 4.1.2 Folding 4.1.2.1 Swing up the footplates. (See Figure 4.6) 4.1.2.2 Pull up on the seat upholstery by holding it in the centre of its front and back edge. (See Figure 4.7) 4.1.2.3 Press the two release levers on the backrest frame (push handle tubes) to fold the backrest down for compact storage and easy transport.
  • Page 19 4.1.3.1.2 Take up the wheel with axle and press the hub cover in the centre of the axle, as above. 4.1.3.1.3 This retracts the ball bearings that will allow you to push the axle into the wheel bracket that is located on the lower rear frame of the wheelchair.

  • Page 20: Getting Into Your Wheelchair (See Figure 4.13)

    4.1.3.3 Footplate Height 4.1.3.3.1 To adjust footplate height use the Karma tool provided to loosen the bolt at the side of the footrest arm. 4.1.3.3.2 Make sure that the footplate height is adjusted properly according to the user's calf length to reduce pressure on the body 4.1.3.3.3 Adjust to required height and re-tighten.

  • Page 21: Pelvic Belt

    Figure 4.13 Figure 4.14 4.4 Pelvic belt Please follow the instructions below to use the pelvic belt for your safety. 4.4.1 How to Assemble and Disassemble the Pelvic Belt (Option) 4.4.1.1 Loosen the fourth and fifth screws of both side of seat upholstery and insert the Pelvic belt in between the fourth and fifth screw holes.
  • Page 22 SUGGESTION: ● Please kindly be advised that the pelvic belt should be fitted tightly around the user's pelvis and be tightened until you can just get one finger through between the pelvic belt and the user. Kindly check the pelvic belt position is fitted to the place as we recommend. If it is not able to be this way, please consult your supplier.

  • Page 23: Manual Brake

    4.5 Manual Brake This wheelchair is equipped with two manual brakes. 4.5.1 They are applied directly against the tires. Push the handle of the manual brake forward to engage and pull the handle of to release. 4.5.2 Braking could be less efficient due to: 4.5.2.1 Worn tire tread.

  • Page 24: Transferring In

    CAUTION: ● If the anti-tippers are not fitted, or have been fitted incorrectly, there is a risk of tipping over and of injury 4.7 Transferring In 4.7.1 Engage both hand brakes. 4.7.2 Turn the footplates up and swing them to the side. 4.7.3 Lower the user into the seat, allowing them to use the armrests for support.

  • Page 25: Tilting

    not, it must be firmly held by an attendant. 4. 8.2.4 Engage both hand brakes. 4.8.2.5 Turn the footplates up and swing them to the side. 4. 8.2.6 Slide forwards on the seat. Place one foot firmly on the ground with the knee at a right angle and the other foot slightly apart and further back.

  • Page 26: Going Down Kerbs

    4.9.3 Grasp both push handles firmly. 4.9.4 Tell the person in the wheelchair that you are about to tilt the wheelchair backwards. 4.9.5 Pull back with both hands and push down and forwards with the foot. This will bring the wheelchair onto the back wheels. (See Figure 4.23) CAUTION: ●...

  • Page 27: Going Up Kerbs

    4.10.2 Going Down Kerbs Backwards with an Attendant. CAUTION: ● This is the easier and smoother method BUT it requires the attendant to step backwards into the road. 4.10.2.1 Back the wheelchair to the kerb edge and be careful that the back wheels are equally near the edge.

  • Page 28: General Use

    4.12.3 Each helper should bend at the knees and grip the main frame: with the front attendant's hands just under the front of the seat, with the back attendant's hands holding the frame just under the push handles. CAUTION: ● Never hold on to any movable or detachable parts. ●...

  • Page 29: Transportation

    The KM-1500 was tested with a four point webbing system. For further information on the use of wheelchair restraints please refer to the manufacturer's user guide. Karma always recommends that the user be transferred into car seat with a safety belt or harness while in a transport...
  • Page 30 SUGGESTION: ● Please transfer to a seat in the car if at all possible 4.14.1 Before Use 4.14.1.1 Please detach all easily removable accessories from the wheel-chair and stow them in a safe place where they cannot move around and become a safety hazard.
  • Page 31 - Attach rear straps into rail approximately 300 mm behind the wheelchair backrest. - Attached the hooks to the wheelchair brackets at the rear of the wheelchair as pictured below. Tension the restraint until the wheelchair is secure. Fitting the Front Restraint Fitting the Rear Restraint 4.14.2.3 Fitting the Seat Belt - Fasten the three point safety belt around the user.

  • Page 32: Storage

    Make sure that the wheelchair is fully folded when it is in storage. SUGGESTION: ● Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult your KARMA dealer. WARNING: ● Don't put anything on the wheelchair while it is in storage.

  • Page 33: Regular Maintenance Record

    5.1.8 A qualified technician can be found at an authorized distributor/dealer. CAUTION: ● Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record 5.2.1 In order to make sure your wheelchair is in good condition, visit your KARMA wheelchair dealer regularly for maintenance and keep records accordingly every six months after purchasing.
  • Page 34 frame and etc. CASTERS ● Inspect the casters for smooth rotation of the caster Ⅴ wheels and caster assembly. ● Inspect the caster for any wear in the Ⅴ bearings/mountings and for tire wear or damage. REAR WHEELS ● Quick-release axles lock properly; lubricate if necessary Ⅴ...

  • Page 35: Accessories

    CAUTION: ● If you find anything abnormal, stop using the wheelchair immediately and visit a KARMA wheelchair dealer for inspection and maintenance. CAUTION: ● Never disassemble or modify the wheelchair frame structure.
  • Page 36 ■Oxygen Tank Holder ■Backrest Bag - Standard size attaches to the back - Standard size. of wheelchairs. - Attaches to all Karma manual - Attaches to all Karma manual wheelchairs. wheelchairs. ■Folding Drink Holder ■ Anti-tippers - Collapses and adjusts to the size of - Attaches to all Karma manual the container (6-10 cm).

  • Page 37: Troubleshooting

    Thus, this should be performed by an authorized dealer/ technician or qualified therapist. 7. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action 1.

  • Page 38: Specifications

    13.5 13.6 Maximum User Weight (kg) KARMA reserves the right to modify information herein without further notice. Product specification could be varied according to customer requirements. CAUTION ● Please don't travel across a slope (in any direction) greater than 7 degrees.

  • Page 39: Cleaning & Recycling

    Static Stability Test Result KM-1000 Series (According to ISO 7176-1:1999) Test Requirement Min. Forward 16° Backward 16° Sideways 18° -The degree tolerance is +0, -1 degree. -The test condition: The size of test dummy used is 115 kg(255 lb). CAUTION ●...

  • Page 40: Recycling

    10.2.1.1 Repair will be provided free of charge if the problems are due to manufacturing or defective components within the warranty period (a repair of this kind will hereafter be called warranty repair). 10.2.1.2 Warranty repairs can be performed by authorized KARMA wheelchair dealers only.
  • Page 41 10.2.1.3 KARMA is not responsible for the transportation costs for repair and replacement. 10.2.1.4 Replaced parts will be the property of KARMA. 10.2.2 Items Not Covered by Warranty 10.2.2.1 Irregularities that do not affect function and safety of product. 10.2.2.2 Damage resulting from normal wear and tear.
  • Page 42 10.2.6.1 Please contact your local dealer. 10.2.7 Transfer of Warranty Rights 10.2.7.1 If you purchase a second-hand KARMA wheelchair while it is still within the warranty period, bring this owner's manual and the wheelchair to the dealer where the wheelchair was purchased for registration.
  • Page 44 110400000349 104-40013 Rev:14 2019.08...
