JBL LSR708i Setup Instructions

7 series
Hide thumbs

Advertisement

Quick Links

Set Up Instructions

Advertisement

loading

  Related Manuals for JBL LSR708i

  Summary of Contents for JBL LSR708i

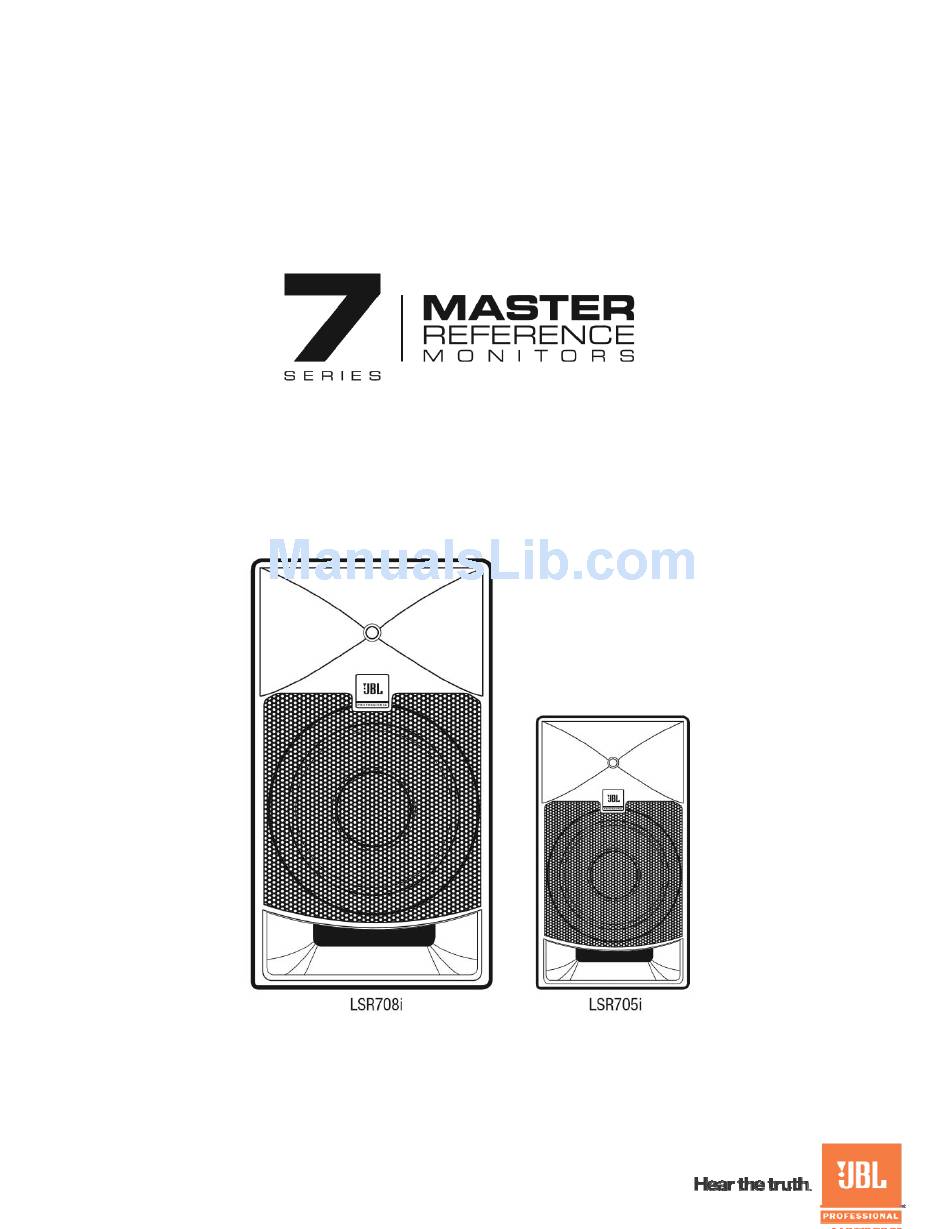

  • Page 1 Set Up Instructions...
  • Page 2  Phillips screwdriver Support: JBL Customer Support is available Monday through Friday 8:00am - 5:00pm Pacific Coast Time in the U.S.A. +1 (800.852.5776), www.jblproservice.com Audio Architect Software with Crown Amplifiers, please contact Crown Customer Support at +1 (800) 342-6939 Monday through Thursday 9:00am - 7:00pm, Friday: 9:00am - 5:00pm Eastern Standard Time in the U.S.A.
  • Page 3 OR the plug inserted in the connector labeled Bi-Amplified. When operating the speaker using the Single Wire connection, the supplied plug must remain inserted in the Bi-Amplified connector. Removing this plug will prevent single wire operation. Replacement plugs can be obtained by contacting JBL Customer Service at www.jblpro.com/support.
  • Page 4 JBL website at www.jblpro.com/7series. The following files are available: For Crown DCi:  A single tuning file that includes presets for LSR705i, LSR708i single wire and bi amplified operation BSD Soundweb London:  4 individual files providing the tuning profile for LSR705i, LSR708i single wire and bi-amplified operation.
  • Page 5 7 Series “i” Set Up Instructions   On the computer, install the latest version of Harman HiQnet™ Architect Software. Audio Architect software can be downloaded at www.jblpro.com/7series In the computer’s Windows control panel, disable Windows Firewall. Also Disable WiFi. Create a folder on the Windows desktop and name it “Crown DCi Files.” Download the desired file and place it in the folder on your desktop.
  • Page 6    You can then navigate to and select the speaker tuning library file that includes JBL 7 Series and M2 Speakers. Once it is loaded, you can select the particular tuning needed on a per-amplifier channel basis. In the block diagram (shown below) double-click on the speaker tuning icon for the channel(s) you want to configure.
  • Page 7 7 Series “i” Set Up Instructions    The following presets are provided for 7 Series and also JBL M2 Speakers: LSR705i: LSR705i Single wire tuning LSR708i: LSR708i Single wire tuning LSR705i LF LSR705i Bi-Amp Tuning (Woofer) LSR705i HF LSR705i Bi-Amp Tuning (Tweeter)
  • Page 8 7 Series “i” Set Up Instructions   NOTE: Parameters of speaker tuning files are not user accessible. In the graphic above, DSP blocks containing crossover, EQ and delay settings appear with a padlock icon to indicate these parameters cannot be modified. Although the Limiter settings are user accessible, it is recommended the settings are not modified as they protect the drivers.
  • Page 9 7 Series “i” Set Up Instructions   7 Series Installed Models Set Up  Page 9  6/1/16   ...
  • Page 10 7 Series “i” Set Up Instructions     7 Series Installed Models Set Up  Page 10  6/1/16   ...
