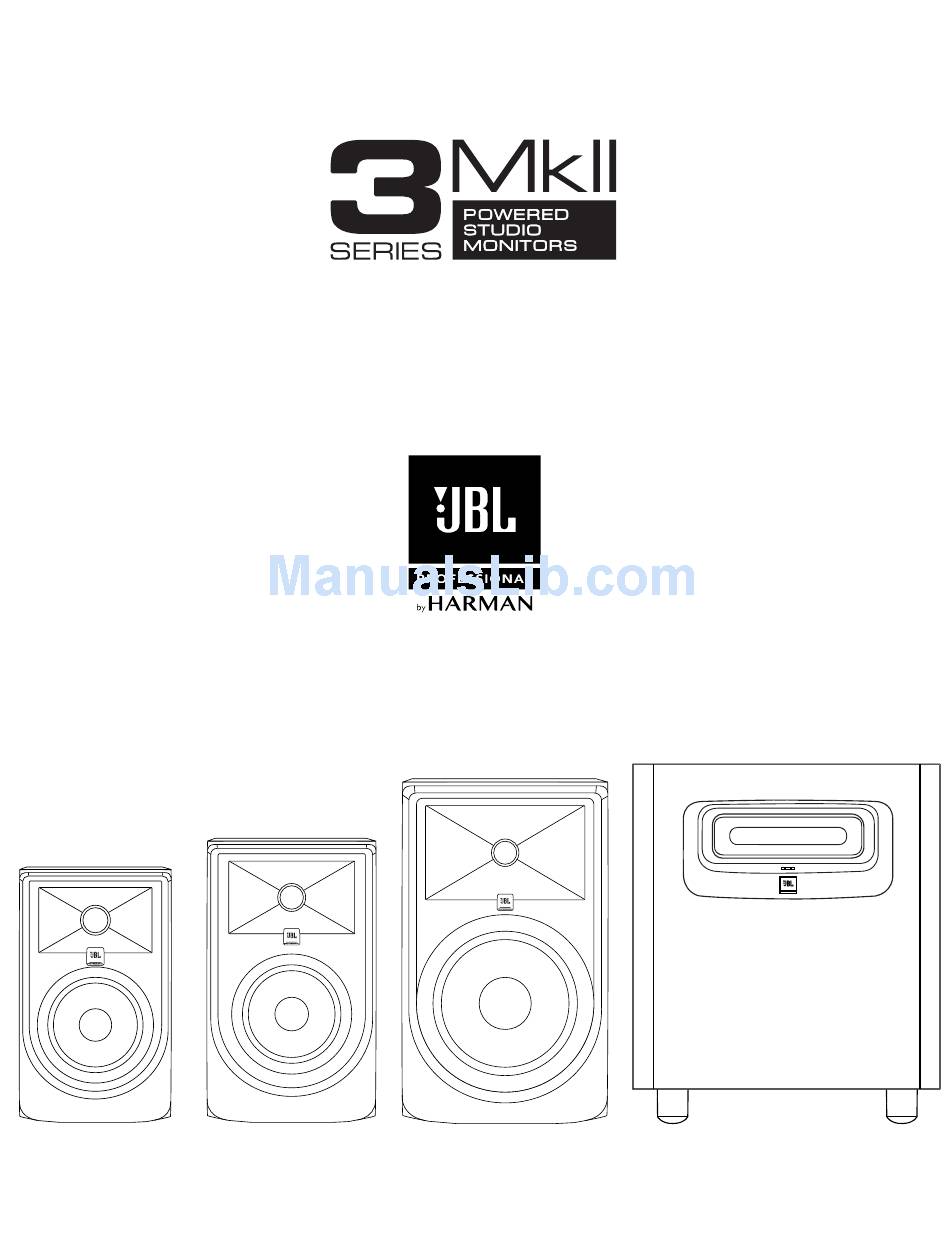

Page 1: Owners Manual
Owners Manual 305P MkII 306P MkII 308P MkII LSR310S 5" Powered 6" Powered 8" Powered 10" Powered Studio Monitor Studio Monitor Studio Monitor Studio Subwoofer... -
Page 2: Product Registration
Product Registration Thank you for your purchase of JBL 3 Series Studio Monitors To receive important information as it becomes available, please take a moment to register your 3 Series speakers at www.jblpro.com/registration. -
Page 3: Table Of Contents
Table of Contents Section 1: Important Safety Instructions ��������������������������������������������������������������������������������������������������������������� 4 Section 2: Introduction ������������������������������������������������������������������������������������������������������������������������������������������� 5 JBL Linear Spatial Reference (LSR) Design ....................5 Image Control Waveguide ..........................5 305P, 306P, and 308P MkII Features ......................5 LSR310S Powered Studio Subwoofer Features ..................... 6 JBL Professional Reliability .......................... -
Page 4: Section 1: Important Safety Instructions
Hereby, Harman Professional declares that the equipment type ESD Warning: The icon to the left indicates text regarding potential danger JBL 305P MKII, 306P MKII, 308P MKII, are in compliance with the associated with the discharge of static electricity from an outside source (such... -
Page 5: Section 2: Introduction
Reference design criteria requires 72 measurements, taken 360 degrees around the speaker, yielding 1,200 times more data. This data is used in the design of critical system components, enabling JBL to engineer complete systems that deliver smooth off-axis response. The result: clear, accurate sound at the listening position in any room. -
Page 6: Lsr310S Powered Studio Subwoofer Features
3 Series speakers will deliver years of reliable performance. To get the most out of the JBL 3 Series, please review this owner’s manual and keep it on hand for future reference. Also, please register your new speakers at www.jblpro.com/registration. -
Page 7: Section 3: Setting Up Your System
Section 3: Setting Up Your System EACH 3 SERIES CARTON INCLUDES THE FOLLOWING ITEMS: • One 3 Series MkII studio monitor or 3 Series subwoofer • One power cord • Quick setup guide • Four peel-off rubber pads (305P, 306P, and 308P MkII models only) UNPACKING When removing a speaker from its packaging, we recommend the following procedure, which will prevent damage of the high frequency transducer:... - Page 8 • Ideally, 3 Series MkII Studio Monitors should be placed on suitable speaker stands, rather than on the work surface. This will reduce resonance and deterioration of low frequency performance caused by the speaker’s mechanical coupling with the work surface. •...
-
Page 9: Audio Connections
AUDIO CONNECTIONS NOTE: Before making audio connections, ensure the VOLUME control on each 3 Series speaker/subwoofer is set to the full counter-clockwise (minimum) position. The 3 Series speakers are equipped with balanced XLR and 6mm (¼") TRS inputs for connection to professional computer audio interfaces, mixing consoles, and audio production equipment, as well as unbalanced consumer audio products such as personal music players, consumer audio receivers, and audio visual equipment. -
Page 10: Section 4: 305P, 306P, And 308P Mkii Powered Studio Monitors
HIGH FREQUENCY TRANSDUCER (TWEETER) – This transducer reproduces high frequency signals. WAVEGUIDE – The specially designed JBL Image Control Waveguide enhances imaging and optimizes the blend of direct and reflected sound in the room, ensuring neutral sound at the mix position. -
Page 11: Input Panel
INPUT PANEL XLR INPUT – Connect professional equipment to this connector using a balanced XLR plug. 6MM (¼") INPUT – Connect professional equipment to this connector using a 6mm (¼") balanced plug. Connect consumer equipment to this connector using a 6mm (¼") unbalanced plug. INPUT SENSITIVITY SWITCH –... -
Page 12: Section 5: Lsr310S Powered Studio Subwoofer
Section 5: LSR310S Powered Studio Subwoofer Front View Back View Bottom View FEATURES LOW FREQUENCY TRANSDUCER (WOOFER) – This transducer reproduces low frequency signals. POWER LED – This LED illuminates when power is connected and the POWER switch is set to ON. FEET –... -
Page 13: Input Panel
INPUT PANEL RIGHT AND LEFT XLR INPUTS – Connect professional equipment to these connectors using balanced XLR plugs. RIGHT AND LEFT 6MM (¼") – Connect professional equipment to these connectors using 6mm (¼") balanced plugs. Connect consumer equipment to these connectors using 6mm (¼") unbalanced plugs. RIGHT AND LEFT XLR OUTPUTS –... -
Page 14: Audio Connections
AUDIO CONNECTIONS Connect signal sources to either the XLR or 6mm (¼") INPUT connectors. Connect a single signal source to the speaker using either the XLR INPUT connectors, OR the 6mm (¼") TRS INPUT connectors. Do not connect multiple signal sources to the XLR and 6mm (¼") input connectors simultaneously. If the LSR310S subwoofer is being used to reproduce the .1 LFE channel in a surround sound system, connect the .1 LFE signal to either the LEFT or RIGHT input of the subwoofer. -
Page 15: Crossover Settings And Bass Management
Continuous low frequency energy with very high peak SPL is made possible by JBL’s new long excursion low frequency driver, working in concert with JBL’s patented Slip Stream™ Port, and powered by a 200 watt Class-D amplifier. -
Page 16: Section 6: System Connections
Section 6: System Connections TWO CHANNEL SYSTEMS LEFT SPEAKER RIGHT SPEAKER (REAR PANEL) (REAR PANEL) SUBWOOFER (REAR PANEL) MIXER... -
Page 17: Surround Sound Systems
SURROUND SOUND SYSTEMS LEFT SPEAKER CENTER SPEAKER RIGHT SPEAKER (REAR PANEL) (REAR PANEL) (REAR PANEL) SUBWOOFER (REAR PANEL) COMPUTER AUDIO INTERFACE COMPUTER AUDIO SYSTEM LEFT RIGHT SURROUND SPEAKER SURROUND SPEAKER (REAR PANEL) (REAR PANEL) -
Page 18: Section 7: Troubleshooting
When you find a practical position that provides the desired bass response, try placing the subwoofer at that location. If the above measures do not correct the problem, please contact JBL Professional Customer Service for assistance. -
Page 19: Section 8: Specifications
Section 8: Specifications 305P 306P 308P LSR310S Frequency Range 27Hz 43Hz – 24kHz 39Hz – 24kHz 37Hz – 24kHz (-10dBV): 1725Hz 4th Order Acoustic 1425Hz 4th Order Acoustic 1800Hz 4th Order Acoustic Crossover: - - - Linkwitz-Riley Linkwitz-Riley Linkwitz-Riley Maximum Continuous SPL: 94 dB* 98 dB* 102 dB*... -
Page 20: Section 9: Jbl Service Contact Information
ON THE WORLD WIDE WEB: www.jblpro.com PROFESSIONAL CONTACTS, OUTSIDE THE USA: Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com EN DEHORS DES ETATS-UNIS: Contacter votre Distributeur JBL Professional. Une liste complète de nos distributeurs internationaux est disponible sur le site web—www.jblpro.com... -
Page 21: Section 10: Product Warranty Information
Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411). We may direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way, you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization. - Page 22 Part Number: 5096517-00-A...
