172 C 13: C
HAPTER ONFIGURING
Defining Bandwidth
Settings
Q S
UALITY OF ERVICE
The Bandwidth Setup Page allows network managers to define the
bandwidth settings for a specified interface. Interface shaping can be
based on an interface. Shaping is determined by the lower specified
value. The interface shaping type is selected in the Bandwidth Setup
Page.
The monitor user has no access to this page.
To configure Bandwidth Settings:
1 Click Device > QoS > Bandwidth > Setup. The Bandwidth Setup Page
opens:

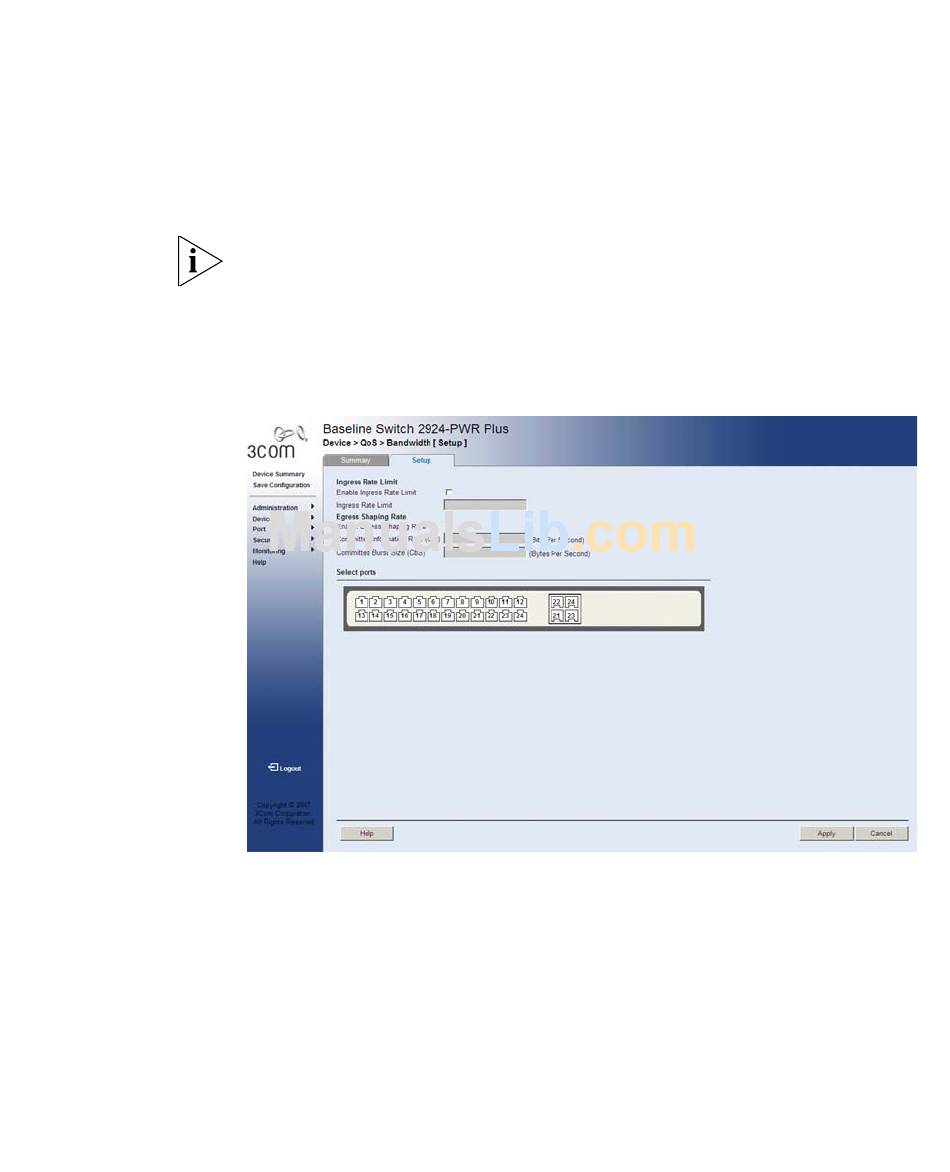

Figure 85 Bandwidth Setup Page
The Bandwidth Setup Page contains the following fields:
Ingress Rate Limit
Enable Ingress Rate Limit — Enables setting an Ingress Rate Limit.
■
Ingress Rate Limit — Defines the ingress traffic limit for the port. The
■
field range is 3,500-1,000,000 kbits per second.
