Viewing Port The Port Statistics Summary Page contains fields for viewing information
Statistics about device utilization and errors that occurred on the device.
To view RMON statistics:
1 Click Port > Statistics > Summary. The Port Statistics Summary Page
opens:

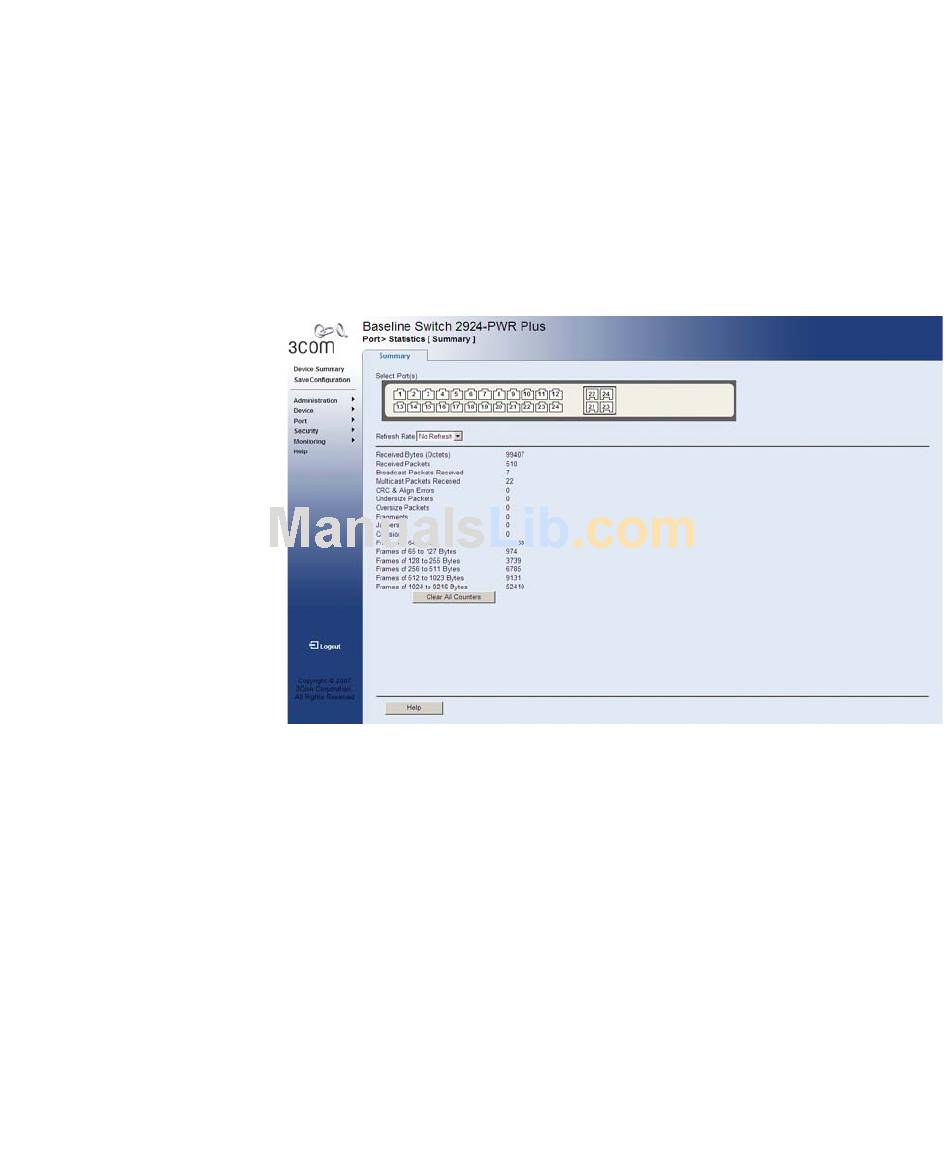

Figure 100 Port Statistics Summary Page
The Port Statistics Summary Page contains the following fields:
■
■
Select Port — Selects the specific port for which RMON statistics are
displayed.
Refresh Rate — Defines the amount of time that passes before the
interface statistics are refreshed. The possible field values are:
No Refresh — Indicates that the port statistics are not refreshed.
■
15 Sec — Indicates that the port statistics are refreshed every 15
■
seconds.
30 Sec — Indicates that the port statistics are refreshed every 30
■
seconds.
60 Sec — Indicates that the port statistics are refreshed every 60
■
seconds.
