Removing Arp Entries - 3Com 2924-PWR User Manual

130 C 9: C
HAPTER ONFIGURING
Removing ARP
Entries
IP MAC A
AND DDRESS
The ARP Settings Remove Page provides parameters for removing ARP
entries from the ARP Table.
The monitor user has no access to this page.
To remove ARP entries:
1 Click Administration > ARP Settings > Remove. The ARP Settings
Remove Page opens:

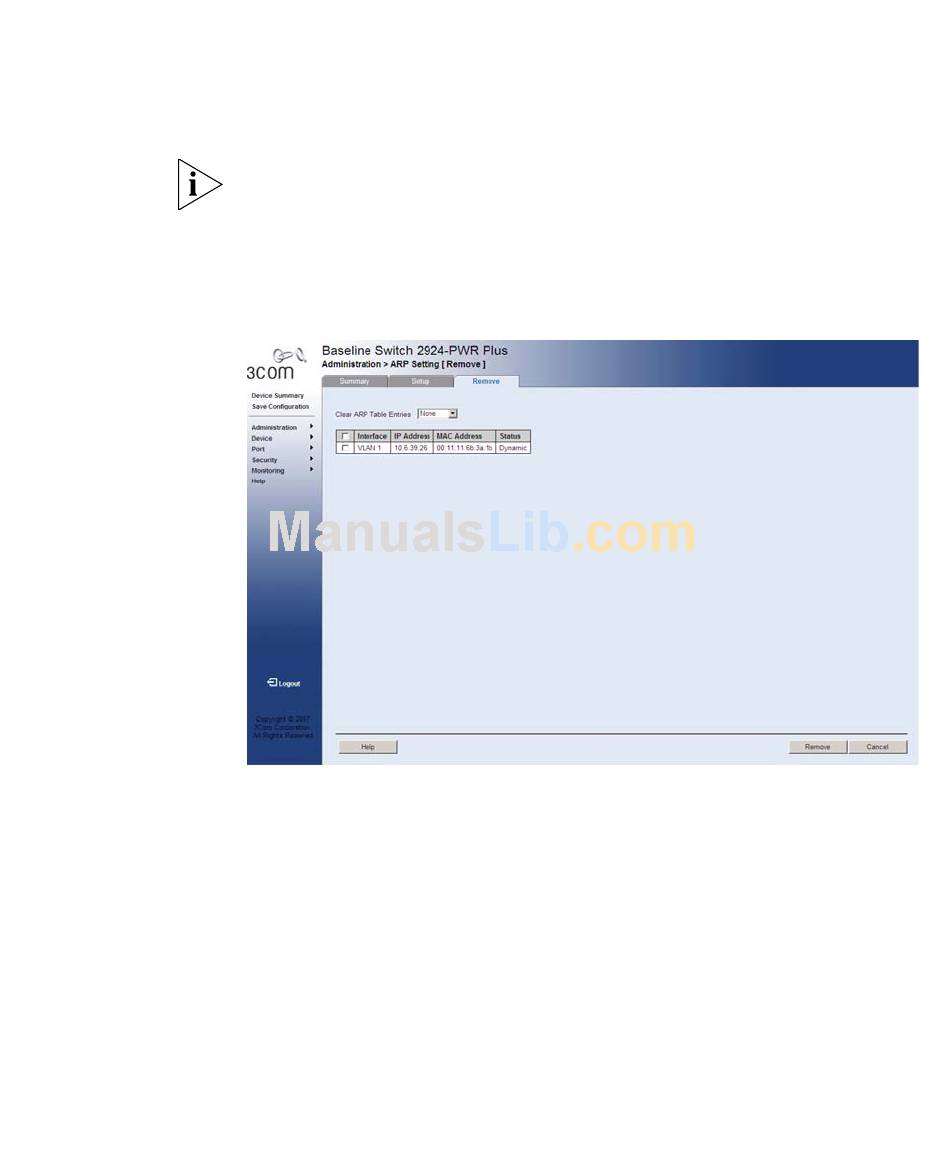

Figure 62 ARP Settings Remove Page
The ARP Settings Remove Page contains the following fields:
Clear ARP Table Entries — Specifies the types of ARP entries that are
■
cleared. The possible values are:
None — Maintains the ARP entries.
■
All — Clears all ARP entries.
■
Dynamic — Clears only dynamic ARP entries.
■
Static — Clears only static ARP entries.
■
Checkbox (unnamed) — Selects the ARP entry for removal.
■
Interface — Indicates the VLAN for which ARP parameters are
■
defined.
IP Address — Indicates the station IP address which is associated with
■
the MAC address.
I
NFORMATION
