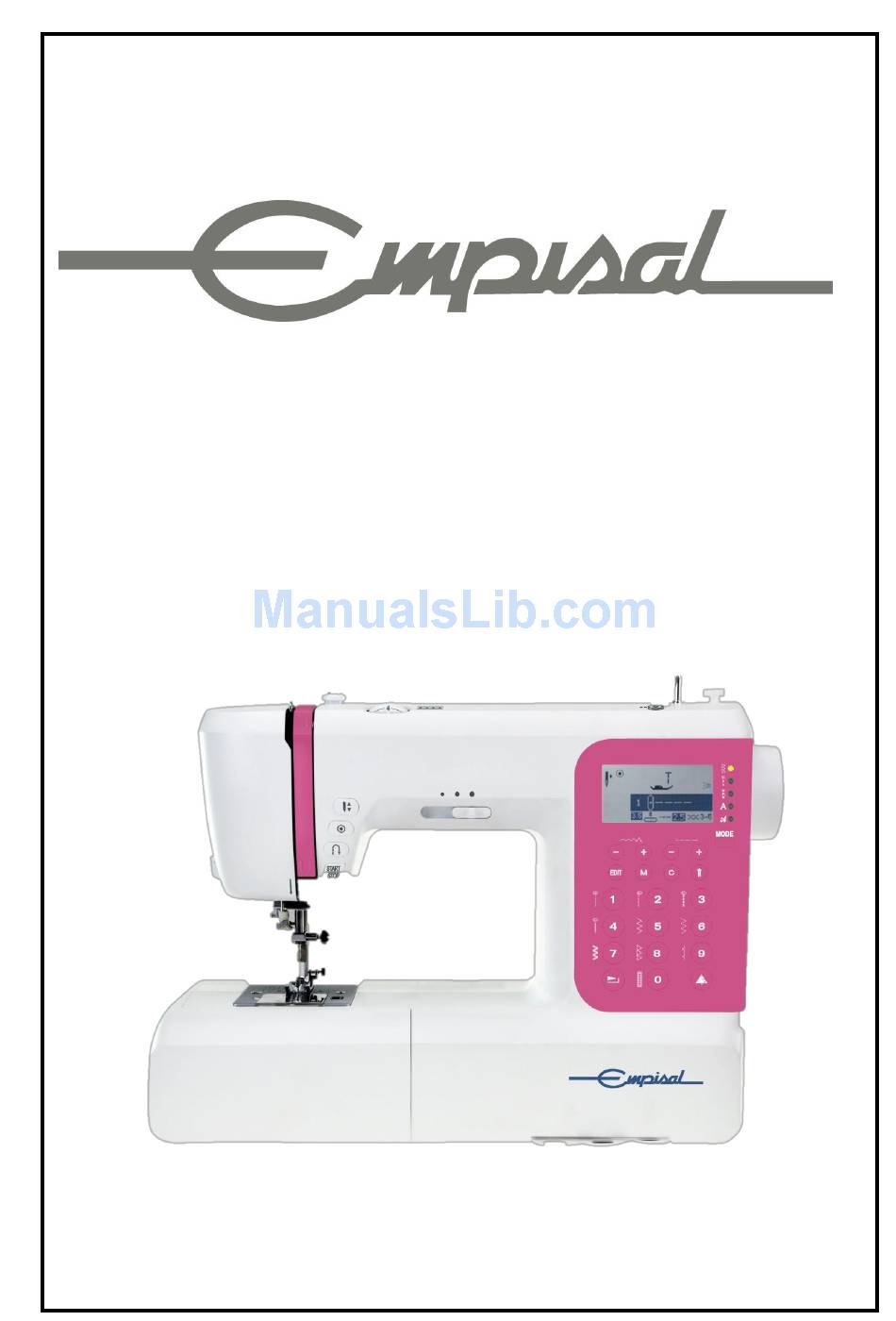

Page 1: Instruction Manual
Instruction Manual Empisal Electronic Sewing Machine EES50 Instruction Manual... - Page 2 Important safety instructions When using an electrical appliance, basic safety should always be followed, including the following: Read all instructions before using this sewing machine. DANGER - To reduce the risk of electric shock: 1. An appliance should never be left unattended when plugged in. 2.
- Page 3 Important safety instructions 18.Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. 19.Contact your local government for information regarding the collection systems available. 20.If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
-
Page 4: Table Of Contents
Contents PRINCIPAL PARTS OF THE MACHINE ........... . . 1 MACHINE CONTROL BUTTONS . - Page 5 Contents OVERCASTING STITCHES ............. 35 Using the overcasting foot .
-
Page 6: Principal Parts Of The Machine
Principal parts of the machine Tension dial Speed limiting Bobbin winder spindle adjustment lever Needle up/down position button LCD screen Auto-lock button Reverse button Start/stop button Function buttons Thread cutter Selection buttons Buttonhole lever Function buttons Auto needle threader Bobbin cover plate Stitch pattern plate Sewing table and accessory box... -
Page 7: Machine Control Buttons
Machine Control Buttons A. Operation buttons (see page 24/25) 1. Start/stop button Press this button to start or stop the machine. 2. Reverse button Hold down this button to sew stitches in reverse or sew reinforcement stitches at a low speed. 3. -
Page 8: Selection Buttons
Machine Control Buttons 7. Stitch length adjustment buttons Press this button to adjust the length of the stitch. 8. Twin needle button Press this button to fix the width range when using the twin needle to sew. 9. Mirror button Press this button to sew a reflection pattern. -
Page 9: Lcd Screen
LCD Screen Pattern Twin needle Suggested presser foot and identification letter Reverse Auto-lock Bobbin winding Needle up Buttonhole lever position Sound on Pattern Needle position Tension Stitch length Auto-stop Mirror S S o o u u n n d d o o f f f f Needle down position Pattern... - Page 10 LCD Screen Memory Editing patterns Edit mode Pattern to edit EDIT Memory group Number of current unit Total number of unit Sewing the memorized pattern Memory mode Elongation Elongation Amount of elongation...
-
Page 11: Pattern Chart
Pattern Chart The portion marked in colored on the chart below shows the one unit of each pattern. Patterns Direct Patterns-10 A Group Patterns-100 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79... -
Page 12: Pattern Chart
Pattern Chart 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 Alphabets Block style... -
Page 13: Accessories
Accessories Standard 1. All purpose foot (T) 2. Zipper foot (I) 3. Buttonhole foot (D) 4. Overcasting foot (E) 006186008 006905008 006H1A0004 006907008 5. Blind hem foot (F) 6. Satin stitch foot (A) 7. Button sewing foot 8. Bobbin (3x) 006904008 006172008 006914008... -
Page 14: Connecting The Machine To The Power Source
Connecting the machine to the power source Caution: Always make sure that the machine is unplugged from power source and the main switch is on ("O"). when the machine is not in use and before inserting or removing parts. After switching off, it will take some time to consume the residual power in the circuitry.The light does not turn off immediately after switching off the power. -
Page 15: Winding The Bobbin
Winding the bobbin Place the thread and spool holder onto the spool pin. For smaller spools of thread, place spool holder with the small side next to the spool or use the small spool holder. Snap the thread into the thread guide . Wind the thread contrary clockwise around the bobbin winder tension discs. - Page 16 Winding the bobbin When the bobbin winder spindle is pushed to the right, which is the "bobbin winding position", the symbol " " appears on the LCD screen. The symbol will disappear from the LCD screen when the bobbin winder spindle is pushed to the left, which is the "sewing position".
-
Page 17: Inserting The Bobbin
Inserting the bobbin Attention: Turn power switch to off ("O") before inserting or removing the bobbin. When inserting or removing the bobbin, the needle must be fully raised. Open the needle plate cover. Insert the bobbin in the bobbin case with the thread running in a counterclockwise direction (arrow). -
Page 18: Threading The Upper Thread
Threading the upper thread Please Note: It is important to carry out the threading correctly as by not doing so several sewing problems could result. Start by raising the needle to its highest point, and also raise the presser foot to release the tension discs. Place the thread and spool holder onto the spool pin. -
Page 19: Threading The Upper Thread
Threading the upper thread Guide the thread around the thread guide pulling the thread through the pre-tension spring as illustrated. Thread the tension module by passing the thread between the silver discs. Then, down and around the check spring holder. At the top of this movement, pass the thread from right to the left through the slotted eye of the take-up lever and then downwards again. -
Page 20: Using The Needle Threader
Using the needle threader Attention: Turn power switch to the off position ("O"). Raise the needle to its highest position and lower the presser foot. Lower the needle threader lever slowly and draw the thread through the thread guide as illustrated and then to the right. -
Page 21: Raising Up The Lower Thread
Raising up the lower thread Hold the upper thread with the left hand. Tu rn the handwheel towards you (counterclockwise) lowering, then raising the needle. Gently pull on the upper thread to bring the bobbin thread up through the needle plate hole. -
Page 22: Two-Step Presser Foot Lifter
Two-step presser foot lifter The presser foot lifter raises and lowers your presser foot. When sewing several layers or thick fabrics, the presser foot can be raised a second stage for easy positioning of the work. Please Note: The needle must always be at the highest position. -
Page 23: Starting Sewing
Starting sewing Start/stop button The machine will start running when Start/stop button is pressed and will stop when pressed the second time. The machine will rotate slowly at the beginning of the sewing. The speed limiting adjustment lever can control the sewing speed. To increases the speed, slide the lever to the right , To decrease the sewing speed, slide the lever to the left. -
Page 24: Thread Tension
Thread tension - Basic thread tension setting: "4" Tight Loose - To increase the tension, turn the dial to the next number up. To reduce the tension, turn the dial to the next number down. - Proper setting of tension is important to good sewing. - For all decorative sewing you will always obtain a nicer stitch and less fabric puckering when the upper thread appears on the bottom side of your fabric. -
Page 25: Changing The Presser Foot
Changing the presser foot Attention: Turn power switch to off ("O") when carrying out any of the below operations! Attaching the presser foot holder Raise the presser foot bar (a). Attach the presser foot holder (b) as illustrated. Attaching the presser foot Lower the presser foot holder (b) until the cut-out (c) is directly above the pin (d). -
Page 26: Type Of Presser Foot Chart
Type of presser foot chart PRESSER FOOT APPLICATION NEEDLE PRESSER FOOT APPLICATION NEEDLE General sewing, Satin stitch sewing Patchwork stitches, Decorative stitching, Smocking, Fagoting, etc. All purpose foot (T) Satin stitch foot (A) Inserting zippers Zipper foot (I) Buttonhole sewing, Quilting Darning-stitch sewing Quilting foot (P) -
Page 27: Matching Needle/ Fabric/ Thread
Matching needle/ fabric/ thread NEEDLE, FABRIC, THREAD SELECTION GUIDE NEEDLE SIZE FABRICS THREAD 9-11 (70-80) Lightweight fabrics-thin cottons, voile, Light-duty thread in cotton, nylon, serge, silk, muslin, Qiana, interlocks, polyester or cotton wrapped cotton knits, tricot, jerseys, crepes, woven polyester. polyester, shirt &... -
Page 28: Replacing The Needle
Replacing the needle Attention: Turn power switch to off ("O") when carrying out any of the above operations! Change the needle regularly, especially if it is showing signs of wear and causing problems. Insert the needle following the illustrated instructions. A. -
Page 29: Operation Buttons
Operation buttons Needle up/down position button Auto-lock button Reverse button Start/stop button Start/stop button The machine will start running when start/stop button is pressed and will stop when pressed the second time. The machine will rotate slowly at the beginning of sewing. The sewing speed will increase slowly until reaching the speed setting selected with the speed limiting adjustment lever. -
Page 30: Auto-Lock Button
Operation buttons Auto-lock button When Direct Patterns 1-4, and A Group Pattern 00 are selected, the machine will immediately sew 3 locking stitches when the A u t o - l o c k b u t t o n i s p r e s s e d , t h e n automatically stop. -
Page 31: Function Buttons
Function buttons Stitch width adjustment buttons Mode selection button Stitch length adjustment buttons Twin needle button Mirror button Elongation button Stitch width adjustment button When you select a stitch, the machine will automatically set the recommended stitch width, which will be indicated by numbers on the LCD screen. -
Page 32: Stitch Length Adjustment Button
Function buttons Stitch length adjustment buttons When you select a stitch the machine will automatically set the recommended stitch length which will be indicated by numbers on the LCD screen. The stitch length can be adjusted by pressing the stitch length adjustment buttons. -
Page 33: Mirror Button
Function buttons Mirror button (see page 60) The Direct Patterns 1-9, A Group Patterns 00-13, 28-99, and B Group Patterns 00-99 can be mirror imaged along a vertical axis by pressing the " " button. The machine will continue to sew the reflected pattern until the mirror button is pressed again. -
Page 34: Selection Buttons
Selection buttons Edit button Memory button Clear button Direct pattern selection and number buttons Direct pattern selection and number buttons Direct pattern selection Press the buttons to select the utility patterns shown beside the number button when the mode button is set at the Direct mode. Number buttons To select the desired pattern and press the number buttons . -
Page 35: Edit Button
Selection buttons Edit button If you wish to modify any settings in the – memory mode, use the stitch width " + " or " " button to select the pattern to be modified, and press the " " button to set the selected pattern under the editing mode, the LED light will turn on. -
Page 36: Useful Skills
Useful skills Sewing corners 1. Stop the sewing machine when you reach a corner. 2. Lower the needle into the fabric manually or by pressing the needle up/ down button once. 3. Raise the presser foot. 4. Use the needle as a pivot and turn the fabric. -
Page 37: Installing The Extension Table
Useful skills Installing the extension table * The Extension table accessory is optional. It is not included with this machine. Pull the sewing table and accessory box off by sliding it to the left. Follow the arrow, and stretch the foot of the extension table. -
Page 38: Needle Position And Stitch Length
Needle position and stitch length A-00 Changing the needle position These setting apply only to Direct Patterns 1-4, or A Group Pattern 00. The pre-set position is "3.5", – center position. When you press the " " of stitch width adjustment button, the needle position will be moved to the left. -
Page 39: Stretch Stitches
Stretch stitch Use this stitch with knitted, tricot or other Straight stretch stitch stretchy fabrics. The stitch enables your seam to stretch without breaking the thread. Good for easy to ravel and knit fabrics. It is good for joining durable fabric such as denims. -
Page 40: Overcasting Stitches
Overcasting stitches Sewing overcasting stitches along the edges of fabric to prevent them from fraying. Using the overcasting foot 5.0~7.0 2.0~3.0 Change the presser foot to the overcasting foot (E). Sew the fabric with the fabric edge against the guide of the overcasting foot. Attention: The overcasting foot should be used to sew with patterns 05 and 08 only and do not set... -
Page 41: Blind Hems
Blind hem Secure the bottoms of skirts and pants with a blind hem, this stitch will sew without stitches showing on right side of fabric. 9: Blind hem for woven fabrics A-03 A-04 A-03: Blind hem for stretch fabrics A-04: Blind hem for stretch fabrics 2.5~4.0 1.0~2.0 Please Note:... -
Page 42: Button Sewing
Button sewing 2.5~4.5 Select the pattern 25 from the Group Patterns "A" to get the button sewing stitch. Change the presser foot to the button sewing foot. Move the drop feed lever to " " to lower the feed dogs. Position the work under the foot. -
Page 43: Buttonhole Stitching
Buttonhole stitching Buttonhole sewing to match the size of the button is possible. For stretch fabric or thin fabric, it is recommended to use a stabilizer for a better buttonhole finish. 0: For light to medium weight fabrics A-14: For light or medium weight fabrics 2. - Page 44 Buttonhole stitching Pull the buttonhole lever all the way down and position it behind the bracket on the buttonhole foot. Please Note: When you select any buttonhole pattern, the LCD screen will display the figure " ", to remind you to lower the buttonhole lever. Before sewing, please hold the thread by hand.
- Page 45 Buttonhole stitching * Buttonholes are sewn from the front of the presser foot to the back, as shown. A-17 A-14 A-16 A-19 A-15 A-18 A-20 A-21 Raise the presser foot and cut thread. To sew over same buttonhole, raise the presser foot (will return to original position).
-
Page 46: Making A Buttonhole On Stretch Fabrics
Buttonhole stitching Cut the center of the buttonhole being careful not to cut any stitches on either side. Use a pin as a stopper at the bar tack so you do not cut too much. Please Note: When cutting the buttonhole with the seam ripper, do not place your hands in the cutting direction, otherwise injuries may result. -
Page 47: Bar Tack Stitch
Bar tack stitch A-22 .0-3.0 0.3- .0 1 Select pattern 22 of from the Group Patterns "A" to get the bar tack stitch. Change the presser foot to the buttonhole foot. 2 Pull the button holder to the rear. Set the button guide plate on the buttonhole foot to the desired length. -
Page 48: Eyelet Stitch
Eyelet Stitch Eyelet stitches are used for making belt holes and other similar applications. A-23: Select for sewing eyelets on belts , etc A-23 A-24 A-24: Select for sewing eyelets on belts , etc .0 6.0 7.0 Select pattern 23 or 24 from the Group Patterns "A"... -
Page 49: Darning Stitch
Darning stsitch A-26 A-27 3. -7.0 .0-2.0 Select pattern 26 or 27 from the Group Patterns "A" to get the darning stitch. Change the presser foot to the buttonhole foot. Baste the upper fabric and the under fabric together. Select the needle position. Lower the presser foot over the center of the tear. -
Page 50: Darning Stitch
Darning stitch Position the fabric so that the needle is 2mm (1/16 inch) in front of the area to be darned, and then lower the presser foot lever. Please Note: When lowering the presser foot, do not push in the front of the presser foot, otherwise the darning will not be sewn with the correct size. -
Page 51: Zipper Insertion
Zipper insertion This foot can be set to sew on each side of the zipper, the The edge of the foot guides the zipper to ensure straight placement. Attention: Zipper foot should be used for sewing width center needle position straight stitch only. It 1.5~3.0 is possible that needle could hit the presser foot and break when sewing other patterns. -
Page 52: Inserting A Lapped Zipper
Zipper insertion Inserting a side zipper Place the right sides of the fabric together. Sew a bottom seam 2cm from the right edge to the zipper bottom stop position. Sew a Reverse few stitches in reverse to lock. Increase the stitches stitch length to maximum, set the tension below 2, and baste the remaining length of... -
Page 53: Narrow Hemming
Narrow hemming The hemmer foot is used to stitch the narrow rolled hems usually found on shirt tails, table linens and along the edge of frills. * The Hemmer foot accessory is optional. It is not included with this machine. 1.5~3.0 Fold edge of fabric over about 3mm (1/8 inch), then fold it over again 3mm (1/8 inch) for... -
Page 54: Cording
Cording Used for embellishing 1 to 3 cords or decorative threads. Sew over one strand of cording to create a pretty swirled design on a jacket or vest or sew over three strands of cording for border trims. Pearl cotton, knitting yarn, embroidery floss, lace thread, fine wool or lily yarn can be used for cording. -
Page 55: Satin Stitch Sewing
Satin stitch sewing A-28 A-29 A-30 A-31 A-32 A-33 A-34 A-35 A-36 A-37 A-38 A-39 A-40 A-41 A-42 A-43 3. -7.0 0. -2.0 A-44 A-45 A-46 A-47 A-48 A-49 A-50 A-51 A-52 A-53 A-54 A-55 A-56 A-57 A-58 A-59 A-60 Use the satin stitch foot for satin stitching and sewing decorative stitches. -
Page 56: Quilting
Quilting Sandwiching batting between the top and bottom layers of fabric is call "Quilting". The top layer is usually formed by multiple geometrically shaped pieces of materials joined together. 1.0~3.0 * The Quilting foot accessory is optional. It is not included with this machine. Insert the edge/quilting guide in the presser foot holder as illustrated and set the space as you desire. -
Page 57: Gathering
Gathering The Gathering Foot is used for gathering fabrics. Ideal for clothing as well as home decor, works best on thin to medium weight fabrics. * The Gathering foot accessory is optional. It is not included with this machine. Gathered fabric Remove the presser foot holder and attach the gathering foot, lowering the tension setting to below 2. -
Page 58: Smocking
Smocking The decorative stitch created by stitching or embroidering over gathers is called "smocking". It is used to decorate the front of blouses or cuffs. The smocking stitch adds texture and elasticity to fabric. A-09 A-10 Use the all purpose foot to sew basting lines 1cm (3/8 inch) apart, across the area to be smocked. -
Page 59: Free Motion Darning, Embroidery And Monogramming
Free motion darning, embroidery and monogramming * The Darning/ Embroidery foot accessory is optional. It is not included with this machine. 3.5~5.0 Move the drop feed control to " " to lower the feed dogs. Remove the presser foot holder, and attach the darning foot to the presser foot holder bar. -
Page 60: Embroidery
Free motion darning, embroidery and monogramming Embroidery Select zigzag stitch pattern and adjust the stitch width as desired. Stitch along the outline of the design by moving the embroidery hoop. Make sure to maintain a constant speed. Fill in the design working from the outline towards the inside. -
Page 61: Walking Foot
Walking foot * The walking foot accessory is optional. It is not included with this machine. Always try to sew first without the walking foot accessory which should be used only when necessary. It is easier to guide the fabric and you have a better view of the seam when using the standard, regular foot on your machine. -
Page 62: Fagoting
Fagoting Stitching across an open seam is called "fagoting". It is used on blouses and children's clothing. This stitch is more decorative when thicker thread is used. A-08 A-06 Separate the folded edges of the fabric pieces with a gap of 4mm (1/8 inch) and baste them onto a piece of thin paper or water-soluble stabilizer sheet. -
Page 63: Scalloping
Scalloping The wave-shaped repeating pattern that looks like shells is called "scalloping". It is used on the collars of blouses and to decorate the edges of projects. Scallop hem A-12 Fold the fabric right side together in and sew along the edge. Cut the fabric along the seam leaving an allowance of 3mm (1/8 inch) for seaming. -
Page 64: Elongation
Elongation A-28 A-29 A-30 A-31 A-32 A-33 A-34 A-35 A-36 A-37 A-38 A-39 2. -7.0 0.3- .0 A-40 A-41 A-42 A-43 A-44 A-45 A-46 A-47 A-48 A-49 A-50 A-51 1 The stitches shown in the diagram above can be elongated up to five times the normal length by pressing the elongation button. -
Page 65: Mirror Image
Mirror image Please Note: - The Direct Patterns " " and A Group Patterns 14-27 cannot be mirror imaged. - Mirror imaged patterns can also be combined with other patterns. 1 Select the pattern. 2 Pressing the mirror button. 3 The LCD screen icon for mirror imaging of the pattern appears. -
Page 66: Using The Twin Needle
Using the twin needle Please Note: When using twin needles, use the " T " presser foot regardless 2.0- .0 of what kind of sewing will be carried out. 1 Insert the twin needle. Attention: When using twin needles, use the all purpose foot (T) regardless of what kind of sewing foot will be carried out. -
Page 67: Memory
Memory Combined patterns can be stored for later use. Since stored patterns are not lost after the sewing machine is turned off, they can be recalled at any time. This is convenient for patterns such as names, which may be used frequently. Please Note: - Multiple patterns selecting from pattern modes can be combined and sewn... -
Page 68: Adding Patterns Or Letters
Memory Press the desired pattern number. (e.g. 60) The selected pattern displays on the LCD screen. Repeat step 5, 6 for more patterns to be stored in the memory. Please Note: When the memory the full with 20 units of patterns, the machine will beep to signal it. -
Page 69: Editing Patterns
Memory Editing patterns Use the stitch width adjustment button to select the pattern that you wish to edit while in the memory mode. Press the " " button to edit the pattern. The stitch length, stitch width, Elongation, Mirror, and Auto-lock of the patterns can be adjusted manually. -
Page 70: Recalling And Sewing The Memorized Pattern
Memory Recalling and sewing the memorized pattern Press the " " button to enter memory mode and then input the number of memory module when the cursor start flashing. Input the number of memory module. (e.g. 2) LCD sc reen shows the first pattern of the selected memory module. - Page 71 Memory...
-
Page 72: Warning Functions
Warning functions Warning animation message display The sewing machine is experiencing a problem The animation message means that the thread is twisted or jammed and the hand wheel axle cannot move. Please look through the "Trouble shooting guide" on page 71 or 72 to find the solution. After the problem has been solved, the machine will continue to sew. -
Page 73: Warning Beeping Sound
Warning functions Warning beeping sound - When operating correctly: 1 beep - When operating incorrectly: 3-short beeps - When the sewing machine is in trouble and can't sew: 3-short beeps It means that the thread is twisted or jammed and the hand wheel axle can't move. Please look through the "Trouble shooting guide"... -
Page 74: Buzzer Sound
Buzzer sound 1 Press on the " " button and turn on the power switch at the same time. 2 You can select the mode by pressing the stitch width " + " or " - " button. Select desired mode sound on " "or sound off "... -
Page 75: Maintenance
Maintenance Attention: Disconnect the power cord from the wall socket before cleaning the screen and sewing machine surface, otherwise injury or electrical shock may result. Cleaning the screen If the front panel is dirty, wipe it gently with a soft, dry cloth. Do not use any organic solvents or detergents. - Page 76 Maintenance Remove the needle, presser foot and presser foot holder. Remove the screw holding the needle plate and remove the needle plate. Clean the feed dog and bobbin case with a brush. Also clean them, using a soft, dry cloth.
-
Page 77: Trouble Shooting Guide
Trouble shooting guide Before calling for service, check the following items. If the problem still persists, contact the place of purchase or your nearest authorized dealer. Problem Cause Correction Reference 1.The machine is not threaded correctly. 1.Rethread the machine. Page 13 2.The thread tension is too tight. - Page 78 Trouble shooting guide Problem Cause Correction Reference 1.The needle thread tension is too tight. 1.Loosen the thread tension. Page 19 2.The needle thread is not threaded 2.Rethread the machine. Page 13 correctly. Seam puckering 3.The needle is too heavy for the fabric 3.Choose a needle to suit the thread and Page 22 being sewn.
- Page 79 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED W A R R A N T Y Home of Living Brands (Pty) Ltd (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the...
- Page 80 JOHANNESBURG TEL NO. (011) 490-9600 CAPE TOWN TEL NO. (021) 552-5161 DURBAN TEL NO. (031) 792-6000 www.homeoflivingbrands.com Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
