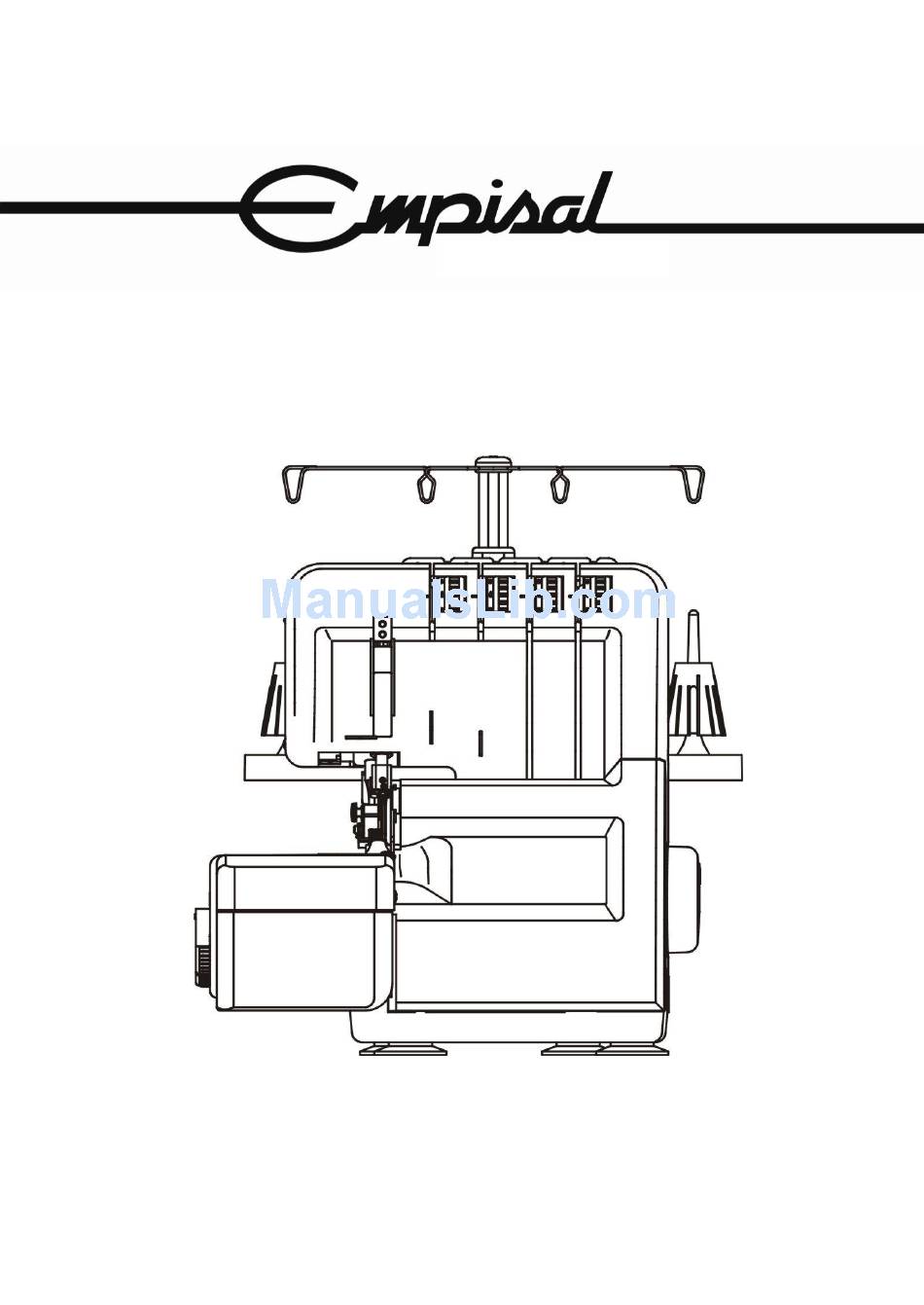

INSTRUCTION MANUAL

your creative assistant
MODEL: 760
EMPISAL COMPLETE FREE ARM OVER LOCKER
- 0 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 760 and is the answer not in the manual?

Questions and answers

Summary of Contents for Empisal 760

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL your creative assistant MODEL: 760 EMPISAL COMPLETE FREE ARM OVER LOCKER - 0 -...
  • Page 2: Safety Instructions

    Safety instructions Like any other electrical device, a sewing machine can cause serious, even life-threatening injuries. To avoid this, and in order to work safely: • Before initial use of your sewing machine, read these operating instructions thoroughly. • Keep the operating instructions in a suitable place near the machine. When passing the appliance on to others, always enclose the operating instructions.
  • Page 3 • Keep your work space tidy. An untidy workplace can lead to accidents. • Provide adequate lighting when working! • Do not wear loose clothing or jewelry, as these can be caught in the moving parts. You should also wear a hair net if you have long hair. •...
  • Page 4: For Your Safety

    INTRODUCTION THANK YOU FOR CHOOSING OUR OVERLOCK MACHINE This overlock machine can stitch dependable seams on all kinds of fabric, both light and heavy, including cotton, wool, rayon, tricot, jersey, and knits. You do not need a special table for this portable machine. We suggest that you read this instruction manual carefully before you start to operate the machine.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS NAME OF MAIN COMPONENTS ..................5-6 SETTING UP YOUR MACHINE ..................7-9 The position of thread stand ................... 7 Cotton holders ....................... 7 Spool caps ......................7 Connecting the foot control ..................8 Controlling sewing speed ..................8 Safety switch......................8 ACCESSORIES .........................
  • Page 6: Name Of Main Components

    NAME OF MAIN COMPONENTS 1. Thread stand 2. Lower looper thread tension dial 3. Spool pin 4. Spool holder 5. Handwheel 6. Base 7. Machine socket 8. Power switch 9. Front cover 10. Support bed 11. Free arm 12. Needle plate 13.
  • Page 7 1. Upper looper 2. Lower looper 3. Free arm 4. Lower knife 5. Cutting width adjustment knob 6. Presser foot 7. Upper knife - 6 -...
  • Page 8: Setting Up Your Machine

    SETTING UP YOUR MACHINE Set your Overlock machine on a sturdy flat surface. Positioning catches [ THE POSITION OF THREAD STAND ] Pull up thread stand to its highest point before threading. Turn the thread stand so the thread guides come right above the spool pins.
  • Page 9: Connecting The Foot Control

    [ CONNECTING THE FOOT CONTROL ] Push foot control plug into the machine socket and then into main socket. Turn on the power switch. This power switch controls both the machine power and sewing light. Machine socket Power supply plug Power switch Machine plug Power supply...
  • Page 10: Accessories

    ACCESSORIES Brush Tweezers Spare upper cutter Hexagon wrench key Machine cover Screwdriver Needles Instruction manual Spool caps - 9 -...
  • Page 11: Using The Machine

    USING THE MACHINE [ HAND WHEEL ] Always turn handwheel toward you, i.e. the same direction as on a household sewing machine. [ FRONT COVER ] To open front cover, slide the hollow to the right as far as it will go then pull front cover toward you.
  • Page 12: Looper Threading

    LOOPER THREADING Warning: Before contriving please adjust main control switch to (OFF). Correct threading is important otherwise uneven stitches or thread breakage may result. A convenient threading chart is placed on the front panel inside the front cover. In addition, each thread guide is coloured for threading indication.
  • Page 13: Needle Threading

    NEEDLE THREADING 5. Turn the hand wheel toward you until needles are fully raised. 6. Pass the right and left needle threads as illustrated. Important: The thread must lie correctly Error! between the two discs inside the tension dials. Pass through the needle eyes from front to back as illustrated.
  • Page 14: Trial Sewing

    TRIAL SEWING When the overlock has been threaded for the first time or re-threaded because of thread breakage during sewing, start sewing in the following manner. Holding the end of threads between your left finger tips, turn the handwheel slowly toward you two or three times and check the thread chain.
  • Page 15: Adjusting Thread Tensions

    ADJUSTING THREAD TENSIONS Thread tensions will vary according to the type and thickness of both thread and fabric. Adjust the thread tension of the machine accordingly while checking the seam. Thread tension: Turn dial toward smaller numbers, tension becomes loose. Turn dial toward larger numbers, tension becomes tight.
  • Page 16: Adjusting The Needle Thread Tensions

    It is necessary to adjust the thread tension for the seams shown below. [ ADJUSTING THE NEEDLE THREAD TENSIONS ] The right needle thread tension is too loose. The left needle thread tension is too loose. Back side Back side Front side Front side Tighten the right needle thread tension.
  • Page 17: Machine Adjustment Chart

    MACHINE ADJUSTMENT CHART The best tension for one fabric may not be correct for another. The required tensions depend upon stiffness and thickness of fabric, thread size and type. If necessary, readjust referring to the chart below. Fabrics Threads Needle Stitch length Standard Setting Light-weight...
  • Page 18: Changing The Thread

    CHANGING THE THREAD (TYING ON) It is simple to change the thread in the following manner. Cut the thread above the spool pin, and knot ends of old and new threads together. Set the tension dials to "O" and raise the presser foot.
  • Page 19: Adjustment Of Stitichstitch Length

    ADJUSTMENT OF STITCH LENGTH There are nine setting adjustments which can be made from 1.0 to 5.0 mm. Most overlock work is done with a basic stitch length setting of 2.5-3.5 mm. Stitch length adjustment knob (lnner dial) [ STITCH LENGTH SETTING ] Stitches Stitch length 2.0 –...
  • Page 20: Cutting Width

    CUTTING WIDTH The proper cutting width differs with the type of fabric. Check the seams each time, and adjust the cutting width as follows. 1. Turn the hand wheel toward you until the needles are at the lowest position. 2. Open the front cover and free arm. 3.
  • Page 21: Changing The Needle

    CHANGING THE NEEDLE Turn the power switch to "OFF" Hexagon wrench key before changing the needles. Do not use any needle which is bent or blunt. 1. Turn the hand wheel toward you until the needles are fully raised. 2. Open the front cover and lower the presser foot.
  • Page 22: Replacing The Cutters

    REPLACING THE CUTTERS Turn the power switch to "OFF" before replacing the cutter blades. The lower cutter is made of special material and does not usually need t o be replaced. However, should it become damaged, it can be replaced by your local dealer. To replace the upper cutter when it becomes blunt: 1.
  • Page 23: Three Thread Narrow And Wide Overlock Stitch

    THREE THREAD NARROW AND WIDE OVERLOCK STITCH This machine is a 3/4 thread convertible overlock. Hexagon wrench key Remove either the right or left needle. Your machine is now ready for use as a 3-thread overlock. Refer to "CHANGING THE NEEDLE". 4 mm (0.16”) Using the needle on the right only, the stitch Back side...
  • Page 24: Free Arm Sewing

    FREE ARM SEWING Remove the support bed as illustrated which easily converts from a flat bed to free arm. Convenient for sewing pant legs, sleeves and cuffs, etc. Free arm Support bed CONVERTIBLE PRESSER FOOT The special presser foot, is set for normal overlock with the letter N adjacent to the vertical screw at front of presser foot.
  • Page 25: Rolled And Narrow Edge

    ROLLED AND NARROW EDGE To carry out either of the above sewing tasks proceed as follows. (1) Refer to page 23 for special foot position setting. (2) Turn the hand wheel toward you until needles are fully raised. (3) Open front cover and remover left needle. See page 20. (4) Set stitch length between 1.0-2.0 mm.
  • Page 26: Rolled Hemming

    Important: If necessary, adjust the stitch length and cutting width. Threads Fabrics Rolled hemming Narrow hemming .Georgette .Spun polyester .Spun polyester No. 50 - 80 No. 50 - 80 .Lawn Needle thread .Polyester continuous .Polyester continuous .Crepe-de-chine No. 50 - 80 No.
  • Page 27: Differential Feed

    DIFFERENTIAL FEED The differential feed prevents wavy seams in knitted fabrics and also movement between the layers of fabric. It also ensures pucker-free seams on lightweight fabrics. [ DIFFERENTIAL FEED MECHANISM ] There are two sets of feed teeth, one front and one rear. The two sets of feed teeth move independently.
  • Page 28: Wavy Knits & Gathering

    [ WAVY KNITS & GATHERING ] For perfectly flat seams in stretchy knit garments, the front feed teeth need to feed faster than the rear feed teeth to prevent stretching the fabric. To Gather, the front feed teeth will also need to feed faster than the rear feed teeth.
  • Page 29: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Check items below before calling for service. Problem Cause Corrective action Page 1. Needles are bent, blunt or 1. Replace with new needles. points are damaged. 2. Needles not inserted 2. Insert the needles correctly to Needles break correctly.
  • Page 30: Cleaning And Lubricating

    CLEANING AND LUBRICATING To keep your machine running smoothly ;smoothly; it is necessary to clean using the brush from the accessory box now and then. This machine requires very little lubrication as the main components are made of special materials . Occasionally, lubricate only the points illustrated.
  • Page 31 STORING THE MACHINE  Store the machine in its box or in a clean, dry place.  Never wrap the power cord around the machine. SERVICING THE MACHINE If the unit is not operating correctly, please check the following:  You have followed the instructions correctly. ...
  • Page 32 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER W ARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y 1. Home of Living Brands (Pty) Ltd (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
  • Page 33 760453009 15.03.06 - 32 -...
