EN
User Manual
Microwave combi-oven
EURO Appliances - euappliances.info
KM8403001
KM8403021
KM8403101

Advertisement

loading

  Also See for AEG KM8403001

  Summary of Contents for AEG KM8403001

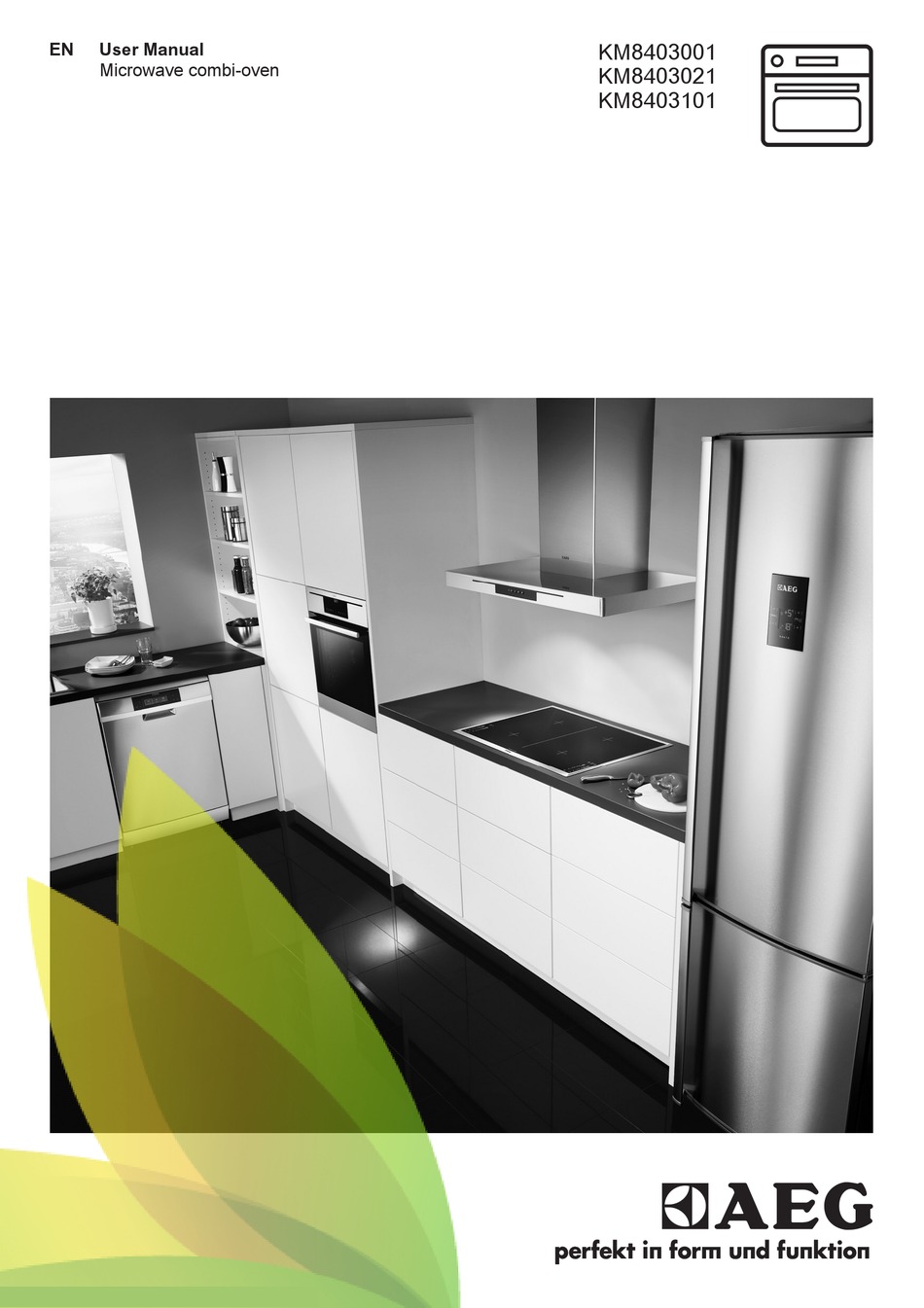

  • Page 1 User Manual KM8403001 Microwave combi-oven KM8403021 KM8403101 EURO Appliances - euappliances.info...
  • Page 2: Table Of Contents

    15. TECHNICAL DATA..................... 43 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 Before maintenance cut the power supply. • Ensure that the appliance is switched off before • replacing the lamp to avoid the possibility of electric shock. Do not use a steam cleaner to clean the appliance. • Do not use harsh abrasive cleaners or sharp metal •...
  • Page 5: Safety Instructions

    ENGLISH If smoke is emitted, switch off or unplug the appliance • and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed • eruptive boiling. Care must be taken when handling the container.
  • Page 6 • Do not let sparks or open flames to without tools. come in contact with the appliance • Connect the mains plug to the mains when you open the door. socket only at the end of the •...
  • Page 7: Product Description

    ENGLISH • Make sure the appliance is cold. for household appliances. Do not use There is the risk that the glass panels it for house lighting. can break. WARNING! • Replace immediately the door glass Risk of electrical shock. panels when they are damaged. Contact the Authorised Service •...
  • Page 8: Control Panel

    3.2 Accessories Baking tray Wire shelf For cakes and biscuits. For cookware, cake tins, roasts. 4. CONTROL PANEL 4.1 Electronic programmer Use the sensor fields to operate the appliance. Sensor Function Comment field Display Shows the current settings of the appliance.
  • Page 9 ENGLISH Sensor Function Comment field Temperature se- To set the temperature or show the current tem- lection perature in the appliance. Touch the field for 3 seconds to activate or deactivate the function: Fast heat up. Down key To move down in the menu. Up key To move up in the menu.
  • Page 10: Before First Use

    Symbol Function Temperature The display shows the temperature. Time Indication The display shows how long the heat- ing function operates. Press at the same time to reset the time. Heat-up Indicator The display shows the temperature in the appliance.
  • Page 11 ENGLISH 6.2 The menus in overview Main menu Sym- Menu item Application Heating Functions Contains a list of heating functions. Assisted Cooking Contains a list of automatic programmes. Basic Settings Used to set other settings. Favourite Programme Contains a list of favourite cooking programmes created by the user.
  • Page 12 6.3 Heating Functions Heating function Application True Fan Cooking To bake on up to 2 shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for the function: Conventional Cooking.
  • Page 13: Energy Saving

    ENGLISH Heating function Application Preserving To make vegetable preserves such as pickles. Drying To dry sliced fruit (e.g. apples, plums, peaches) and vegetables (e.g. tomatoes, zucchini, mush- rooms). Plate Warming To preheat plates for serving. ECO Roasting When you use this function during cooking, it al- lows you to optimize the energy consumption.
  • Page 14: Microwave Mode

    Residual heat possible temperature setting. The In some heating functions if a display shows the residual heat programme with time selection Duration temperature. or End Time is activated and the cooking Eco functions time is longer than 30 minutes, the Refer to "Heating Functions".
  • Page 15 ENGLISH Defrosting fruit, vegetables: only be defrosted or heated in the microwave if they are expressively • If fruit and vegetables should remain designated as suitable for use in the raw, do not defrost them fully in the microwave. appliance but let them defrost •...
  • Page 16 Cookware / Material Microwave Grilling Defrost- Heating Cooking Ready meals in packaging 1) With no silver, gold, platinum or metal plating / decorations. 2) Without quartz or metal components, or glazes which contain metals 3) You must follow the manufacturer’s instructions about the maximum temperatures.
  • Page 17: Setting The Microwave

    ENGLISH 7.4 Microwave functions Functions Description Microwave Creates the heat directly in the food. Use it to heat pre-prepared meals and drinks, to defrost meat or fruit, and to cook vegetables and fish. Combi Use it to operate the heating function and the microwave mode to- gether.
  • Page 18 7.7 Setting the Quick Start 3. Touch to set the time for the function function: Duration. Refer to "Setting the clock functions". 1. If necessary, touch to deactivate 7.8 Examples of cooking the appliance. applications for power settings 2. Touch to activate the Quick Start function.
  • Page 19: Clock Functions

    ENGLISH 8. CLOCK FUNCTIONS 8.1 Clock functions table Clock function Application Minute Minder To set a countdown (max. 2 h 30 min). This function has no effect on the operation of the appliance. You can also activate it when the appliance is deactivated.
  • Page 20: Automatic Programmes

    8.4 Extra Time 1. When the cooking time ends, an acoustic signal sounds. Press any The function: Extra Time makes the symbol. heating function continue after the end The display shows the message. of Duration. 2. Press to activate or cancel.
  • Page 21: Additional Functions

    ENGLISH Wire shelf and baking tray together: WARNING! Push the baking tray between the guide Refer to "Microwave mode" bars of the shelf support and the wire chapter. shelf on the guide bars above. Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down.
  • Page 22: Using The Child Lock

    11.4 Set + Go 9. Do step 7 again as necessary. 10. Press and hold to save. The function lets you set a heating You can overwrite a memory position. function (or a programme) and use it When the display shows the first free later with one press of any symbol.
  • Page 23: Hints And Tips

    ENGLISH display is lower between 10 PM and 6 the display goes back to the night brightness. • Day brightness: 11.7 Cooling fan – when the appliance is activated. – if you touch a symbol during the When the appliance operates, the night brightness (apart from ON / cooling fan activates automatically to OFF), the display goes back to...
  • Page 24: Tips On Baking

    12.3 Tips on baking Baking results Possible cause Remedy The bottom of the cake is The shelf position is incor- Put the cake on a lower not browned sufficiently. rect. shelf. The cake sinks and becomes The oven temperature is too The next time you bake, set soggy, lumpy or streaky.
  • Page 25 ENGLISH Food Function Tempera- Time (min) Shelf posi- ture (°C) tion Flan base - short pas- True Fan Cook- 170 - 180 10 - 25 Flan base - sponge mix- True Fan Cook- 150 - 170 20 - 25 ture Apple pie / Apple pie (2 True Fan Cook- 70 - 90...
  • Page 26 Food Function Tempera- Time (min) Shelf posi- ture (°C) tion Fruit flans (made with Conventional 35 - 55 yeast dough / sponge Cooking mixture) Fruit flans made with True Fan Cook- 160 - 170 40 - 80 short pastry...
  • Page 27 ENGLISH 12.5 Bakes and gratins Food Function Temperature Time (min) Shelf position (°C) Pasta bake Conventional 180 - 200 45 - 60 Cooking Lasagne Conventional 180 - 200 25 - 40 Cooking Vegetables au Turbo Grilling gratin Baguettes top- True Fan Cook- 160 - 170 15 - 30 ped with melted...
  • Page 28: Slow Cooking

    Food Temperature (°C) Time (min) Shelf posi- tion Pastries made with egg 80 - 100 130 - 170 1 / 3 white, meringues Macaroons 100 - 120 40 - 80 1 / 3 Biscuits made with 160 - 170...
  • Page 29 ENGLISH Food Temperature (°C) Time (min) Shelf position Apple cake, covered 150 - 170 50 - 60 Vegetable pie 160 - 180 50 - 60 10 - 20 Unleavened bread 160 - 180 45 - 55 Puff pastry flan 12 - 20 Flammekuchen Piroggen (Russian ver- 180 - 200...
  • Page 30 Food Func- Quantity Power Tempera- Time (min) Shelf po- tion (kg) (Watts) ture (°C) sition Meat loaf Turbo 0.75 - 1 160 - 170 35 - 50 Grilling Pork Turbo 0.75 - 1 150 - 170 60 - 75...
  • Page 31 ENGLISH Fish (steamed) Food Func- Quantity Power Tempera- Time (min) Shelf po- tion (kg) (Watts) ture (°C) sition Whole fish Con- 1 - 1.5 210 - 220 30 - 45 vention- Cook- Dishes Food Func- Quantity Power Tempera- Time (min) Shelf po- tion (kg)
  • Page 32 Food Temperature Time (min) Shelf position (°C) 1st side 2nd side Back of veal 210 - 230 30 - 40 30 - 40 Back of lamb 210 - 230 25 - 35 20 - 35 Whole Fish, 500 210 - 230...
  • Page 33 ENGLISH Food Temperature (°C) Time (min) Shelf position Lasagne / Cannelloni, 160 - 180 40 - 60 frozen Chicken Wings 190 - 210 20 - 30 1) Turn 2 or 3 times during roasting. Frozen Ready Meals Table Food Function Tempera- Time (min) Shelf position...
  • Page 34 Food Quantity Defrosting Further de- Comments time (min) frosting time (min) Strawber- 300 g 30 - 40 10 - 20 ries Butter 250 g 30 - 40 10 - 15 Cream 2 x 200 g 80 - 100 10 - 15 Whip the cream when still slightly frozen in places.
  • Page 35 ENGLISH Food Temperature (°C) Cooking time until Continue to cook at simmering (min) 100 °C (min) Kohlrabi / Peas / As- 160 - 170 50 - 60 15 - 20 paragus 1) Leave standing in the oven after it is deactivated. 12.15 Drying Food Temperature (°C)
  • Page 36 Defrosting meat Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Whole cuts 10 - 12 10 - 15 Turn halfway of meat through. Steak 3 - 5 5 - 10 Turn halfway through, re- move defros- ted parts.
  • Page 37 ENGLISH Defrosting fish Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Whole Fish 10 - 15 15 - 20 Turn halfway through. Fish fillets 10 - 12 15 - 20 Turn halfway through. Defrosting sausage Food Power Quantity Time (min) Standing...
  • Page 38 Food Power Quantity Time (min) Standing Comments (Watts) time (min) Cake (ga- 1 piece 1 - 2 15 - 20 Turn plate teau) halfway through. Dry cake (e. 1 piece 2 - 4 15 - 20 Turn plate g. Pound...
  • Page 39 ENGLISH Defrosting heating Food Power Quantity Time (min) Standing Comments (Watts) time (min) Baby food in 0.2 kg 2 - 3 Stir halfway jars through, check tem- perature. Baby milk 1000 0.2 kg 0:20 - 0:40 Put spoon in- (bottle, 180 to bottle, stir and check temperature.
  • Page 40 Food Power Quantity Time (min) Standing Comments (Watts) time (min) Fish fillets 0.5 kg 6 - 8 Cook cov- ered, turn container several times during cook- ing. Vegetables, 0.5 kg 12 - 16 Add approx. short cooking 50 ml water,...
  • Page 41: Care And Cleaning

    ENGLISH Combi-function table • Use the functions: Grilling and • For selected models only. Microwave. Food Ovenware Pow- Tem- Time Shelf Comments pera- (min) posi- (Watt ture tion (°C) 2 chicken Glass dish with strainer Turn after 20 halves (2 x 0.6 min, standing time 5 min.
  • Page 42: Troubleshooting

    1. Deactivate the appliance. WARNING! 2. Remove the fuses from the fuse box Danger of electrocution! or deactivate the circuit breaker. Disconnect the fuse before The top lamp you replace the lamp. The lamp and the lamp glass 1. Turn the lamp glass cover cover can be hot.
  • Page 43: Technical Data

    ENGLISH Problem Possible cause Remedy The display shows an error There is an electrical fault. • Deactivate the oven with code that is not in this table. the house fuse or the safety switch in the fuse box and activate it again. •...
  • Page 44 EURO Appliances - euappliances.info...
