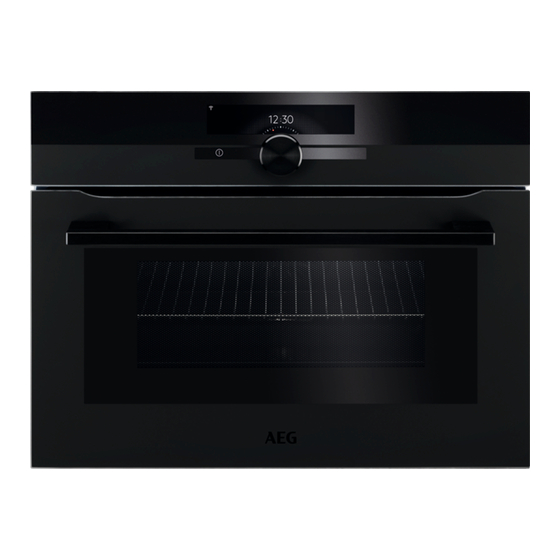

AEG KMK968000T User Manual

Microwave combi-oven
Hide thumbs Also See for KMK968000T:

Advertisement

KMK968000T
USER
MANUAL
EN
User Manual
Microwave combi-oven

Advertisement

Table of Contents
loading

Summary of Contents for AEG KMK968000T

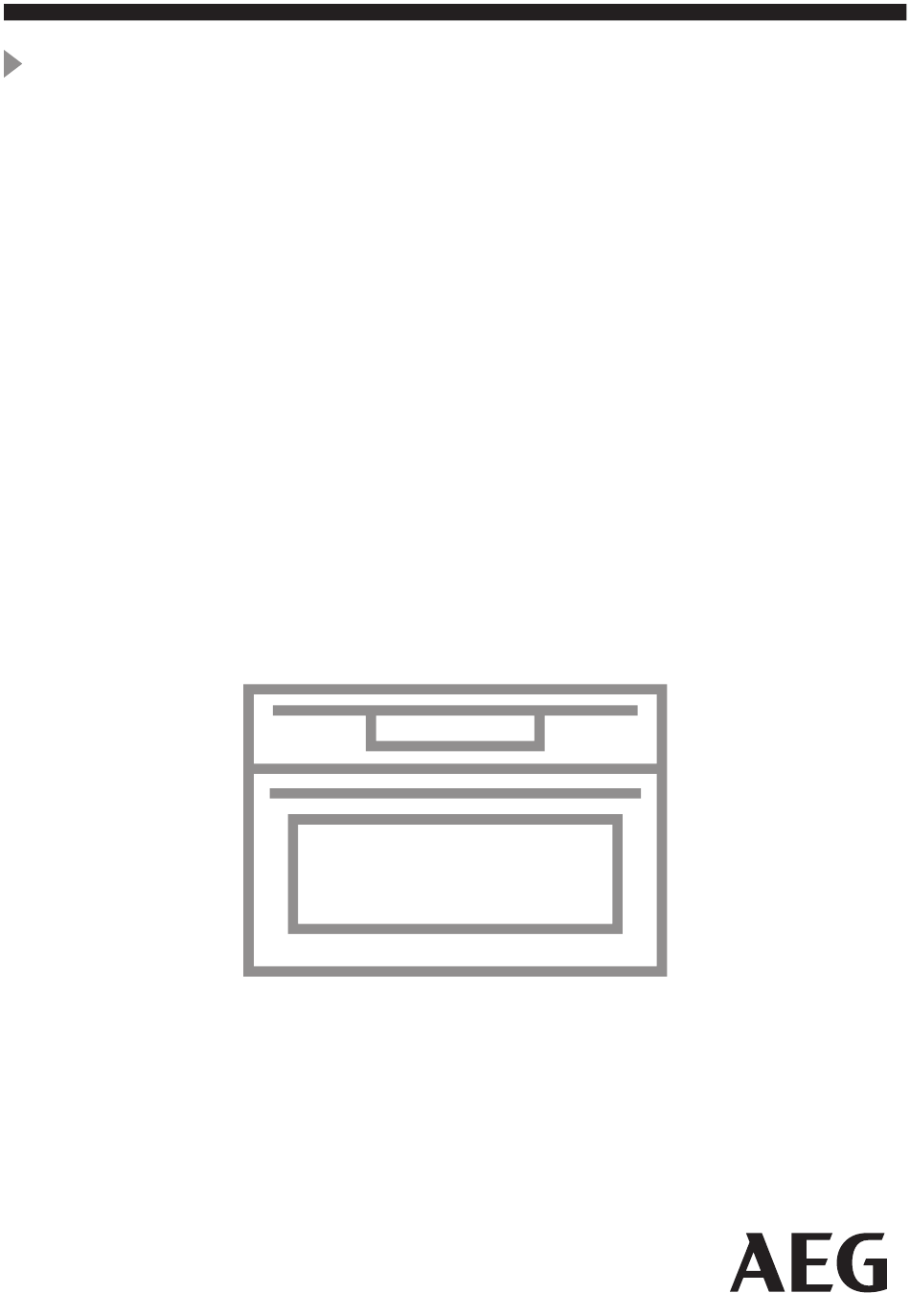

  • Page 1 KMK968000T User Manual Microwave combi-oven USER MANUAL...
  • Page 2 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INFORMATION................5 1.1 Children and vulnerable people safety............. 5 1.2 General Safety....................5 2. SAFETY INSTRUCTIONS................8 2.1 Installation......................8 2.2 Electrical connection..................9 2.3 Use........................9 2.4 Care and cleaning...................10 2.5 Internal lighting....................10 2.6 Service......................11 2.7 Disposal......................11 3. PRODUCT DESCRIPTION................12 3.1 General overview....................12 3.2 Accessories....................
  • Page 4 CONTENTS 11.2 How to remove: Shelf supports ..............31 11.3 How to replace: Lamp...................32 12. TROUBLESHOOTING................33 12.1 What to do if....................33 12.2 How to manage: Error codes................ 34 12.3 Service data....................35 13. ENERGY EFFICIENCY................36 13.1 Energy saving....................36 14. MENU STRUCTURE.................. 37 14.1 Menu......................37 14.2 Submenu for: Options...................37 14.3 Submenu for: Connections................
  • Page 5: Safety Information

    • from the appliance unless continuously supervised. Do not let children play with the appliance and mobile • devices with My AEG Kitchen. Keep all packaging away from children and dispose of it • appropriately. Keep children and pets away from the appliance when it •...
  • Page 6 SAFETY INFORMATION WARNING: The appliance and its accessible parts become • hot during use. Care should be taken to avoid touching heating elements. Always use oven gloves to remove or put in accessories or • ovenware. Before carrying out any maintenance, disconnect the •...
  • Page 7 SAFETY INFORMATION When heating food in plastic or paper containers, observe • the appliance due to the possibility of ignition. The appliance is intended for heating food and beverages. • Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
  • Page 8: Safety Instructions

    2. SAFETY INSTRUCTIONS 2.1 Installation WARNING! Only a qualified person must install this appliance. • Remove all the packaging. • Do not install or use a damaged appliance. • Follow the installation instructions supplied with the appliance. • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
  • Page 9: Electrical Connection

    SAFETY INSTRUCTIONS 2.2 Electrical connection WARNING! Risk of fire and electric shock. • All electrical connections should be made by a qualified electrician. • The appliance must be earthed. • Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Page 10: Care And Cleaning

    SAFETY INSTRUCTIONS • Do not share your Wi-Fi password. • Do not use microwave function to preheat the oven. WARNING! Risk of damage to the appliance. • To prevent damage or discoloration to the enamel: – do not put aluminium foil directly on the bottom of cavity of the appliance. –...
  • Page 11: Service

    SAFETY INSTRUCTIONS 2.6 Service • To repair the appliance contact the Authorised Service Centre. • Use original spare parts only. 2.7 Disposal WARNING! Risk of injury or suffocation. • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. •...
  • Page 12: Product Description

    3. PRODUCT DESCRIPTION 3.1 General overview Control panel Display Heating element Microwave generator Lamp Shelf support, removable Shelf positions 3.2 Accessories Wire shelf For cookware, cake tins, roasts. Baking tray For cakes and biscuits. Grill- / Roasting pan To bake and roast or as a pan to collect fat. 12/44...
  • Page 13: How To Turn Oven On And Off

    4. HOW TO TURN OVEN ON AND OFF 4.1 Control panel On / Off Press and hold to turn the oven on and off. Lamp switch To turn the lamp on and off. Display Shows the current settings of the oven. Rotary knob To operate the oven.
  • Page 14 HOW TO TURN OVEN ON AND OFF If you do not use the oven for 2 minutes, the display goes to standby. 09:37 When you cook, the display shows the set 12:30 functions and other available options. 60°C 200°C The display with the maximum number of func‐ tions set.
  • Page 15: Before First Use

    5. BEFORE FIRST USE WARNING! Refer to Safety chapters. 5.1 Initial Cleaning Step 1 Step 2 Step 3 Clean the oven and the ac‐ Remove all accessories and Place the accessories and the cessories with a soft cloth, removable shelf supports from removable shelf supports in warm water and a mild deter‐...
  • Page 16: Software Licences

    Check the full copy of the licence in: Settings / Service / Licence. You can download the source code of the open source software by following the hyperlink present on the product web page. Look for the oven model and Wi-Fi Module Software version on http://aeg.opensoftwarereposito‐ ry.com inside "NIUX" folder. 16/44...
  • Page 17: Daily Use

    6. DAILY USE WARNING! Refer to Safety chapters. 6.1 How to set: Heating functions Step 1 Turn on the oven. Step 2 Hold the knob. The display shows the default heating functions. Step 3 Select the symbol of the heating function and press the knob to enter the submenu. Step 4 Select the heating function and press the knob.
  • Page 18: How To Set: Assisted Cooking

    DAILY USE 6.3 How to set: Assisted cooking Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature. Step 1 Select: Menu. Press the knob. Step 2 Select: Assisted cooking. Press the knob. Step 3 Choose a dish or a food type and press the knob to confirm.
  • Page 19 DAILY USE Heating function Application To bake pizza. To make intensive browning and a crispy bottom. Pizza Function To bake cakes with crispy bottom and to preserve food. Bottom Heat To heat and cook food.The microwave power range is from 100 - 1000 W. Microwave Special heating functions Heating function...
  • Page 20 DAILY USE Heating function Application To keep food warm. Keep Warm Use this function to prepare bread and bread rolls with a very good pro‐ fessional-like result in terms of crispiness, colour and crust gloss. Bread Baking Microwave heating functions Heating function Application To defrost meat, fish, fruit, cakes, bread and butter.
  • Page 21: Clock Functions

    7. CLOCK FUNCTIONS 7.1 Clock functions description Clock function Application Cooking time To set the length of cooking. Maximum is 23 h 59 min. Start criteria To set when the timer starts counting. End action To set what happens when the timer ends counting. Delayed start To postpone the start and / or end of cooking.
  • Page 22 CLOCK FUNCTIONS How to set cooking time Step 2 Select: Timer. Step 3 Turn the knob to set the time. Press the knob. Step 4 Select: End action. Press the knob. Timer starts counting down immediately. Take a shortcut! How to choose cooking start / end option Step 1 Choose a heating function and set the temperature.
  • Page 23 CLOCK FUNCTIONS How to delay start without setting the end of cooking Step 2 Select: Start criteria / At a later time. Step 3 Turn the knob to set the start time. Press the knob twice to confirm. How to extend cooking time When 10% of cooking time is left and the food seems not to be ready, you can extend cooking time.
  • Page 24: How To Use: Accessories

    8. HOW TO USE: ACCESSORIES 8.1 Inserting accessories Use only suitable cookware and material. Refer to "Hints and tips" chapter, Microwave suitable cookware and materials. A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.
  • Page 25: Additional Functions

    9. ADDITIONAL FUNCTIONS 9.1 How to save: Favourites You can save your favourite settings, such as the heating function, the cooking time, the temperature, the dish from Assisted Cooking menu or the cleaning function. You can save 3 favourite settings. Saved settings are available in the menu: Favourites.
  • Page 26: Hints And Tips

    10. HINTS AND TIPS WARNING! Refer to Safety chapters. 10.1 Cooking recommendations The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used. Your oven may bake or roast differently to the oven you had before. The tables below show rec‐ ommended settings for temperature, cooking time and shelf position for specific types of the food.
  • Page 27: Microwave Suitable Cookware And Materials

    HINTS AND TIPS 10.3 Microwave suitable cookware and materials For the microwave use only suitable cookware and materials. Use below table as a reference. Check the cookware / material specification before use. Cookware / Material Ovenproof glass and porcelain with no metal components, e.g. heat-proof glass Non-ovenproof glass and porce‐...
  • Page 28: Recommended Power Settings For Different Kinds Of Food

    HINTS AND TIPS Cookware / Material Wire shelf Cookware for microwave use, e.g. crisp pan 10.4 Recommended power settings for different kinds of food The data in the table is for guidance only. 700 - 1000 W Searing at the start of the cook‐ Cooking vegetables Heating liquids ing process...
  • Page 29: Cooking Tables For Test Institutes

    HINTS AND TIPS 10.5 Cooking tables for test institutes Information for test institutes Tests according to IEC 60705. Use wire shelf unless otherwise specified. MICROWAVE FUNCTION (kg) (min) Sponge cake 0.475 Bottom 7 - 9 Turn container around by 1/4, halfway through the cooking time.
  • Page 30 HINTS AND TIPS Use the wire shelf. MICRO‐ WAVE COMBI (°C) (min) FUNC‐ TION Chicken, Turbo Grill‐ 35 - 40 Put the meat in 1.1 kg ing + MW round glass con‐ tainer and turn it upside down half‐ way through the cooking time.
  • Page 31: Care And Cleaning

    11. CARE AND CLEANING WARNING! Refer to Safety chapters. 11.1 Notes on cleaning Clean the front of the oven with a soft cloth with warm water and a mild deter‐ gent. Use a cleaning solution to clean metal surfaces. Cleaning Clean stains with a mild detergent.
  • Page 32: How To Replace: Lamp

    CARE AND CLEANING 11.3 How to replace: Lamp WARNING! Risk of electric shock. The lamp can be hot. Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp. Before you replace the lamp: Step 1 Step 2 Step 3...
  • Page 33: Troubleshooting

    12. TROUBLESHOOTING WARNING! Refer to Safety chapters. 12.1 What to do if... The oven does not turn on or does not heat up Possible cause Remedy The oven is not connected to an electrical sup‐ Check if the oven is correctly connected to the ply or it is connected incorrectly.
  • Page 34: How To Manage: Error Codes

    TROUBLESHOOTING Problems with Wi-Fi signal Possible cause Remedy New router installed or router configuration To configure oven and mobile device again, re‐ changed. fer to "Before first use" chapter, Wireless con‐ nection. The wireless network signal is weak. Move router as close to the oven as possible. The wireless signal is disrupted by a micro‐...
  • Page 35: Service Data

    TROUBLESHOOTING 12.3 Service data If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity.
  • Page 36: Energy Efficiency

    13. ENERGY EFFICIENCY 13.1 Energy saving The oven has features which help you save energy during everyday cooking. Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position. Use metal cookware to improve energy saving (only when you use a non-microwave function).
  • Page 37: Menu Structure

    14. MENU STRUCTURE 14.1 Menu Select: Menu and press the knob. Menu item Application Favourites Lists the favourite settings. Assisted cooking Lists automatic programmes. Options To set the oven configuration. Settings Connections To set the network configuration. Setup To set the oven configuration. Service Shows the software version and con‐...
  • Page 38: Submenu For: Setup

    MENU STRUCTURE Submenu Description Auto remote operation To start remote operation automatically after pressing START. Option visible only after you turn on: Wi-Fi. Forget network To disable current network from auto connection with the oven. 14.4 Submenu for: Setup Submenu Description Language Sets the oven language.
  • Page 39: S Easy

    15. IT'S EASY! Before first use you have to set: Language Display brightness Buzzer volume Time of day Familiarize yourself with the basic icons on the control panel and the display: On / Off Information Timer options Start using the oven Quick start Turn on the Step 1...
  • Page 40 IT'S EASY! Get to know how to cook quickly Select: Menu and Select: Assisted Choose the food cat‐ Choose the dish and press the knob. cooking and press egory. press the knob. the knob. Use quick functions to set the cooking time or change the cooking function Quick timer settings Step 1 Step 2...
  • Page 41: Take A Shortcut

    16. TAKE A SHORTCUT! Here you can see all the useful shortcuts. You can also find them in the dedicated chapters in the user manual. Wireless connection MENU How to set: Heating functions How to set: Assisted cooking MENU How to set: Cooking time How to delay: Start and end of cooking How to cancel: Set Timer 41/44...
  • Page 42 17. ENVIRONMENTAL CONCERNS Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste.
  • Page 43 43/44...
  • Page 44 www.aeg.com/shop...
