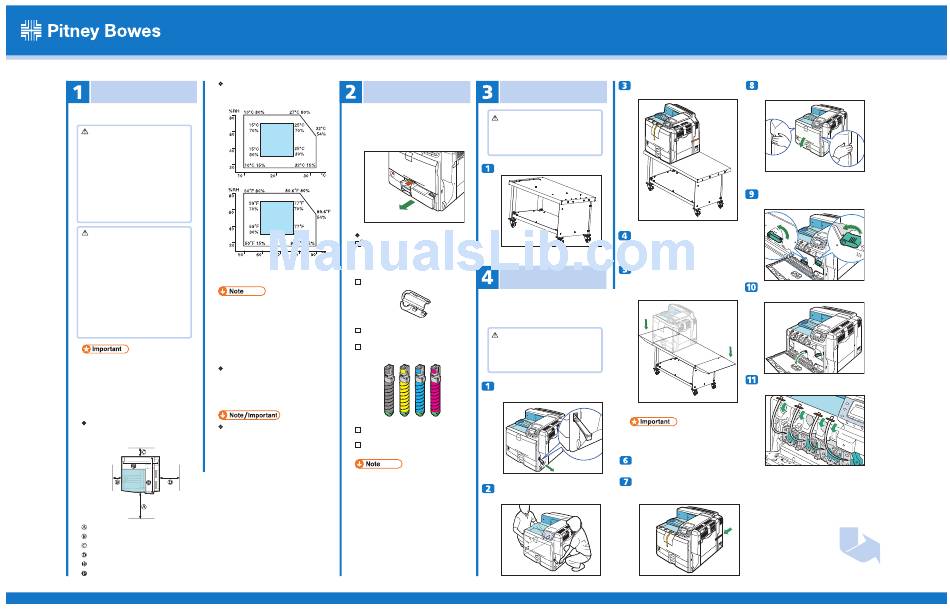

Pitney Bowes DP50S Quick Reference Manual

DP50S Quick Reference Manual
Read this manual carefully before you use the product and keep it handy for future reference. For safe and correct use, please be sure to read "Safety Information" before using the machine.
Optimum Environmental Conditions
Where to Put the Printer
Permissible and recommended temperature and
humidity ranges are as follows:
The printer's location should be carefully chosen because
environmental conditions greatly affect its performance.
Warning
• The supplied power cord is for use with this
equipment only. Do not use with other appliances.
Doing so may result in fire, electric shock, or injury.
• Connect the machine to the power source specified in
"Safety Information" and do not use any other power
sources. Connect the power cord directly to a
wall outlet and do not use an extension cord. Power
sources not specified in "Safety Information" and
extension cords are electric shock or fire hazards.
• Power cords that are damaged, broken, modified,
trapped under heavy objects, pulled hard, or bent
severely are electric shock and fire hazards.
Caution
• Make sure the room where you are using the machine
is well ventilated and spacious. Good ventilation is
especially important when the machine is used heavily.
• Place the machine on a strong and level surface.
• White area: Permissible Range
Otherwise, it might fall and injure someone.
• Blue area: Recomemended Range
• Keep the machine in an area that is within
optimum environmental conditions.
Operating the machine in an environment that is
outside the recommended ranges of humidity and
• The machine must be level within 5 mm, 0.2˝ from
temperature can cause an electrical fire hazard. Keep
both front to rear and left to right.
the area around the socket free of dust. Accumulated
• To avoid possible build-up of ozone, locate this
dust can become an electrical fire hazard.
machine in a large well ventilated room that has an
• It is dangerous to handle the plug with wet hands.
air turnover of more than 30 m
Doing this may result in receiving an electric shock.
• When you use this machine for a long time in a
confined space without good ventilation, you may
detect a smell. To keep the workplace comfortable,
were commend that you keep it well ventilated.
Do not use the printer in the following environments:
• Areas exposed to direct sunlight or strong light Power Source
• Dusty areas Connect the power cord to a power source of the
• Areas with corrosive gases following specification:
• Areas that are excessively cold, hot, or humid
• Locations near air conditioners or humidifiers •120 V, 60 Hz, 12 A or more
• Locations near other electronic equipment
• Locations subject to frequent strong vibration
Space Required for Installation
Machine Stand or Table
Leave enough space around the printer to operate it
The machine stand or table must able to support at least
freely. The recommended minimum space is as follows:
210 pounds. Not using a stand or table that can support
the machine weight can cause permanent damage and
will affect normal printing operations.
: 75.0 cm (29.6 inches) or more
: 10.0 cm (4.0 inches) or more
: 10.0 cm (4.0 inches) or more
: 55.0 cm (21.7 inches) or more
: 67.0 cm (26.4 inches) or more
: 67.0 cm (26.4 inches) or more
Checking the Included Items
Verify the items that come with the printer. Make sure
that you find all the items listed below.
Note that some of the items are in tray 1. Pull out tray1,
and remove the red tag on the tray. Take out the items
inside tray 1.
Manuals and CD-ROMs
CD-ROM "Manuals"
Ferrite Core
/hr/person. Power cord
3
Toner: Black (K), Magenta (M), Cyan (C),
Yellow (Y)
Additional Documentation
Paper Feed Unit Labels
• This package does not include an interface cable.
Purchase one as necessary to connect to the printer.
Place the printer on the left side of the
Unpacking the Printer Cart stand against the positioning rail.
Caution
• Lifting the printer cart carelessly or dropping it may
cause an injury.
• Lock the stand wheels to prevent movement once
the stand is in place.
Unbox the printer stand with two people.
Using a screw driver, insert the alignment
screws from underneath the stand's table
top and into the bottom of the printer.
Install both side wings onto the stand by
aligning the wings' notches with the four
Unpacking the Printer
screw holes located on both ends of the
stand.
To protect it from shock and vibration during transit,
this printer comes packaged in cushioning foam and
secured with tape. Remove these protective materials
after bringing the machine to where it will be installed.
Caution
• When moving the machine, hold the handles at both
sides, and lift the printer slowly. Lifting it carelessly
or dropping it may cause an injury.
• Place no objects on the front or inner cover.
Pull out the handle from the right side of
the printer
• Leave the tape in place while moving the printer.
• Lower the printer slowly and carefully to prevent
trapping your hands.
Return the handle you pulled out from
the printer to its original position.
Remove the tape indicated by the arrow.
Lift the printer using the side handles and
Do not remove the four strips of tape
carefully place on a stand or table.
attached to the front cover.
DP50S QRM Rev 1.pdf
Holding the left and right side grips,
carefully open the front cover.
Turn the two green levers counterclock-
wise.
Pulling the handle, slowly open the inner
cover.
Remove the orange tapes from the
printer.
Step continued on next page
