Hardware Specifications

Fibre Channel Interface:
• 2.125-Gigabit data-transfer rates
• 400 MB/sec. throughput in full-duplex mode
• Auto-negotiation between 2-Gigabit
and 1-Gigabit speeds
• Fixed copper HSSDC Fibre Channel connector
• Supports all Fibre Channel topologies
• Point-to-Point
• Arbitrated Loop
• Direct Fabric/Switch attach
• Strict adherence to ANSI FC-AL-2, FC-PLDA,
FC-Tape, and FC-FLA specifications
• Supports Class 2, Class 3 and Intermix
transfers
• Flash ROM for easy field upgrades
Advanced FC Features:
• Support for SNIA HBA API
• LUN masking
• Supports Target and Initiator Modes
Advanced SCSI-FCP Support:
• Large command FIFO
• Asynchronous I/O support
• ASPI and SCSI Manager 4.3 compatible
• SCSI-3 tagged command queuing
• Bootable from attached disks
• Support for multiple block sizes
Accelerated PCI Bus Management:
• PCI bus master rate of 528 MB/sec.
• PCI 2.2 compliant
• 64-bit/66 MHz PCI-X (backward
compatible with 32-bit and 33 MHz PCI)

Software Specifications

Driver Support:
• Windows® 2000
• Windows XP
• Windows Server 2003
• Solaris (x86 and SPARC)
• Mac® OS X
• Mac OS 9
Advanced Data Streaming (ADS™):
• Improved PCI system bandwidth use
• Optimized FC and SCSI-3 algorithms
• Tagged command queuing
• RISC processor for high performance
RAID kits available
F i b r e
©2004 ATTO Technology, Inc. Specifications subject to change without notice.
ATTO ExpressPCI FC 3305
Environmental and Physical
Characteristics
Dimensions:
• Full form factor: 4.200" x 6.521"
Operating Environment:
• Temperature: 0-50º C
• Humidity: 10-90% non-condensing
• Airflow: 100 LFM (min.)
Power:
• 1 Amp @ 5 Volts
PCI Signal Compatibility:
• 3.3 Volts/5 Volts universal
Fibre Channel Host Adapter
Selection Chart
Single & Multi-Channel 2-Gigabit Adapters
PRODUCT FEATURES
Number of FC Channels
Maximum Transfer Rate (MB/sec.)
32-bit PCI Compatible
64-bit PCI Compatible
Fabric & Loop Support
Cable Distances (max.)
33 MHz PCI Compatible
66 MHz PCI Compatible
66 MHz PCI-X
Optical/Copper Interface
Class
Full-duplex
RAID Support
Windows® 2000/XP/Server 2003
Solaris, Linux
Mac® OS and Mac OS X Support
* per channel
C h a n n e l
Configuration:

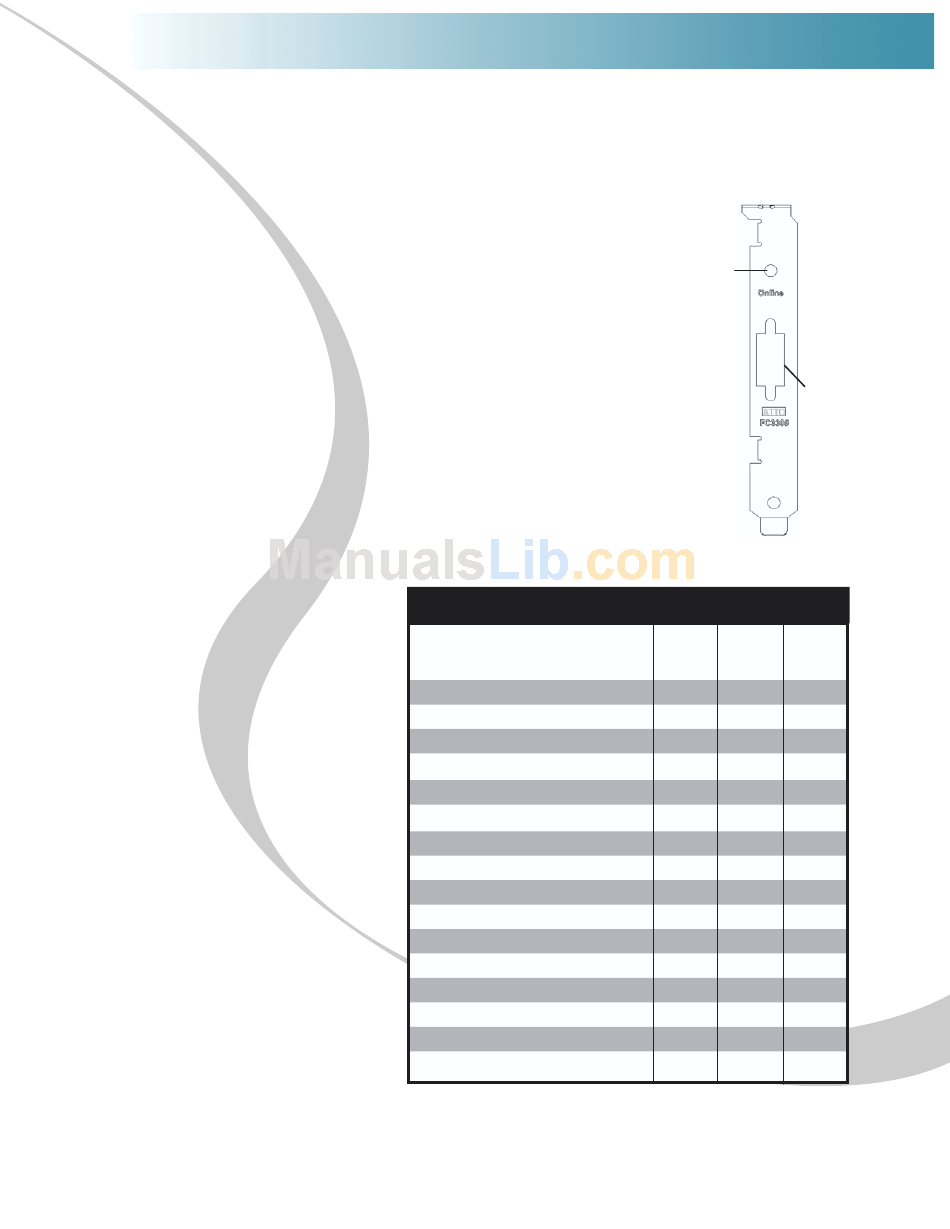

• Easy to install connection plate with LED
to monitor on-line status
LED indicates
online status
Shielded copper
HSSDC connector
FC 3321 FC 3300 FC 3305
2 1 1
400* 400 400
• • •
• • •
• • •
500m 500m 10m
• • •
•
• •
SW LC SFF Fixed SW LC HSSDC
2,3 2,3 2,3
• • •
• • •
• • •
Linux • •
OS X • •
