Summary of Contents for Vorwerk KOBOLD

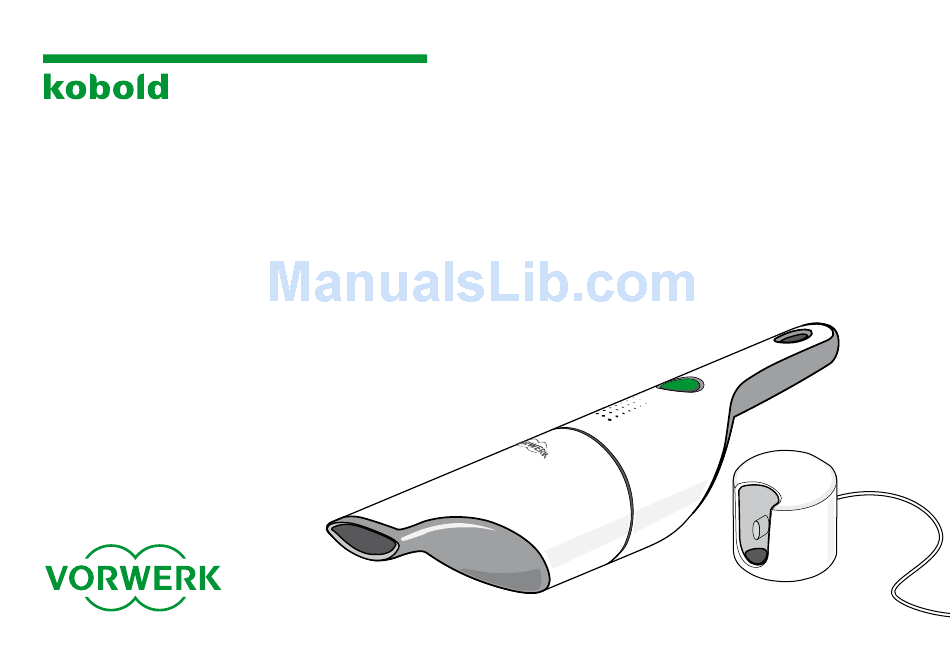

- Page 1 INSTRUCTION MANUAL KOBOLD VC100 HANDHELD VACUUM CLEANER...
-
Page 2: Preliminary Remark
CHARACTERS AND SYMBOLS handheld vacuum cleaner ! The symbols which appear in this instruction manual have The smallest member of the Vorwerk family will stay true to the following meanings: you for many years and provide you with lots of fun when cleaning your home. -
Page 3: Table Of Contents
......22 Charging the Kobold VC100 handheld Disposing of the packaging ....23 vacuum cleaner . -
Page 4: Product Overview

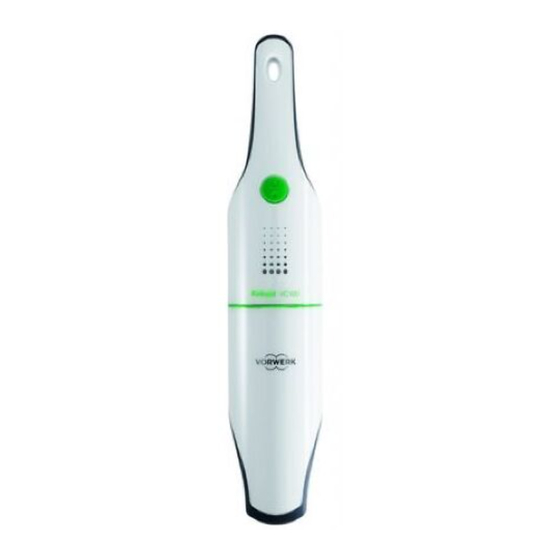

Product overview PRODUCT OVERVIEW The Kobold VC100 handheld vacuum cleaner easily vacuums various kinds of upholstery in the same powerful way, even on flat surfaces and in narrow areas. The handheld vacuum cleaner can be emptied quickly and easily. The image with the legend displays the handheld vacuum cleaner and its operation elements. -
Page 5: For Your Safety
For your safety FOR YOUR SAFETY Greatest possible safety is a characteristic of Vorwerk products. The product safety of the Kobold VC100 handheld vacuum cleaner can however only be ensured if this chapter is followed. Intended use Note! The appliance is not to be used by children younger than 8 years. Children from 8 years on... -
Page 6: Hazards Warnings
For your safety Hazards warnings Note! • Read the instruction manual carefully before using the Kobold VC100 handheld vacuum cleaner for the first time. • Observe the following notes in particular. • Keep the instruction manual for future use. It is an important part of the handheld vacuum cleaner and must be kept with the product if you pass it on to someone else. - Page 7 For your safety • Do not change the contacts. • Do not continue to operate the Kobold VC100 handheld vacuum cleaner if it is damaged. • Contact your nearest Vorwerk customer service department in the event of damage. Fire hazard! •...
- Page 8 • If the charging unit or the cable of the charging unit has been damaged. The handheld vacuum cleaner is intended for household and domestic use only. In the event of improper use or use that does not comply with the instruction manual, Vorwerk shall not assume any liability.
-
Page 9: Danger Levels
For your safety The Kobold VC100 handheld vacuum cleaner fulfils the safety instructions of the country in which it was sold by an authorised Vorwerk organisation. When using the device in another country, compliance with local safety standards cannot be guaranteed. -
Page 10: Preparation
Preparation PREPARATION You can easily store the Kobold VC100 handheld vacuum cleaner in the charging unit, which can be either mounted on the wall or stand on the table. This means that the handheld vacuum cleaner is ready for use at any time with its powerful rechargeable batteries. -
Page 11: Charging Without Charging Unit
Preparation 2.1.2 Charging without charging unit • Ensure that the Kobold VC100 handheld vacuum cleaner is switched off. • Press the pin on the charging unit to open it. • Insert the small plug of the mains charger in the corresponding socket on the handle of the handheld vacuum cleaner. -
Page 12: Operation
Operation OPERATION This section provides information on the functions of the Kobold VC100 hand- held vacuum cleaner . Warning! Risk of electric shock • Never vacuum water, other liquids or easily inflammable substances with this device. Only vacuum ash once it has cooled down entirely. -
Page 13: Switching On The Handheld Vacuum Cleaner
Operation Switching on the handheld vacuum cleaner • Press the activation/deactivation button to switch on the handheld vacuum cleaner. Activating the boost function • Press the activation/deactivation button to switch on the handheld vacuum cleaner. Fig. 3.1 Switching on the handheld vacuum cleaner •... - Page 14 Operation The efficient charging system of the Kobold VC100 handheld vacuum cleaner switches off automatically if the batteries are fully charged. The handheld vacuum cleaner can remain in the charging unit without risk. The mains charger becomes slightly warm; this is an entirely normal process.
-
Page 15: Maintenance
Maintenance MAINTENANCE For your Kobold VC100 handheld vacuum cleaner to operate optimally and con- tinually provide you with pleasure, clean the handheld vacuum cleaner regular- ly. The handheld vacuum cleaner can be emptied quickly and easily and cleaned hygienically. The dust chamber can be removed with a simple click, which allows you to empty the handheld vacuum cleaner without getting your hands dirty. -
Page 16: Emptying The Dust Chamber
Maintenance Emptying the dust chamber • Remove the filter unit (see section 4.1 on page 15). • Empty the contents of the dust chamber into a bin. • Where required, clean the dust chamber with a damp cloth and allow the dust chamber to dry completely before assembly. -
Page 17: Troubleshooting
• Never perform repairs on your device yourself. Repairs to electric devices may only be carried out by the responsible Vorwerk customer service department. If your device is not working properly, it may be due to one of the following... - Page 18 Disconnect the mains charger of the handheld vacuum cleaner from the mains socket and let the handheld vacuum cleaner cool down. If the problem persists, please contact Vorwerk's customer service department. The handheld The nozzle may be blocked. vacuum cleaner does •...
- Page 19 Turn the filter unit so that the large tray is on the into the device. side of the release key. (see also section 4.3). If the fault cannot be rectified, please contact Vorwerk's customer service department (see section “8 Services” on page 24).
-
Page 20: Disposal And Environmental Protection
• Contact your city or municipal administration for information. • You can also return the device to Vorwerk‘s customer service department. Information for disposing of the rechargeable batteries Note! The following information is only intended for the disposal company and not the customer! The integrated lithium ion batteries contain substances that can damage the environment. -
Page 21: Disposing Of The Packaging
Disposal and environmental protection REMOVE THE BATTERIES FROM THE DEVICE • Remove the rechargeable vacuum from the charging unit. • Let the vacuum run until it dies. • Check to see if the batteries are completely empty by trying to turn the device on. -
Page 22: Information On Environmental Protection
Disposal and environmental protection To this end, Vorwerk commissions legally authorised licensees. If you have any questions, please contact the relevant service centre (see section “8 Services” on page 24). Information on environmental protection Preserving nature and protecting the environment: at Vorwerk, environmental protection is an important company objective. - Page 23 Disposal and environmental protection REUSABLE MATERIAL The material for our products can nearly be completely recycled. We largely avoid using PVC. When manufacturing our products, we ensure "sorted" materials: the substances used can later be separated according to substances at modern facilities without using great amounts of energy.
-
Page 24: Warranty
Warranty WARRANTY Please consult your order form or purchase contract for the warranty provisions. SERVICES Either in person with your customer representative or at the service centre info@vorwerk.co.uk www.vorwerk.co.uk... -
Page 25: Technical Details
Technical details TECHNICAL DETAILS Handheld vacuum cleaner Safety signs Housing High-quality recyclable thermo-shaped plastic Motor Maintenance-free DC motor with approx. 23,000 r/min Input voltage 220-240 volts alternating current voltage 50/60 Hertz mains charger Output voltage 10.8 V DC mains charger Mains charger type KSAS7R51080050HK Nominal... - Page 28 Choose quality. Vorwerk Quality ORIGINAL Q UA L I T Y VORWERK UK LIMITED Ashurst Manor Church Lane, Ascot, Berkshire SL5 7DD...
