Summary of Contents for Minka-Aire Gyrette F302

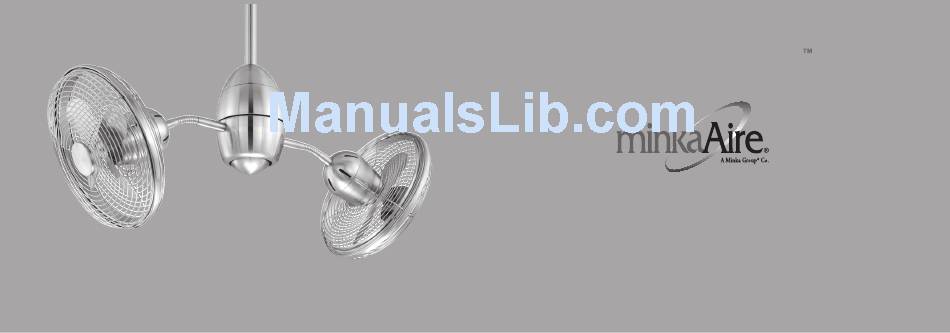

- Page 1 GYRETTE INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 ® and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that proves to be defective during the warranty period to the following address: ®...
- Page 4 This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and ® Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................OPERATING THE REMOTE CONTROL..........PACKAGE CONTENTS..............ADJUSTING THE TILT ANGLE ............. INSTALLING THE FAN..............CARE OF YOUR FAN................HANGING THE FAN................. TROUBLESHOOTING................ELECTRICAL CONNECTIONS............SPECIFICATIONS..................FINISHING THE INSTALLATION..........LISTED E75795 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267... -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan motor assembly A. Mounting hardware: 2. Hanger bracket #10 x 1.5" Wood screws (2 PCs.) 3. Canopy #8 x 3/4" Machine screws (2PCs.) 4. Canopy cover Lock washers (2 PCs.) 5. -
Page 9: Installing The Fan
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install OUTLET BOX UPSIDE HANGER RECESSED BRACKET ® OUTLET BOX a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer). FIG. 3 FIG. 4... -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan. - Page 11 DOWNROD CANOPY OUTLET BOX DOWNROD CROSS PIN COUPLING COVER SET SCREWS CANOPY COVER LOCK HITCH HANGER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig. 7 Fig. 8 LOCK PIN HITCH PIN Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: : To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the WHITE turned off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver. - Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
- Page 14 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") GRAY (CONNECT TO GROUND- (FOR CENTER MOTOR) GROUND WIRE ON (GREEN) HANGER BRACKE IF NO HOUSE GROUND WIRE EXISTS.)
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove the 1 of 2 screws from the bottom of the hanger bracket and loosen the other one a half turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 16: Operating The Remote Control
OPERATING THE REMOTE CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. Button: This button rotates the fan assembly at 3 RPM. NOTE: The complete fan assembly is designed to rotate in one direction however, Buttons: when blocked it will automatically turn to the opposite direction. -
Page 17: Adjusting The Tilt Angle
ADJUSTING THE TILT ANGLE Step 1. While supporting the center fan body with one hand you must adjust the position of the side fan from the body housing. Note: The fan heads can only be adjusted in a downward, left or right direction up to a maximum of 30 degrees. -
Page 18: Care Of Your Fan
CARE OF YOUR FAN ALLEN WRENCH Here are some suggestions to help maintain your fan. SCREWS 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the ceiling). - Page 19 3. Use a lint free lightly damp cloth or duster to remove dust from WARNING! the blades. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT 4. There is no need to oil your fan. The motor has permanently lubricated ANY REPAIRS.
-
Page 20: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 21 SYMPTOM Fan Wobble SOLUTION NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may wobble even though blades are matched. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist. Make sure hanger bracket is secure to the outlet box, screws are tight.
- Page 22 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 23: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the 0.38 1694 light(s). 11.11 4.89’ 0.42 1120 2047 10" Medium 0.53 1335 2418 High...
