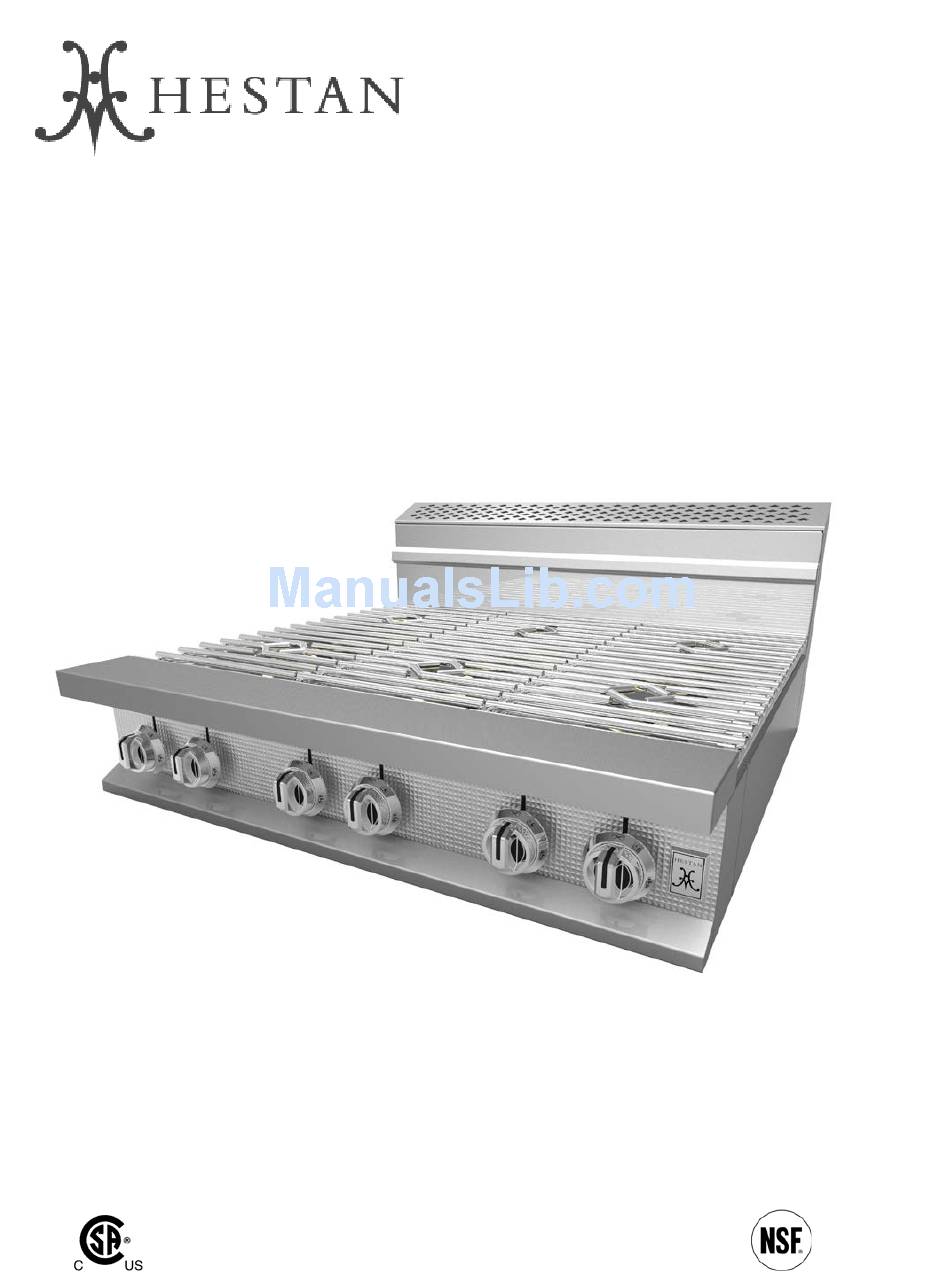

- Page 1 Owner’s Guide Installation & Operation Sealed Burners HMB Series HSB Series HSP Series Hestan Commercial Corporation 3375 E. La Palma Ave Anaheim, CA 92806 (888) 905-7463 RETAIN THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Hestan Commercial Division
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. THE MAXIMUM LOAD ON THE COOKING SURFACE CANNOT EXCEED 100 LBS. Table of Contents ©2015 Hestan Commercial Division... -
Page 3: Table Of Contents
Ventilation Air / Flue Connections ..............7 Electrical Supply .....................8 Model / Serial / Rating Plate Location ..............8 Section 2: Operating Instructions ................Lighting and Shutdown Instructions ..............9 Section 3: Cleaning and Maintenance ..............Gas-Fired Appliances ..................10 ....................Service Installation ©2015 Hestan Commercial Division... -
Page 4: Section 1: Installation
NOTE: A carpenter’s level can be used on the plate shelf for left to right leveling. Riser Installation 1) Remove back panel from riser assembly by removing mounting screws. ©2015 Hestan Commercial Division... -
Page 5: Statutory Regulations
National Fire Protection Association, on their web site: http://www.nfpa.org/ Canada 1) Local Codes 2) CSA B149.1 Natural Gas and Propane Installation Code. 3) CSA C22.1 Canadian Electrical Code 4) CSA C22.2 Canadian Electrical Code Canadian codes can be found on the CSA website: http://www.csa.ca ©2015 Hestan Commercial Division... -
Page 6: Gas Supply
.18 psig (1.25kpa) coming out of the regulator. For liquid propane gas pressure coming into the regulator should be 11” WC or .4 psig (2.75kpa) and 10” WC .36 psig (2.5kpa) coming out of the regulator. ©2015 Hestan Commercial Division... -
Page 7: Gas Pressure Regulator
All gas burners and pilots need sufficient air to operate. Large objects should not be placed in front of the appliance(s) that would obstruct the flow of air into the front. NOTICE: In the Commonwealth of Massachusetts all gas appliances vented by either mechanical systems or ventilation hoods shall comply with 248 CMR interlocking requirements. ©2015 Hestan Commercial Division... -
Page 8: Electrical Supply
If the receptacle is not the proper grounding type, contact an electrician. Do not remove the grounding prong from this plug. Model / Serial / Rating Plate Locations Range tops Rating plate will be located above the front panel ©2015 Hestan Commercial Division... -
Page 9: Operating Instructions
3) Wait 3 minutes; turn all the burners “ON” and then “OFF”, one at a time, to make sure all of the lines have been purged of air. A 5 minute complete shutoff period is required before the appliance is re-lighted ©2015 Hestan Commercial Division... -
Page 10: Cleaning And Maintenance
Heat tint can be removed by scouring with stainless steel wool or scouring powder. Rub in direction of polished lines. ©2015 Hestan Commercial Division... -
Page 11: Service
Service All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized service agent in your area contact your dealer, local representative, or the manufacturer. Hestan Commercial Products (888) 905-7463 ©2015 Hestan Commercial Division...
