CODELOCKS CL5000 Programming & Operating Instructions Manual page 4

CYLINDER REMOVAL
REMOVAL OF FRONT-LOAD CYLINDERS TO CHANGE KEY BYPASS FUNCTION, TO REPIN CYLINDERS,
OR TO REPLACE WITH CYLINDERS BY A DIFFERENT MANUFACTURER*
1
2
4

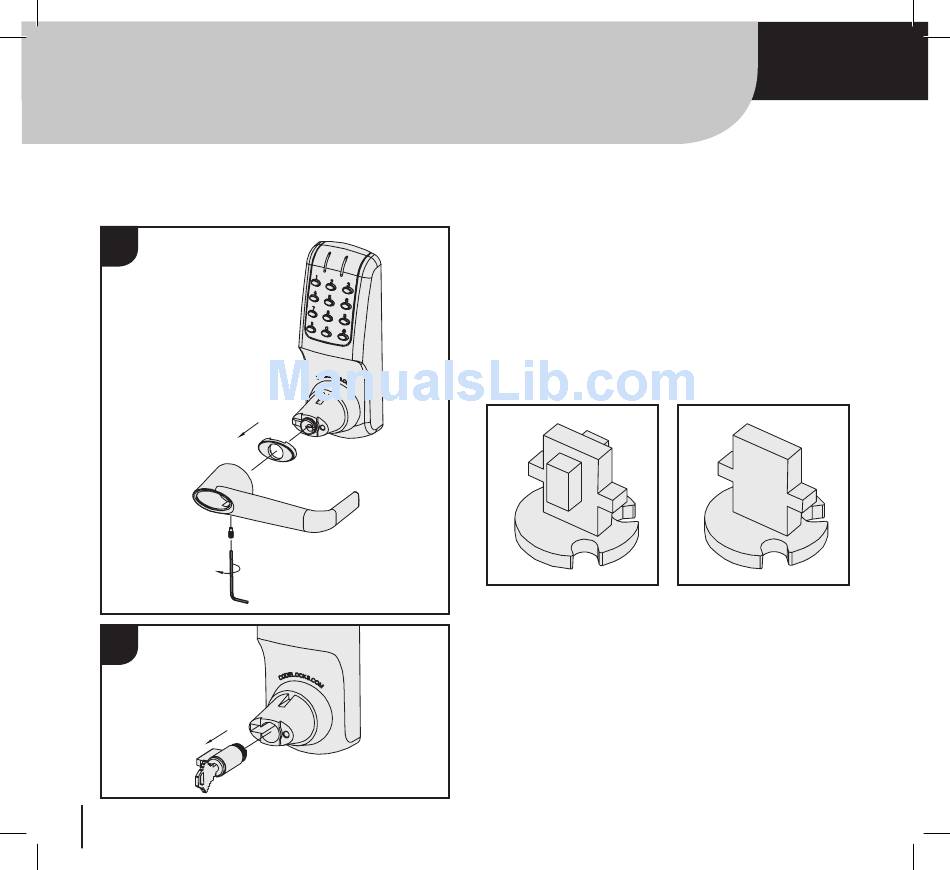

1. Remove handle and cylinder cover.
2. Turn key 90º clockwise and remove cylinder from boss.
*If intending to use a cylinder by a different manufacturer
it is advisable to confirm beforehand that the new cylinder
will fit the boss. Note that the CL5000 uses a 6 pin screw-
cap cylinder.
CHANGING KEY BYPASS FUNCTIONS
A
A - Storeroom function
Tailpiece allows key to turn 90º clockwise to enable handle to
retract the latch - this is the factory fitted function.
B - Classroom function
Tailpiece allows key to turn 90º clockwise and be removed leaving
the handle engaged in Code Free Mode.
Code Free Mode is cancelled by turning key 90º anti-clockwise.
THESE TAILPIECES WILL FIT MOST SCREW-CAP
CYLINDERS FROM OTHER MANUFACTURERS
B
