Summary of Contents for Flytec 5020

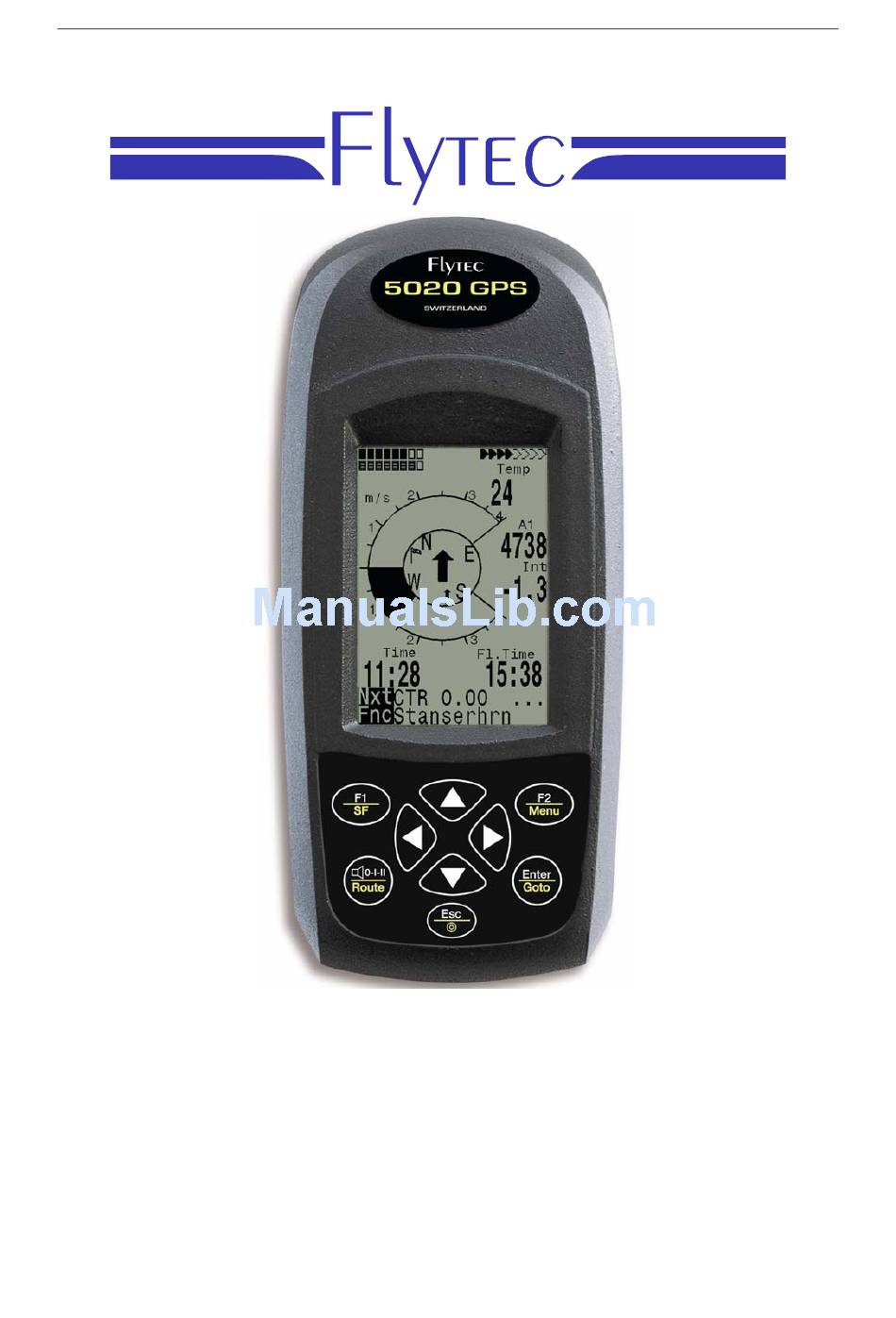

- Page 1 Flytec 5020 Brief Introduction 5020 GPS Short Manual Vers.1.18 Flytec AG Ebenaustrasse 18 , CH – 6048 Horw Switzerland Tel. +41 41 349 18 88 – flytec@swissonline.ch - www.flytec.com - 1 -...
-
Page 2: Turning The Unit On And Off
Flytec 5020 Brief Introduction 1 Operation 1.1 Turning the Unit On and Off The unit is switched on by pressing the key. You must confirm the switch on, by pressing the “Enter” key. To switch it off, you need to press the same key for three seconds. The unit will then display the question ‘switch off?? Press Enter’... -
Page 3: Main Screen
Flytec 5020 Brief Introduction 1.3 Main Screen Number. of received Remaining battery satellites from the capacity of battery GPS system bank 1 and 2 User selectable field Unit of analogue vario Direction of wind Altitude Dig. Variometer Mode Bearing to next waypoint... -
Page 4: Final Glide Screen
Flytec 5020 Brief Introduction F2: Zoom in: The map scale is gradually increased to approx. 0.5-1.0km. Thus, individual circles during a climbing period are clearly recognizable (This is dependent on the set recording interval). F1: Zoom out: The map scale is gradually decreased until the screen display is optimized. -
Page 5: Main Setup Menu
Factory Settings Only for service Opt. SW-Packages Here you can enable SW packages you bought from Flytec. 1.7 Basic Settings A series of settings permit the unit to be programmed according to the user’s wishes. Every pilot can realize his/her own ideas. If too much information bogs you down and causes confusion, it is always possible to reset the unit at Basic Settings/ Init EEPROM, which are the manufacturer’s tested basic settings. -
Page 6: User Selectable Fields
Flytec 5020 Brief Introduction Audio threshold Fine tuning of climbing tone max 2 cm/sec 20 cm Sink tone thres. Activation point of sink tone m/s (ft/m) L.thermal thres Threshold for the last thermal 0.5 to 3.0 m/s Vario/Spd delay Response time delay for Analogue 12 ( »... -
Page 7: Battery Management
1 and bank 2. 1.10 Data Exchange Via PC The 5020’s basic equipment includes a data cable for a serial PC interface (9 pol Sub D plug). Data transfer can occur in both directions. The connection occurs with: 57.600 baud; 1 startbit;... -
Page 8: Transferring New Firmware To The 5020
5020. To be able to write to the 5020’s flash memory with a PC, it is necessary to use a compressed file named “Flasher.exe” that is available in zipped form flasher.zip. In addition, the actual firmware to be uploaded must be obtained. -
Page 9: Technical Data
Important: Contrary to the instructions for data transfer of waypoints or routes, be sure that the 5020 is turned off when plugging the cable into the computer and the 5020. Important: Never leave the PC cable hooked up to the unit when it is turned off. If this is done energy is consumed, and the battery can be drained.
