- Page 1 Flytec 6015 GPS Operation manual Firmware Vers.1.3.03 16.04.2011 Revision: 29.06.2011...
-
Page 3: Table Of Contents
Operation Manual Flytec 6015-GPS Index Operation ..........................3 ..Instrument overview ........................3 ..6015-GPS Switch - on and - off......................4 1.2.1 Instrument switch-on ........................4 1.2.2 Instrument switch-off / stop flight recording................4 ..Keypad .............................5 ..Operation philosophy ........................5 1.4.1 Function related keys F1 and F2....................5 .. - Page 4 Data transfer .......................... 27 ..Data exchange via PC........................27 5.1.1 Flight instrument settings .......................27 5.1.2 Waypoints and Routes ......................28 Transmitting new Software-(Firmware) to the 6015-GPS ..........28 Miscellaneous ........................29 Batteries ..........................29 ..Batterie charge state........................29 ..Battery replacement........................29 Additional Information ......................
-
Page 5: Operation

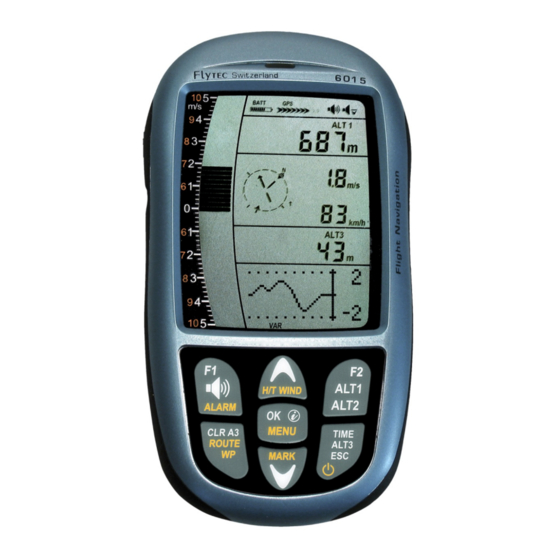

Operation Manual Flytec 6015 Operation Instrument overview ON / OFF key ON / OFF key Page indicator Graphics and data display Differential altimeter / time / flight time /QNH Speed USB PC-interface Digital Vario display Altimeter display ALT1 / ALT2... -
Page 6: 6015-Gps Switch - On And - Off
Press OK ! 3. Automatic switch-off: the flight analysis appears automatically after landing and shall be displayed for about 60sec. Without key stroke the 6015-GPS is switched-off automatically. 4. Automatic switch-off at non-use If the device does not detect a keystroke or flight related parameters during 30 minutes, it will be switched-off automatically. -
Page 7: Keypad
/ Memorise position as Waypoint Operation philosophy The 6015-GPS instrument is very easy to handle and intuitive. Just try it a few times, and you will discover that one can get along very rapidly with the simple menu structure. However, please note some essential instructions regarding the various functions. -
Page 8: Display Screen
Operation Manual Flytec 6015-GPS Display screen Battery charge state 3-D GPS Fix GPS number of Satellites Flight recording Vario Unit Acoustic Volume Sink acoustics Direction North Altimeter ALT1 / ALT2 Compass rose Digital Vario with Integrator Direction to WP Last thermal... -
Page 9: The Setting Menus
Operation Manual Flytec 6015 Track Wind data- display (1) Actual track (0-360°) W-Direct. 095 Wind direction (0 – 360°) Wind Wind speed Navigation data- display (2) Tegelberg Active Waypoint from Route, GoTo or last Thermal Bearing Bearing in degree Dist. -
Page 10: Menu Overview
Operation Manual Flytec 6015-GPS 1.6.1 Menu Overview Menue Display 6015 Range Page Flight memory Flight Mem >Flights (flight memory) Flights > Recording interval 1 – 60 Sec. Scanrate > Recording mode Auto / Manual Scan mode > Delete all flights... -
Page 11: Functions
Operation Manual Flytec 6015 Functions Altimeter and atmospheric pressure The 6015-GPS provides 3 altitude displays and 1 QNH pressure indicator. ALT1 The altimeter absolute altitude shows the altitude over sea level. (meter „m“ or feet „ft“) ALT2 alternatively: - GPS altitude... -
Page 12: Altimeter Display Alt2
Operation Manual Flytec 6015-GPS 2.1.2 Altimeter display Alt2 Shifting between display screens Alt1 and Alt2 is performed by briefly pressing the key Alt1/Alt2. The following values can be displayed on the altimeter screen ALT 2: GPS Alt. = display of GPS altitude Flight-Level = Flightlevelaltitude in ft relatingto 1013 hPa e.g. -
Page 13: Variometer Functions
Vario 3.2 6.8m/s The scale of the analogue display is consistently 0,2 m/s over both scale ranges ! (Flytec AG Patent!) The range of the first scale extends from 0 up to +/- 5m/s. Thereafter the scale display switches automatically to the second scale range which extends from 5 up to 10m/s. The second scale is afterwards displayed with a white bar on black field . -
Page 14: Menu Settings Variometer
The response characteristics of Variometer display and of climb- or sink acoustics can be adapted within a wide range in accordance to the pilot’s needs or the weather conditions. In order to simplify the settings, Flytec has defined 4 basic- resp. turbulence filters. Variometer - sensitivity / response characteristics Filter No. -
Page 15: Variometer - Climb Acoustic
Operation Manual Flytec 6015 2.2.6 Variometer – climb acoustic 2.2.6.1 Climb acoustic threshold Main Setup Menu Variometer Climb Acoustic Climb threshold In order to avoid the climb acoustics get started with immobile aircraft, for ex. at take-off area, or at only slight climb, the climb acoustics starting point can be set in the range from 0 cm/s up to 20 cm/s. -
Page 16: Pre-Thermal Acoustic Threshold
Operation Manual Flytec 6015-GPS 2.2.7 Pre-Thermal Acoustic Threshold Main Setup Menu Variometer Climb Acoustic PThermalLim At this position it is possible to activate a „Pre-zero“ climb acoustic signal! The trigger point of this acoustic signal can be adjusted within the range of -1,0m up to 0 cm/s. The „Pre-zero Acoustic“... -
Page 17: Speed
2.3.1 Wind vane sensor The 6015-GPS is provided with a very precise speed measuring system, i.e. one entry with evaluation electronics for Flytec wind vane sensors. Advantage: wind vane sensors trigger correct readout already from approx. 1 km/h speed, these sensors are also perfectly suitable for detection of weakest wind strength values at starting site . -
Page 18: Time Of Day And Date
Vario has pointed to more than 0.1 m/s. Temperature The 6015-GPS is provided with a temperature sensor for the temperature compensation of pressure sensors, as well as for the automatic display contrast control. Temperature reading is ⇒... -
Page 19: Assessment Of Gps Reception Quality
Operation Manual Flytec 6015 Assessment of GPS reception quality The 6015-GPS is fitted with a 20-channel GPS-receiver which is featured with lesser power consumption and also a significantly shorter satellite detection time. Precision of position is between 5 to 40m. As an average one may assume approx. 20 m. -
Page 20: Track And Bearing
Waypoints and Coordinates A waypoint is any single point on the earth’s surface that you would like to go to. The 6015-GPS can save up to 200 waypoints. Each name of a waypoint can have up to 16 characters, e.g.: "Fiesch Airfield". -
Page 21: Display Of Actual Coordinates
Operation Manual Flytec 6015 3.3.1 Display of actual coordinates If the 6015-GPS receives satellites by GPS-Receiver, the actual position is displayed in the information field of the instrument by briefly pressing the key Info. After 20 sec. the previous display screen will automatically reappear. This function is useful in relaying your location to some person after landing for your pick-up from there. -
Page 22: Keypad Functions In Menu Edit
Operation Manual Flytec 6015-GPS 3.3.3.2 Keypad functions in Menu Edit After calling the Menu Edit WP the 1st letter of the WP-name will blink. Using the keys required letter is selected, there are numbers, letters, abc... as well as a set of special characters to choose from. -
Page 23: Routes
WP. Of course there is still the option of looking up other, possibly closer, Waypoints without leaving the current Route by using the Goto-function. Altogether the 6015-GPS provides the definition of up to 50 WP. The one and same WP can be used more than once along one Route 3.4.1... -
Page 24: Delete Alle Wp Of The Route
3.4.1.2 > Delete alle WP of the Route Pressing the OK key on the position delete Route enables the Route delete function. For data safety the 6015-GPS prompts once > Edit again: „delete all WP?“. By use of the OK key the deletion can >... -
Page 25: Competition - Start
Operation Manual Flytec 6015 3.4.3 Competition - Start For a competition is normally ruled a start cylinder of the EXIT type (flying out of the cylinder) or ENTER type (flying into the cylinder) and one, or several possible start times (Startgates). -
Page 26: Competition Route - Data Display For Task Exit Cyl
Operation Manual Flytec 6015-GPS 3.4.3.3 Competition Route – Data display for task Exit Cyl. correct side Pilot inside of the cylinder, Pilot outside of the cylinder, wrong side (symbol flashing) Time left display (Count Down) until - 00:02:16 Start Time 0:00, then (+) time since v-Req 26.0... -
Page 27: Flight Optimisation
Duration time for one full circle should at least be 16 seconds, some more time would be better. Whilst circling, the 6015-GPS determines the direction of least speed over ground, and checks also synchronously if in opposite direction there might be the fastest speed over ground. -
Page 28: Relocating Thermals
The recording mode does not need to be specifically activated. Each flight is automatically saved. The flight memory provided with the 6015-GPS not only records flight altitude but it also logs the position and the GPS-altitude of the pilot in the WGS84-coordinate system. -
Page 29: Data Transfer
Data exchange via PC The basic equipment of the 6015-GPS includes a data cable for the USB interface Mini B. Due to this feature the data transfer can be carried out in both directions. The data transmission is effected via serial interface COMX with: 57.600 baud; 8 databit; 1 stopbit; no parity; no Xon/Xoff. -
Page 30: Waypoints And Routes
With „Search“ ("Suchen") you select the program to be transferred and ending " *.moc ", e.g. 6015 V1_2_05 Eng.moc or or you drag it from the Explorer by „drag & drop“ into the field. Now connect the USB cable with the instrument. Afterwards you can set the interface in the field Com Port, or if it is unknown to you, set to Auto and have thereby an automatic search prompted. -
Page 31: Miscellaneous
Operation Manual Flytec 6015 Miscellaneous Batteries 2x Type AA, 1.5V Alkaline or 2x Type AA 1.2V NiMh Accum. Operating time with 2 Alkaline batteries is more than 40 hours. Batterie charge state Upon switch-on of the instrument, the actual charge state of the batteries is displayed on the start-up display screen. -
Page 32: Additional Information
This means that the altimeter has to be set precisely before take-off for any flight to a well-known altitude value. The 6015-GPS sets altitude after energising automatically to GPS-altitude. However, it may also be subject to variations. -
Page 33: Navigation
(like notebooks) should be operated as far away as possible from the 6015-GPS . The 6015-GPS is fitted with a highly sensitive Sirf III 20-Kanal GPS-receiver, which is featured with lesser power consumption and also a significantly shorter satellite detection time. -
Page 34: Flight Memory And Igc File
Since the proof of a completed flight depends entirely on the GPS recording, it is important to ensure before take-off that the GPS-receiver indeed receives satellite signals. Therefore please switch-on the 6015-GPS at least two minutes before take-off so that even pre-flight events are included in the recording. -
Page 35: Maintenance
In regard to the legal fact that it is solely the pilot who has the responsibility of The performance of his flights, the Company FLYTEC AG shall reject any claim on damage resulting from data loss or wrong data of your instrument. -
Page 36: Technical Data
Technisches Manual Flytec 6015 Anhang 12 Technical Data Altimeter: max. 12’000 m - Scale 1m Variometer: analog ± 10 m/s - Scale 0,2 m/s digital ± 300 m/s . Scale 0,1 m/s GPS: SiRF stare III receiver Compass function, speed, position...
