BK Precision 1685B Instruction Manual

Switching dc power supply
Hide thumbs Also See for 1685B:
Table of Contents

Advertisement

Quick Links

99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

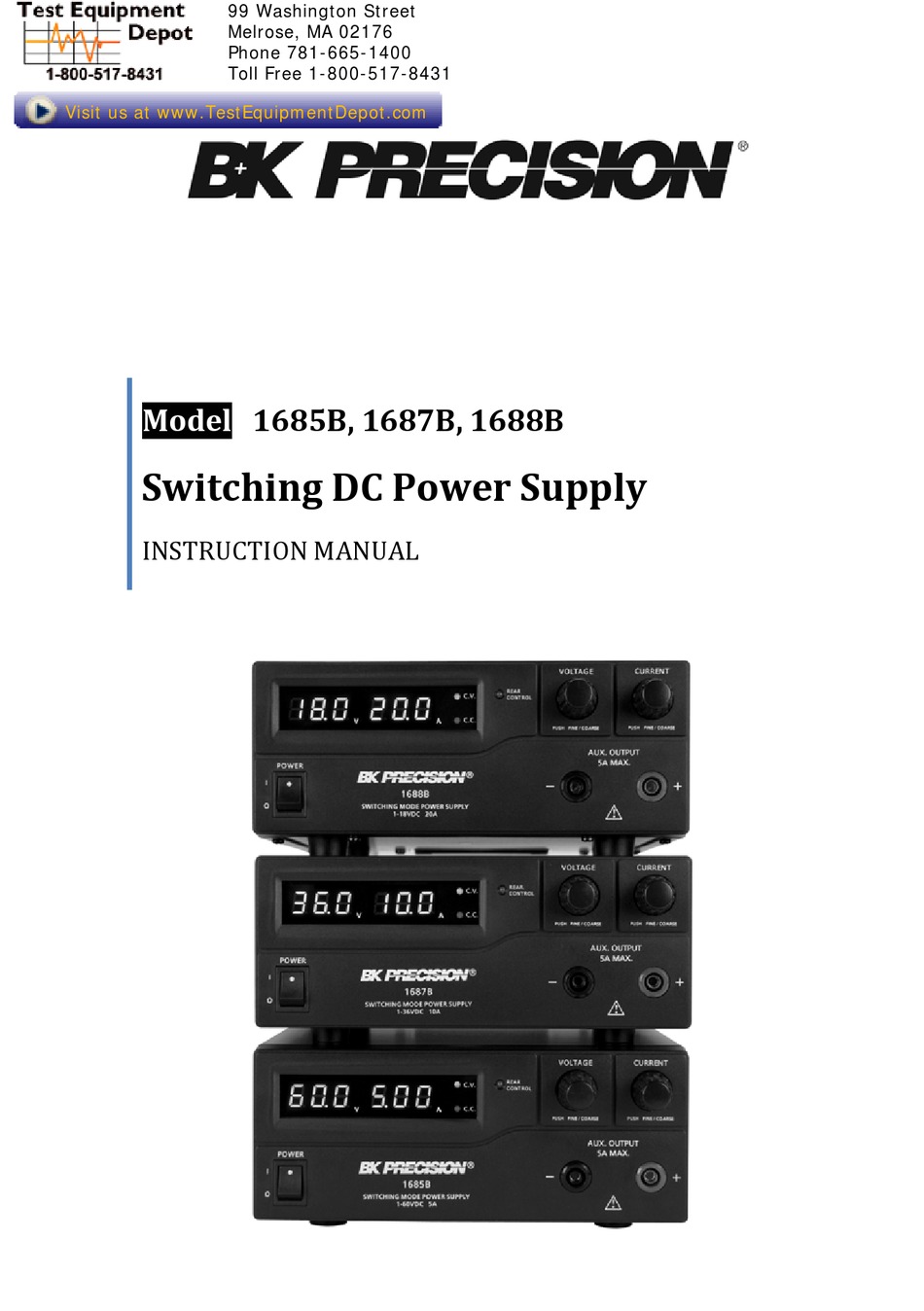

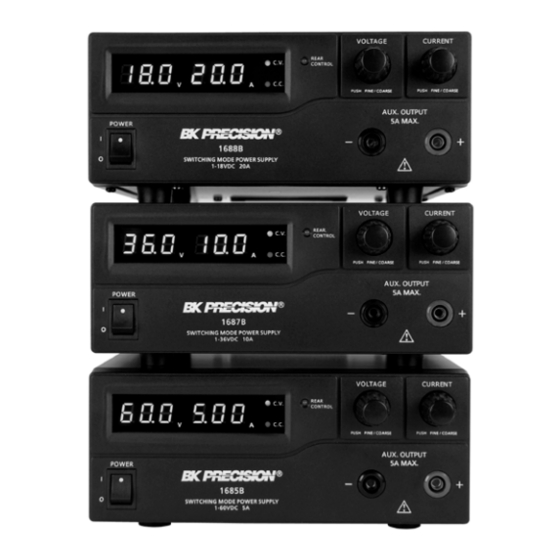

Model
Switching DC Power Supply
INSTRUCTION MANUAL
1685B, 1687B, 1688B
