REMOTE CONTROL ID
The remote control included with the display can be used to
control up to 26 individual Multeos monitors using what is
called the REMOTE CONTROL ID mode. The REMOTE
CONTROL ID mode works in conjunction with the Monitor
ID, allowing control of up to 26 individual Multeos moni-

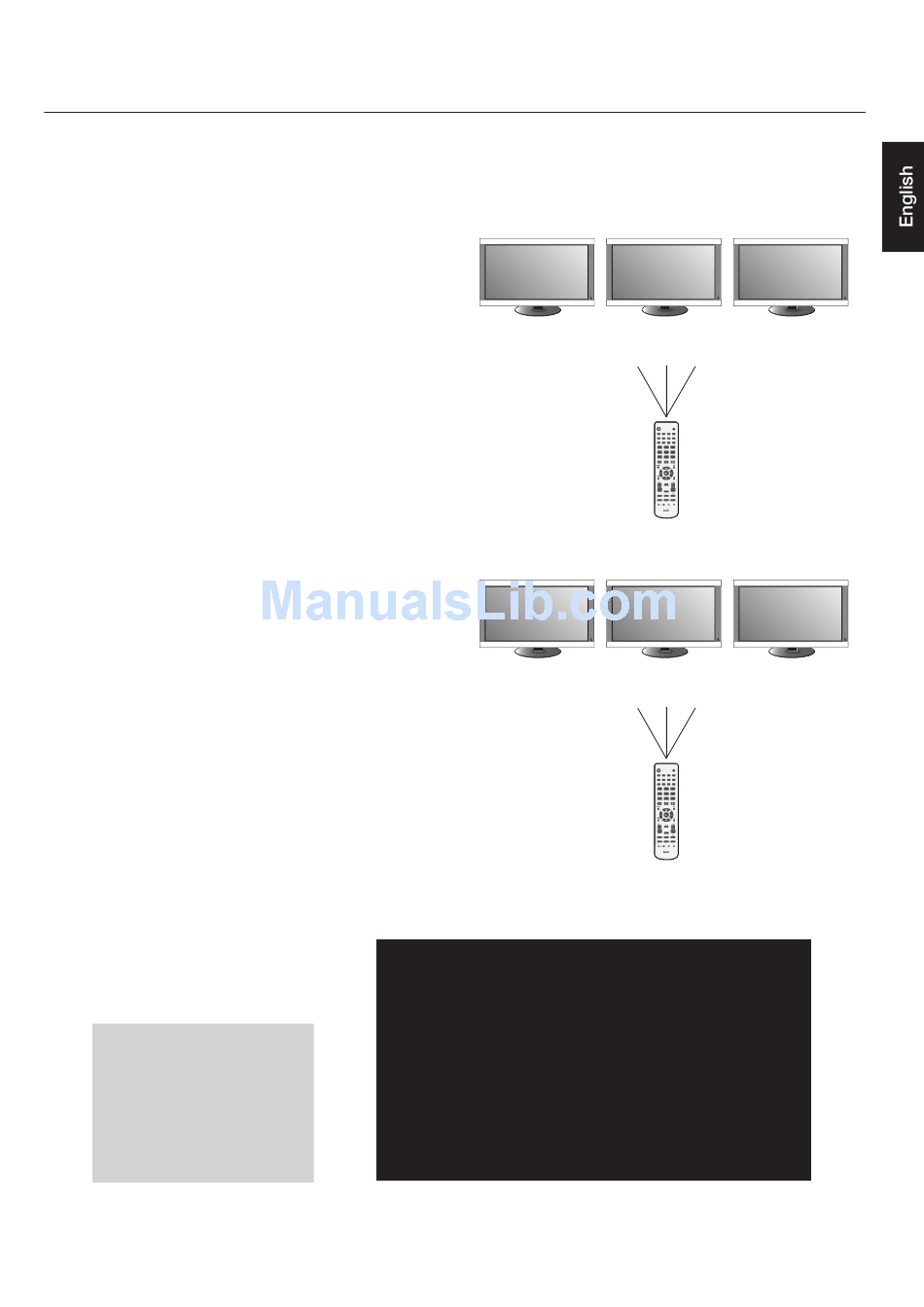

tors. For example: if there are many monitors being used in
the same area, a remote control in normal mode would send
signals to every monitor at the same time Figure 1. Using the
remote in REMOTE CONTROL ID mode will only operate
one specific monitor within the group Figure 2.
TO SET REMOTE CONTROL ID:
While holding down the REMOTE ID SET button on the
remote control, use the KEYPAD to input the Monitor ID
(1-26) of the display to be controlled via remote. The remote
can then be used to operate the monitor having that specific
Monitor ID number.
When 0 is selected or when the remote control is in normal
mode, all monitors will be operated.
TO USE REMOTE CONTROL ID MODE
ID Mode - To enter ID Mode press the REMOTE ID SET
button and hold down for 2 seconds.
Normal Mode - To return to Normal Mode press the
REMOTE ID RESET button and hold down for 2 seconds.
In order for this feature to work properly, the display must be
assigned a Monitor ID number. The Monitor ID number can
be assigned under the MULTI DISPLAY menu in the OSM
(See page 30).
ID number assigned to display
Press the "DISPLAY" button
on the remote to bring up
the Information OSM. The
Information OSM shows the
monitor ID number and other
information such as signal
type, zoom method, etc.
Part Names and Functions
Monitor iD:1
remote works
Figure 1
remote in normal
mode or the rEMotE
iD is set to 0
Monitor iD:1
remote does
not work
remote set up to
use remote iD:3
INFORMATION OSM
Monitor ID:1
Target ID:5
English-15
1-16

Remote Control ID Function

Monitor iD:2
remote works
POWER POWER GUIDE GUIDE
DVI DVI VGA VGA RGB/HV RGB/HV OPTION OPTION
HDMI HDMI DVD/HD DVD/HD VIDEO VIDEO TV TV
PICTURE PICTURE AUDIO AUDIO
MODE MODE SIZE SIZE SOUND SOUND INPUT INPUT
1 1 2 2 3 3
4 5 6
4 5 6
7 7 8 8 9 9
MUTE MUTE
STILL STILL
ON/OFF ON/OFF CAPTURE CAPTURE
PIP PIP INPUT INPUT
ON/OFF ON/OFF CHANGE CHANGE
REMOTE ID REMOTE ID
SET SET RESET RESET MTS MTS SLEEP SLEEP
REMOTE CONTROLLER RU-M111 REMOTE CONTROLLER RU-M111
Monitor iD:2
remote does
not work
POWER POWER GUIDE GUIDE
DVI DVI VGA VGA RGB/HV RGB/HV OPTION OPTION
HDMI HDMI DVD/HD DVD/HD VIDEO VIDEO TV TV
PICTURE PICTURE AUDIO AUDIO
MODE MODE SIZE SIZE SOUND SOUND INPUT INPUT
Figure 2
1 1 2 2 3 3
4 4 5 5 6 6
7 7 8 8 9 9
MUTE MUTE
STILL STILL
ON/OFF ON/OFF CAPTURE CAPTURE
PIP PIP
ON/OFF ON/OFF INPUT INPUT CHANGE CHANGE
REMOTE ID REMOTE ID
SET SET RESET RESET MTS MTS SLEEP SLEEP
REMOTE CONTROLLER RU-M111 REMOTE CONTROLLER RU-M111
AUDIO:IN1
SIZE:FULL
1024 X 768
48KHz/60Hz
- continued
Monitor iD:3
remote works
Monitor iD:3
remote works
DVI
