Connections

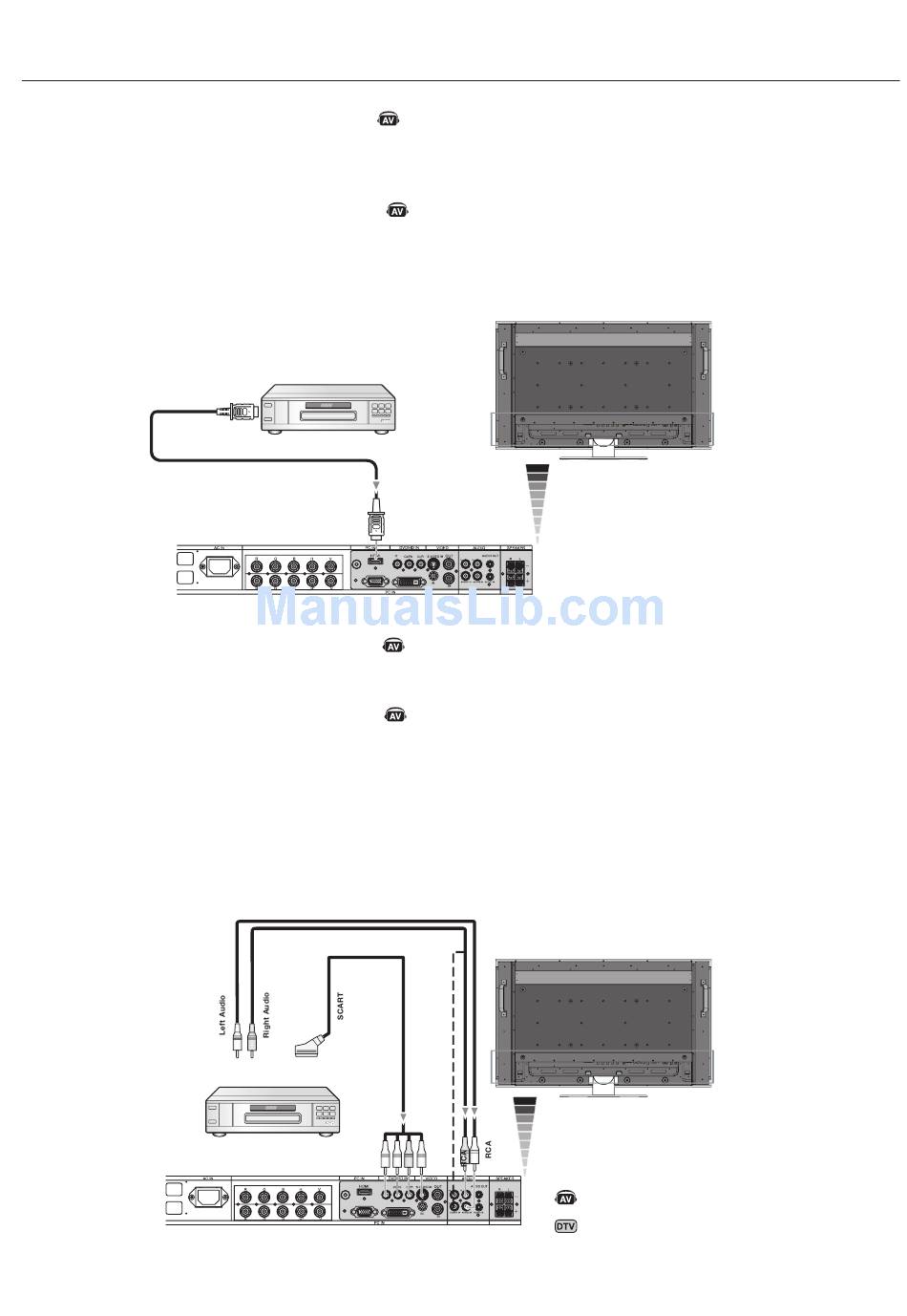

Connecting a DVD Player with HDMI out

Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user's manual for more information.
Connect the LCD Monitor to a DVD Player
• Please use an HDMI cable that has the HDMI logo.
• It may take a few seconds to show the signal.
• We do not support PC-DVI signals.
Connecting a DVD Player with SCART out
Connecting your DVD player to your LCD monitor will enable you to display SCART.
Connect the LCD Monitor to a DVD Player
• To connect the DVD/HD IN connector (RCA) on the LCD monitor and connect the video (sync) and the Video In connector
(RCA), use a separately available RCA connector cable.
• Some DVD players may have different connectors such as DVI-D connector.
• Select [ON] mode from the "SCART MODE" menu when you use a SCART connector. Mode selection, see "SCART" on
page 31.
• The AUDIO IN 2 and 3 (both RCA) can be used for audio input. For connection, select [IN1] or [IN3] from the AUDIO
INPUT button.
- continued
From HDMi output
HDMi Connector
RGB/HV OUT
VGA (D-SUB)
RGB/HV IN
to DVD Component
video output
RGB/HV OUT
VGA (D-SUB)
RGB/HV IN
DVI (DVI-D)
DVI (DVI-D)
