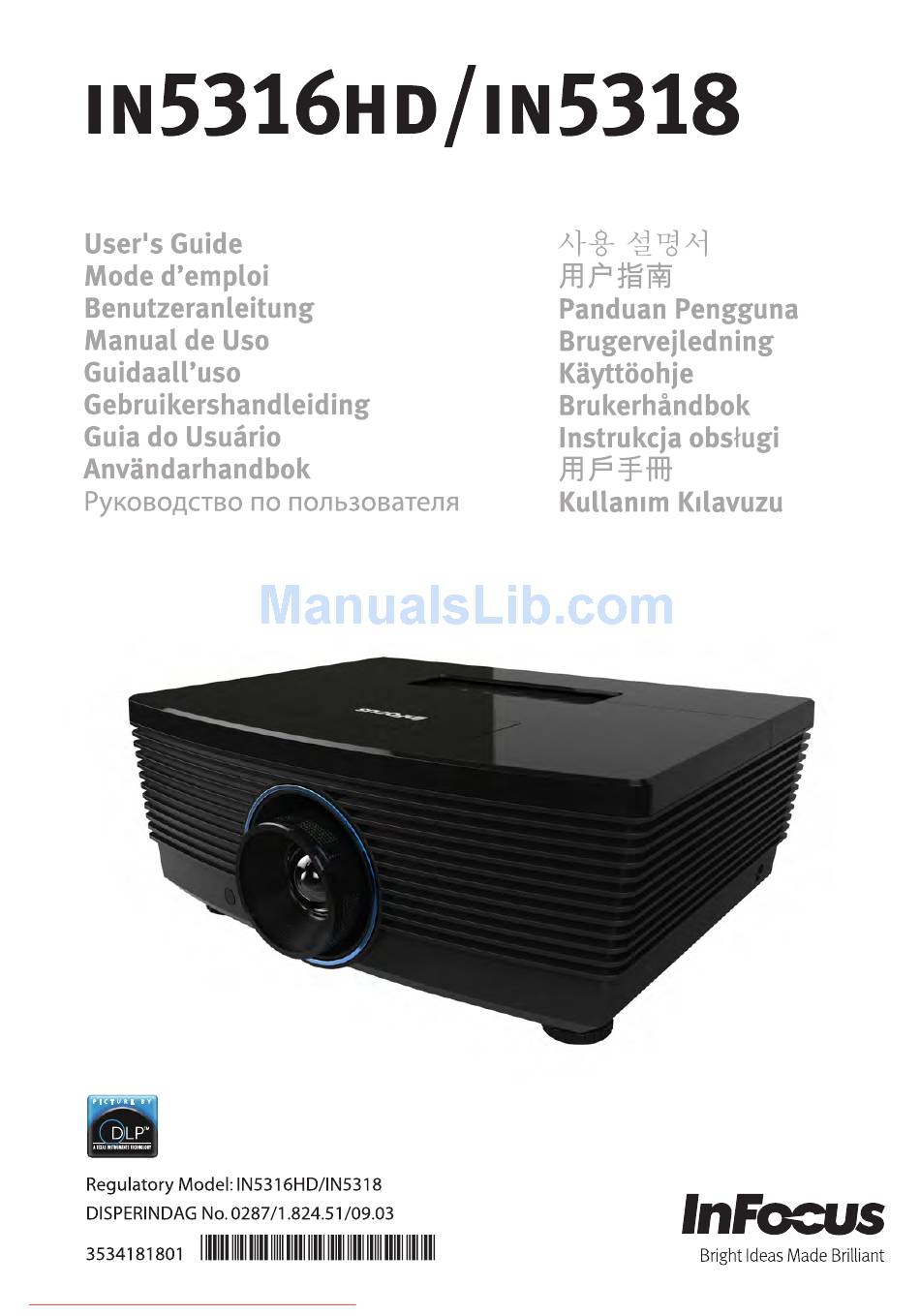

- Page 1 Downloaded from ProjectorsManual.com Manuals...
- Page 2 Adobe Systems Incorporated. DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.
- Page 3 General Safety Information Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact InFocus at www.infocus.com/support Follow all warnings and cautions in this manual and on the unit case.
- Page 4 Preface Projector Installation Notice Place the projector in a horizontal position The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically. Allow at least 50 cm (19.69 inch) clearance around the exhaust vent.
- Page 5 User’s Manual Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 39 for clear and safe instructions for this procedure. Before replacing the lamp: Unplug the power cord. Allow the lamp to cool for about one hour. Cleaning the Projector Unplug the power cord before cleaning.
-
Page 6: Table Of Contents
Preface Table of Contents GETTING STARTED................................1 ................................1 ACKING HECKLIST ............................... 2 IEWS OF ROJECTOR ARTS Front-angled View ................................ 2 Top view—On-screen Display (OSD) buttons ......................3 Rear view..................................4 Bottom view................................... 6 ..............................7 EMOTE ONTROL ARTS SETUP AND OPERATION..............................9 ........................ - Page 7 User’s Manual ................................46 UDIO ROBLEMS ..........................46 AVING THE ROJECTOR ERVICED HDMI Q & A ..................................47 SPECIFICATIONS ................................48 ................................. 48 PECIFICATIONS (1080P) ..................... 49 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ..........................49 (WUXGA) ....................50 ROJECTION ISTANCE VS ROJECTION...
-
Page 8: Getting Started
IN5316HD/IN5318 – User’s Manual ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: DLP P ROJECTOR CD-ROM EMOTE CONTROL ’ ATTERIES NOT INCLUDED S MANUAL CABLE OWER CORD EGISTRATION VARIES PER COUNTRY AFETY... -
Page 9: Views Of Projector Parts
User’s Manual Views of Projector Parts Front-angled View ABEL ESCRIPTION EE PAGE IR receiver Receives the IR signals from the remote control Lens Projection Lens Focus ring Focuses the projected image Zoom ring Enlarges the projected image Elevator foot Adjusts level of projector See Top view—On-screen Display (OSD) but- Function keys tons. -
Page 10: Top View-On-Screen Display (Osd) Buttons
IN5316HD/IN5318 – User’s Manual Top view—On-screen Display (OSD) buttons ABEL ESCRIPTION EE PAGE MENU Open and exit OSD menus Navigate and change settings in the OSD ◄ (Left cursor) Quick Menu – For Volume Navigate the OSD ▲ (Up cursor) Quick Menu –... -
Page 11: Rear View
User’s Manual Rear view ABEL ESCRIPTION EE PAGE DC 12V TRIGGER Connect a 12V screen trigger (200ma max) AUDIO OUT Connect an AUDIO CABLE to an external speaker system AUDIO3 (L and R) Connect the AUDIO CABLE from an input device VIDEO Connect the COMPOSITE CABLE from a video device S-VIDEO... - Page 12 IN5316HD/IN5318 – User’s Manual Connect the USB CABLE from a computer (used for presentation slide control with the projector remote) DISPLAYPORT Connect a DISPLAYPORT CABLE to a DISPLAYPORT source HDMI Connect the HDMI CABLE from an HDMI device VGA2 Connect the RGB CABLE from a computer or a video enabled device...
-
Page 13: Bottom View
EE PAGE Raise and rotate the feet to change and fine tune Leveling/Elevator Feet the angle of the projector. Only use with an InFocus ceiling mount system (p/n PRJ-MNT-UNIV). Ceiling support holes See your InFocus dealer or go to www.infocusstore.com. -
Page 14: Remote Control Parts
IN5316HD/IN5318 – User’s Manual Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo- rescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path be- tween the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens. - Page 15 User’s Manual ABEL ESCRIPTION EE PAGE Power ON Turn the projector on LED indicator Only lights when the remote keys are pressed Display Mode Choose a suitable preset mode for usage environment Contrast Display the Contrast setting bar and use the right and left keys to adjust Display the Brightness setting bar and use the right and left keys to ad- Brightness just.
-
Page 16: Setup And Operation
IN5316HD/IN5318 – User’s Manual ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the di- rection of the arrow. Insert the batteries (not included) as shown in the illustration. Replace the cover. -
Page 17: Installing Or Removing The Optional Lens
User’s Manual Installing or Removing the Optional Lens Caution: Do not shake or place excessive pressure on the projector or the lens components as the projec- tor and lens components contain precision parts. Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch. -
Page 18: Installing The New Lens
IN5316HD/IN5318 – User’s Manual Installing the New Lens Align the notches and correctly posi- tion the electrical contact pad as shown in the picture. Note: Pin of IRIS should be in the direction as shown in the picture. Rotate the lens clockwise until you feel it click into place. -
Page 19: Starting And Shutting Down The Projector
User’s Manual Starting and Shutting down the Projector Remove the lens cap. Connect the power cord to the pro- jector. Connect the other end to a wall outlet. Verify that the AC Power switch on the back of the unit is turned on. - Page 20 IN5316HD/IN5318 – User’s Manual If more than one input device is connected, press the SOURCE button and use ▲▼ to scroll among devices. • VGA 1 : Analog RGB • VGA 2 : Analog RGB • BNC : Analog / serial digital interface video inputs •...
-
Page 21: Adjusting The Projector Level
User’s Manual Adjusting the Projector Level Take note of the following when setting up the projector: • The projector table or stand should be level and sturdy. • Position the projector so that it is perpendicular to the screen. • Remove and discard the foam spacers on the rear leveling feet before adjusting the pro- jection angle. -
Page 22: Adjusting Projected Image Position Using Shift
Adjusting the vertical image position The vertical image height can be adjusted between 10% and -70% offset for IN5316HD (1080P); 5% and -65% for IN5318 (WUXGA) (offset = (O/H) x100%, O: distance from bottom of image to center of lens). -
Page 23: Adjusting The Horizontal Image Position
For example it is not possible to achieve the maximum horizontal image position if the vertical image position is at maximum. Please consult the Shift Range diagram below for further clarification. Shift Range Diagram For IN5316HD (1080P) For IN5318 (WUXGA) Wx5% Wx5%... -
Page 24: Adjusting Zoom, Focus And Keystone
IN5316HD/IN5318 – User’s Manual Adjusting Zoom, Focus and Keystone Use the Zoom ring to resize the projected im- age and screen size. Use the Focus ring to sharpen the projected image. Use the KEYSTONE buttons (on the projec- tor or the remote... -
Page 25: Adjusting The Volume
User’s Manual Adjusting the Volume Press the Volume but- tons (on the projector or the remote control). The volume control appears on the display. Use the Vol +/- buttons (on the projector or the remote control). Press the MUTE button to turn off the audio (This feature is only available on the re-... -
Page 26: On-Screen Display (Osd) Menu Settings
IN5316HD/IN5318 – User’s Manual (OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the projector keypad to navigate and make changes to the OSD. -
Page 27: Setting The Osd Language
User’s Manual Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to SETUP>>Basic. 2. Press the cursor ▲▼ button until Language is highlighted. 3. Press the cursor ◄► button until the language you want is selected. 4. -
Page 28: Osd Menu Overview
IN5316HD/IN5318 – User’s Manual OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. – 21 – Downloaded from ProjectorsManual.com Manuals... -
Page 29: Picture>>Basic Menu
User’s Manual PICTURE>>Basic Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the PICTURE>>Basic menu. Press the cursor ▲▼ button to move up and down in the PICTURE>>Basic menu. Press ◄► to change values for settings. Note: Customizing the settings in PICTURE>>Basic menu is only available in User 1/ 2/ 3 mode. -
Page 30: Picture>>Advanced Menu
IN5316HD/IN5318 – User’s Manual PICTURE>>Advanced Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the PICTURE>>Advanced menu. Press the cursor ▲▼ button to move up and down in the PICTURE>>Advanced menu. Press ◄► to change values for settings. -
Page 31: Hsg Adjustment
User’s Manual HSG Adjustment Press the ENTER/SELECT button to enter the HSG Adjustment sub menu. ESCRIPTION Press the ◄► buttons to set the Primary Color. Primary Color Notes: There are six colors (R/ G/ B/ C/ M/ Y) to be customized. Press the ◄►... -
Page 32: Display Menu
IN5316HD/IN5318 – User’s Manual DISPLAY Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the DISPLAY menu. Press the cursor ▲▼ button to move up and down in the DISPLAY menu. -
Page 33: Pc Detail Adjustment
User’s Manual PC Detail Adjustment Press the ENTER/SELECT button to enter the PC Detail Adjustment sub menu. Note: Customizing the settings in PC Detail Adjustment menu is only available when PC input source (ana- log RGB) is selected. ESCRIPTION Press the RE-SYNC button on the projector keypad or the AUTO IMAGE button on Auto the remote control to automatically adjust frequency, phase, and position. -
Page 34: Setup>>Basic Menu
IN5316HD/IN5318 – User’s Manual SETUP>>Basic Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP>>Basic menu. Press the cursor ▲▼ button to move up and down in the SETUP>>Basic menu. Press ◄► to change values for settings. -
Page 35: Menu Settings
User’s Manual Menu Settings Press the ENTER/SELECT button to enter the Menu Settings sub menu. ESCRIPTION Press the ◄► buttons to select from five OSD locations: Menu Position Top-Left/ Top-Right/ Center/ Bottom-Left/ Bottom-Right. Press the ◄► buttons to set the Menu Display timer before the OSD times out. Menu Display Time (Range: 5sec/ 10sec/ 15sec/ 20sec/ 25sec/ 30sec) –... -
Page 36: Source
IN5316HD/IN5318 – User’s Manual Source Press the ENTER/SELECT button to enter the Source sub menu. ESCRIPTION VGA 1 Press the ◄► buttons to enable or disable the VGA source. VGA 2 Press the ◄► buttons to enable or disable the HDMI source. -
Page 37: Lan Control Settings
User’s Manual Lan Control Settings Press the ENTER/SELECT button to enter the Lan Control Settings sub menu. ESCRIPTION Press the ◄► buttons to select projector remote command control. (Range: RS232/ RJ45) Control By Note: this setting changes the standby power: RS232 <1W (Default) ... - Page 38 IN5316HD/IN5318 – User’s Manual For simplicity and ease of operation, the projector provides diverse networking and remote management fea- tures. The LAN/RJ45 feature allows the projector to be connected to a network and remotely managed. Available remote management controls include: Power On/Off, Video-Source, Brightness and Contrast settings, Sound- Mute, etc.
- Page 39 User’s Manual Preparing Email Alerts 1. Make sure that user can access the homepage of LAN RJ45 function by web browser (for ex- ample, Microsoft Internet Explorer v6.01/v8.0). 2. From the Homepage of LAN/RJ45, click Alert Mail Settings. 3. By default, the input boxes in Alert Mail Settings are blank. 4.
- Page 40 IN5316HD/IN5318 – User’s Manual This is an optional field (for example, the projector administrator’s assistant). The From field is the sender’s email address (for example, the projector administrator). This is a required field. Select the alert conditions by checking the desired boxes.
-
Page 41: Setup>>Advanced Menu
User’s Manual SETUP>>Advanced Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the SETUP>>Advanced menu. Press the cursor ▲▼ button to move up and down in the SETUP>>Advanced menu. ESCRIPTION Press the ENTER/SELECT button to enter the Audio sub menu. See Audio on page Audio Press the ENTER/SELECT button to enter the Lamp sub menu. -
Page 42: Audio
IN5316HD/IN5318 – User’s Manual Audio Press the ENTER/SELECT button to enter the Audio sub menu. ESCRIPTION Press the ◄► buttons to adjust the audio Volume. Volume Press the ◄► buttons to adjust the audio Treble. Treble Press the ◄► buttons to adjust the audio Bass. -
Page 43: Lamp
User’s Manual Lamp Press the ENTER/SELECT button to enter the Lamp sub menu. ESCRIPTION Press the ◄► buttons to adjust lamp brightness. Lamp Mode Reset Lamp Timer Press the ENTER/SELECT button to reset the Lamp Hour after the lamp is replaced. Lamp Hour Displays the number of hours the lamp has been in use. -
Page 44: Closed Caption
IN5316HD/IN5318 – User’s Manual Closed Caption Press the ENTER/SELECT button to enter the Closed Caption sub menu. ESCRIPTION Closed Caption En- Press the ◄► buttons to turn on or off Closed Caption. able Press the ◄► buttons to select the Caption Version. -
Page 45: Status Menu
User’s Manual STATUS Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the STATUS Menu. ESCRIPTION Source Displays the activated input source. Resolution Displays the native resolution of input source. Lamp Hour Displays the number of hours the lamp has been in use. -
Page 46: Maintenance And Security
ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. Be sure to use the InFocus lamp module de- signed for this projector. You can order new lamps from www.infocusstore.com (in select areas), your retailer or your dealer. Only genuine InFocus lamps are tested for use in this projector. Use of non InFo- cus lamps may cause electrical shock and fire, and may void the projector warranty. - Page 47 User’s Manual Loosen the captive screw on the lamp cover. Pull up and remove the cover. Use a screwdriver to re- move the two captive screws from the lamp module. Pull out the lamp module. – 40 – Downloaded from ProjectorsManual.com Manuals...
- Page 48 IN5316HD/IN5318 – User’s Manual Reverse steps 1 to 7 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is level to avoid damage. Note: The lamp module must sit securely in place and the...
-
Page 49: Cleaning The Projector
User’s Manual Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 60 minutes before cleaning. Failure to do so could result in a severe burn. 2. -
Page 50: Troubleshooting
Common Problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact InFocus at www.infocus.com/support Often the problem is traced to something as simple as a loose connection. Check the following before proceeding to problem-specific solutions. -
Page 51: Led Error Messages
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before re- starting the projector. If the PWR or READY LED is still blinking or the TEMP LED is lit, contact InFocus Technical Support at www.infocus.com/support. Image Problems Problem: No image appears on the screen 1. -
Page 52: Lamp Problems
IN5316HD/IN5318 – User’s Manual Problem: The image is flat with no contrast Adjust the Contrast setting in the PICTURE >> Basic menu of the OSD. Problem: The color of the projected image does not match the source image. Adjust the Color Temperature and Gamma settings on the PICTURE >> Advanced menu of the OSD. -
Page 53: Audio Problems
3. Have the projector serviced. Having the Projector Serviced If you are unable to solve the problem contact InFocus Technical Support at www.infocus.com/support. If your projector needs repair, pack the projector in the original carton and include the return authorization number on the outside of the box. -
Page 54: Hdmi Q & A
IN5316HD/IN5318 – User’s Manual HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High- Speed cables. ˙Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal. -
Page 55: Specifications
User’s Manual PECIFICATIONS Specifications Model IN5316HD IN5318 Display type TI DMD 1080P 0.65” TI DMD WUXGA 0.67” Native Resolution 1920x1080 1920x1200 Projection distance 1.5 meters ~ 7 meters ( 4.92 ft ~ 22.97 ft ) (standard lens) Projection screen size 35.1”~205”... -
Page 56: Projection Distance Vs. Projection Size (1080P)
IN5316HD/IN5318 – User’s Manual Projection Distance vs. Projection Size (1080P) Projection Distance Projection Distance and Size Table Standard projection lens: TR: 1.54– 1.93; offset=10% IN5316HD 1.71/ 3.42/ 4.27/ 8.55/ 1.70/ 3.41/ 6.82/ 10.23/ Distance (m/inch) 67.3 134.6 168.2 336.4 67.1 134.2... -
Page 57: Projection Distance Vs. Projection Size (Wuxga)
User’s Manual Projection Distance vs. Projection Size (WUXGA) Projection Distance Projection Distance and Size Table Standard projection lens: TR: 1.54–1.93; offset=5% IN5318 Distance (m/inch) 1.66/65.5 3.33/130.9 4.16/163.7 8.31/327.3 1.66/65.3 3.32/130.6 6.63/261.2 9.95/391.8 Diagonal (inch/ft) 40/3.3 80/6.7 100/8.3 200/16.7 50/4.2 100/8.3 200/16.7 300/25 Image Height... -
Page 58: Timing Mode Table
IN5316HD/IN5318 – User’s Manual Timing Mode Table The projector can display several resolutions. The following table outlines the resolutions that can be displayed by the projector. VGA 1/2 HDMI OMPOSITE /RGBHV IGNAL ESOLUTION IDEO DIGITAL DIGITAL ANALOG — — —... - Page 59 User’s Manual VGA 1/2 HDMI OMPOSITE /RGBHV IGNAL ESOLUTION IDEO DIGITAL DIGITAL ANALOG — 720p 37.5 50.0 — 720p 45.0 60.0 — 1080i 33.8 60.0 — 1080i 28.1 50.0 — HDTV 1080p 24.0 — 1080p 28.13 25.0 — 1080p 33.75 30.0 —...
-
Page 60: Projector Dimensions
IN5316HD/IN5318 – User’s Manual Projector Dimensions – 53 – Downloaded from ProjectorsManual.com Manuals... -
Page 61: Regulatory Compliance
User’s Manual EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
