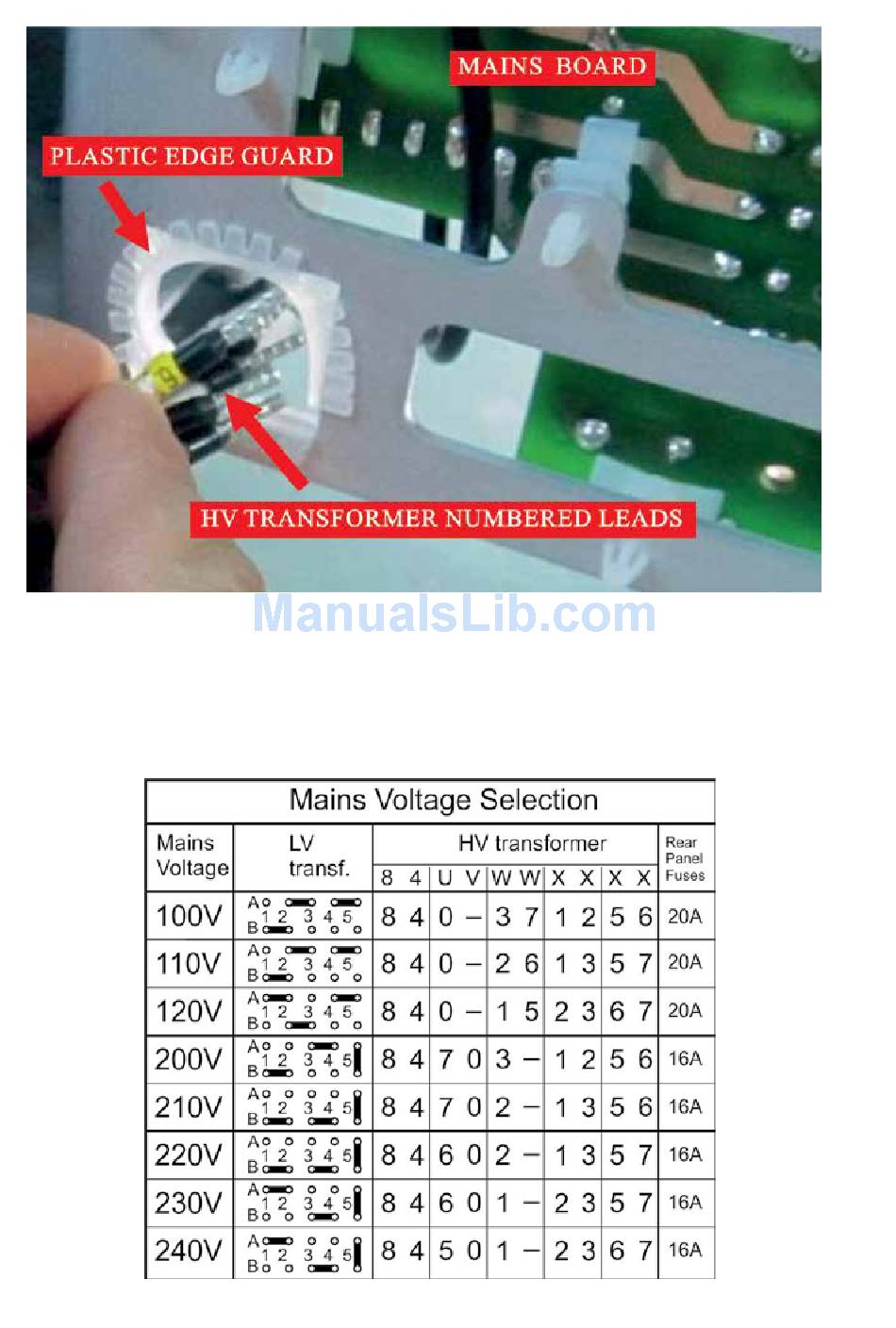

Turn the Mains board back to its original position, pull out the 8 wires carefully, and tighten the
holding screws.
From the voltage selection table shown below, select the row matching your nominal mains
voltage. Connect the 8 labeled HV-transformer primary wires to the voltage selector terminals
accordingly.
26
