ACOM 2100 TRANSFORMER INSTALLATION
After installing the transformer, the weight of the unit is about 30kg, which
should preferably be handled by two persons. An assistant may be needed
to hold the amplifier steady during transformer installation.
Position the amplifier, with the transformer not yet installed, flat on a table near the place where
it will be used. During the process described below, when the amplifier cover is removed, take
care not to torque or twist the chassis nor let the amplifier stand on edge. Do not lift the unit by
only one corner.
Remove the cover by removing all nine M3x6 screws.
Orient the amplifier on the table so that the transformer compartment is in front of you.

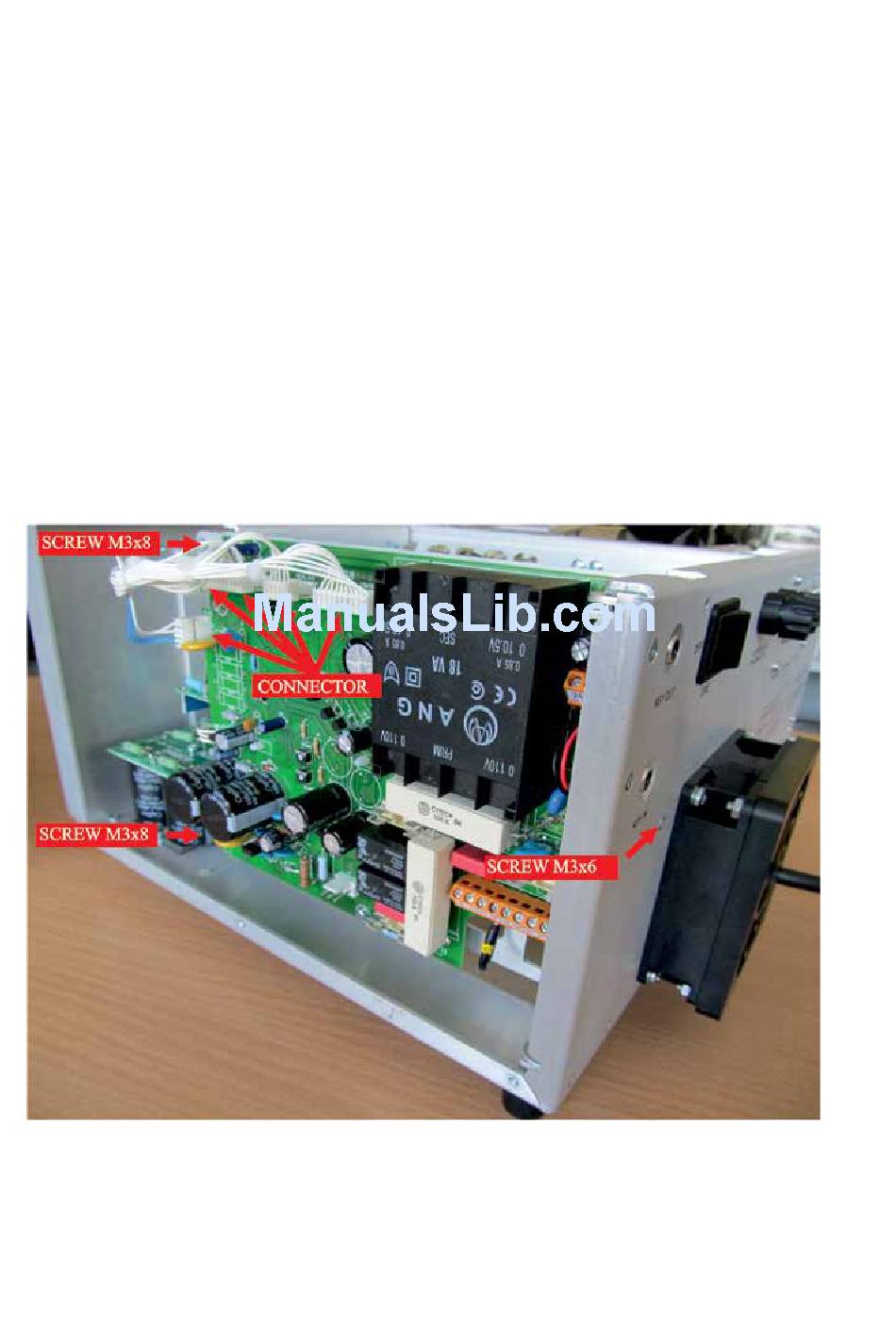

Unplug all five connectors from the Mains board and remove two M3x8 screws and one M3x6
screw.
22

APENDIX A

C A U T I O N
