Manual Connect

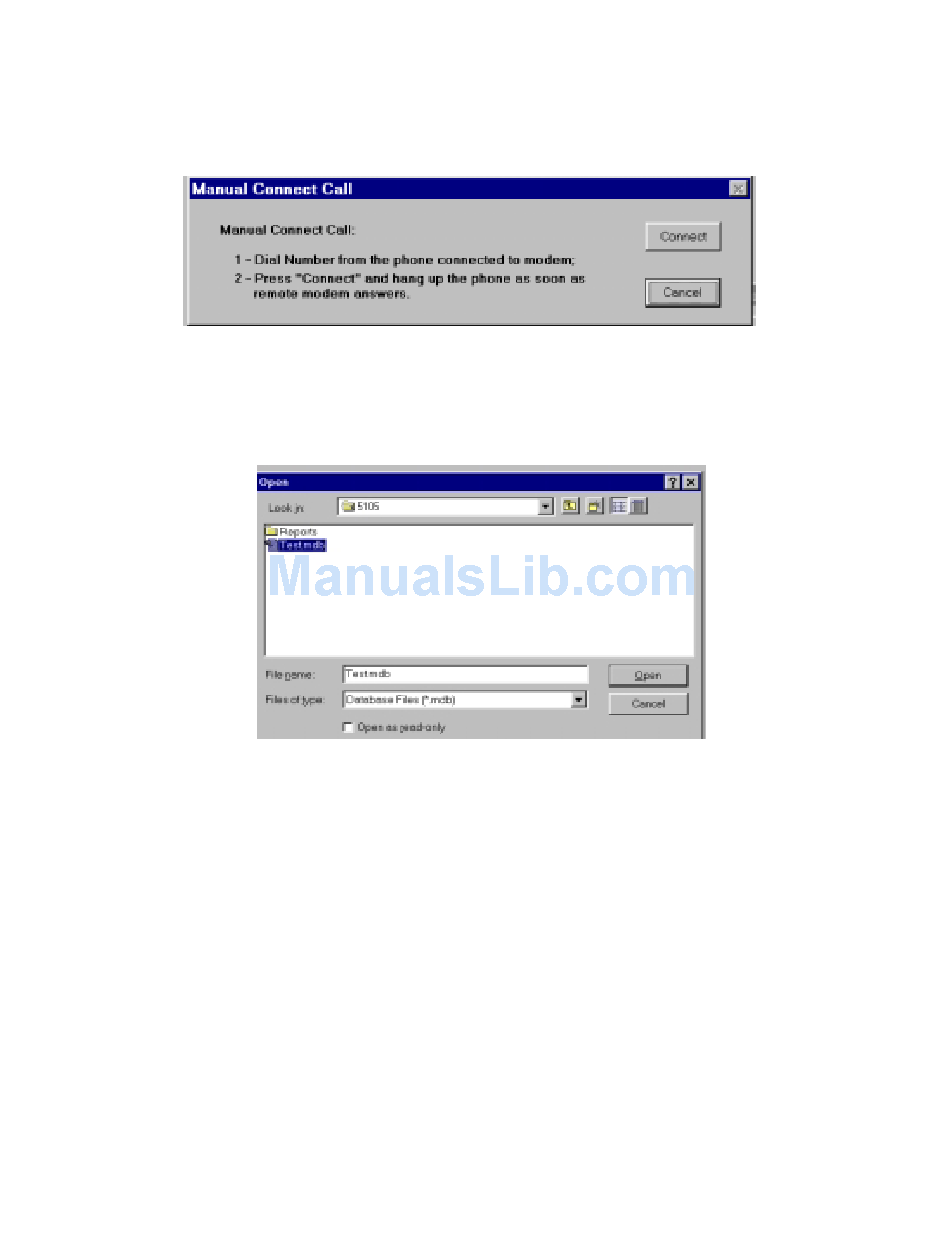

From the Programming Tool, select File, Modem, and Manual Connect. Follow the
instructions as described on the screen. Messages should be displayed stating,
"Initializing","Dialing", and "Modem Connection Successful". Click on OK.
Send data to VC-24
From the main menu, select Send Data to VC-24. If a file is open, that file will be sent to the VC-24 System.
If no file is open when Send Data to VC-24 is selected, the screen appears to allow selection of the data file to be
opened and downloaded to the VC-24. Highlight the desired file and click on OK.
Receive Data from VC-24
From the main menu, select Receive Data from VC-24. This will take place automatically. If you are not allowed
to select Receive Data from VC-24, close the currently open file and try again. Messages will be displayed stating
Receiving Data, Receive Data Completed Successfully. Click on OK.
