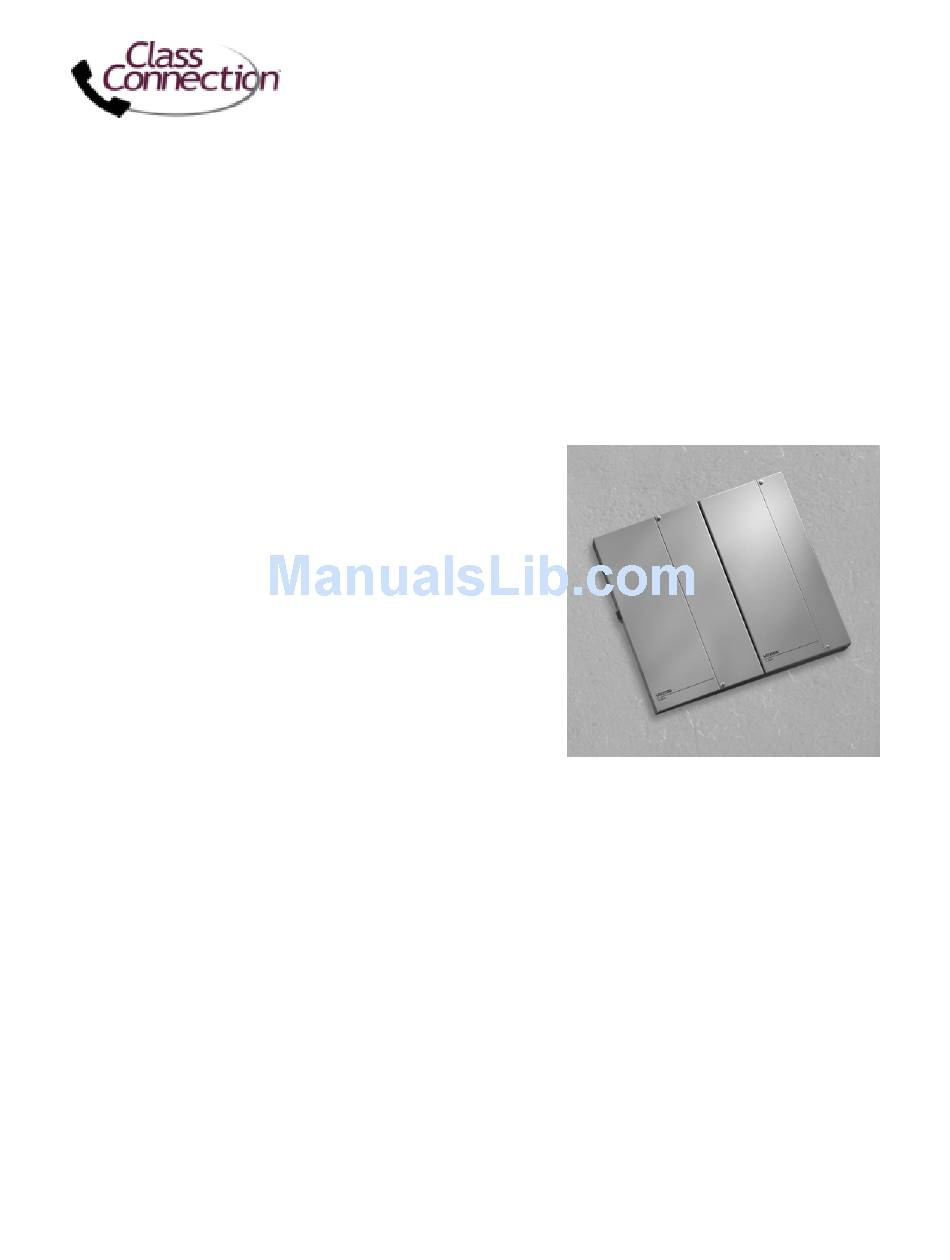

TALKBACK INTERCOM SYSTEM
EXPANDABLE 24/48/72/96 ZONE
CONTENTS
The VC-24 Talkback Intercom System provides 24 stations with one-way, two-way, group call and all call pages.
Each station can be programmed for one-way or two-way communication. The stations may be grouped into one-
way page groups. The system also provides the ability for a remote speaker location equipped with a call button to
call the attendant location. The attendant receives calling speaker identification when using a Caller ID equipped
telephone or a Caller ID display.
The VC-24 is compatible with standard 45 ohm speakers and one-way amplified speakers and can be accessed via a
single line phone, E-Key line port or PABX loop start trunk port. An RS-232 port on the control unit provides a
connection for a serial printer for printout of system activity.
The VC-24 provides a background music input and is designed to automatically mute music during a page. The
basic system also provides four (4) contact closures associated with the last 4 zones to allow for door strike plate
activation. Multiple VC-24 control units can be interconnected to allow global all call and global priority pages for
up to six (6) VC-24 control units.
VC-24
1, 2
2, 3
3, 4
3, 4
5
6
7
7
7
8
8
8
9
9
9
10
10
11
11-26
27,28
VC-24 with VC-24EXP Expansion Unit
28
28
29
29
30
1
Issue 1
947226
