1. Memory store function
There are 9 memory store programs to enable you to select required parameters for job in
hand and then store to select channel.
Press memory button until required program you wish to store is showing in LED
Then enter parameters as required, now press and hold save button for 3 seconds and
release, the green save LED will now light for about 2 seconds and then go out.
The parameters have now been stored.
The red select LED will then come back on, if you make any more adjustments these will
not be save until you save again
2. Normal / Easy start setup
This machine features two easy startup modes, one for AC and one for DC. They have pre-
programmed settings that are generally useable for most situations and many parameters
will be blocked out, however you can still adjust amperage etc. In normal mode ALL
functions can be programmed.
12

Controls and Settings

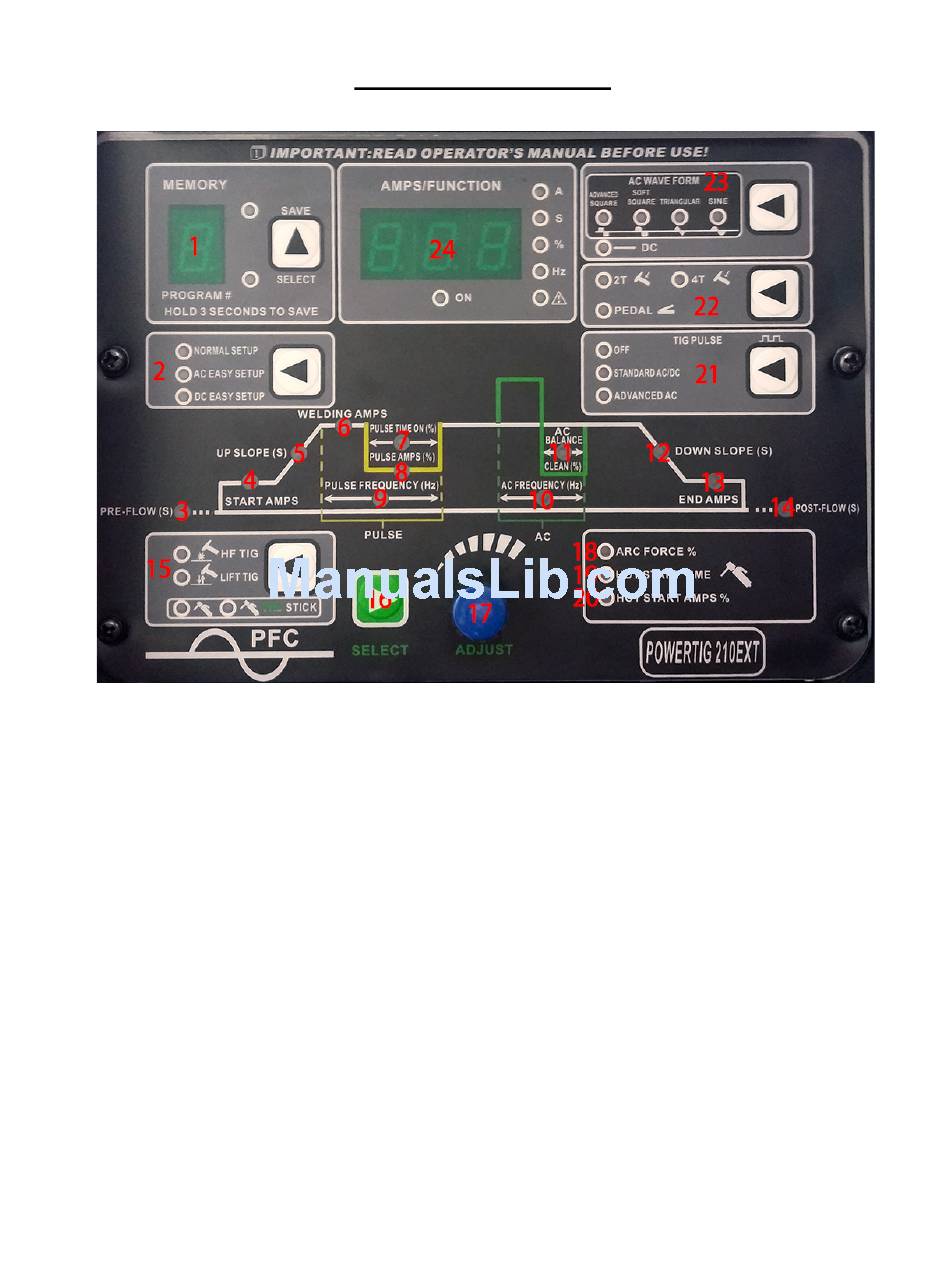

Fig 4
