Media dependent adapters

Advertisement

Quick Links

Installing Media
Dependent Adapters
(MDAs)
*302403-G*

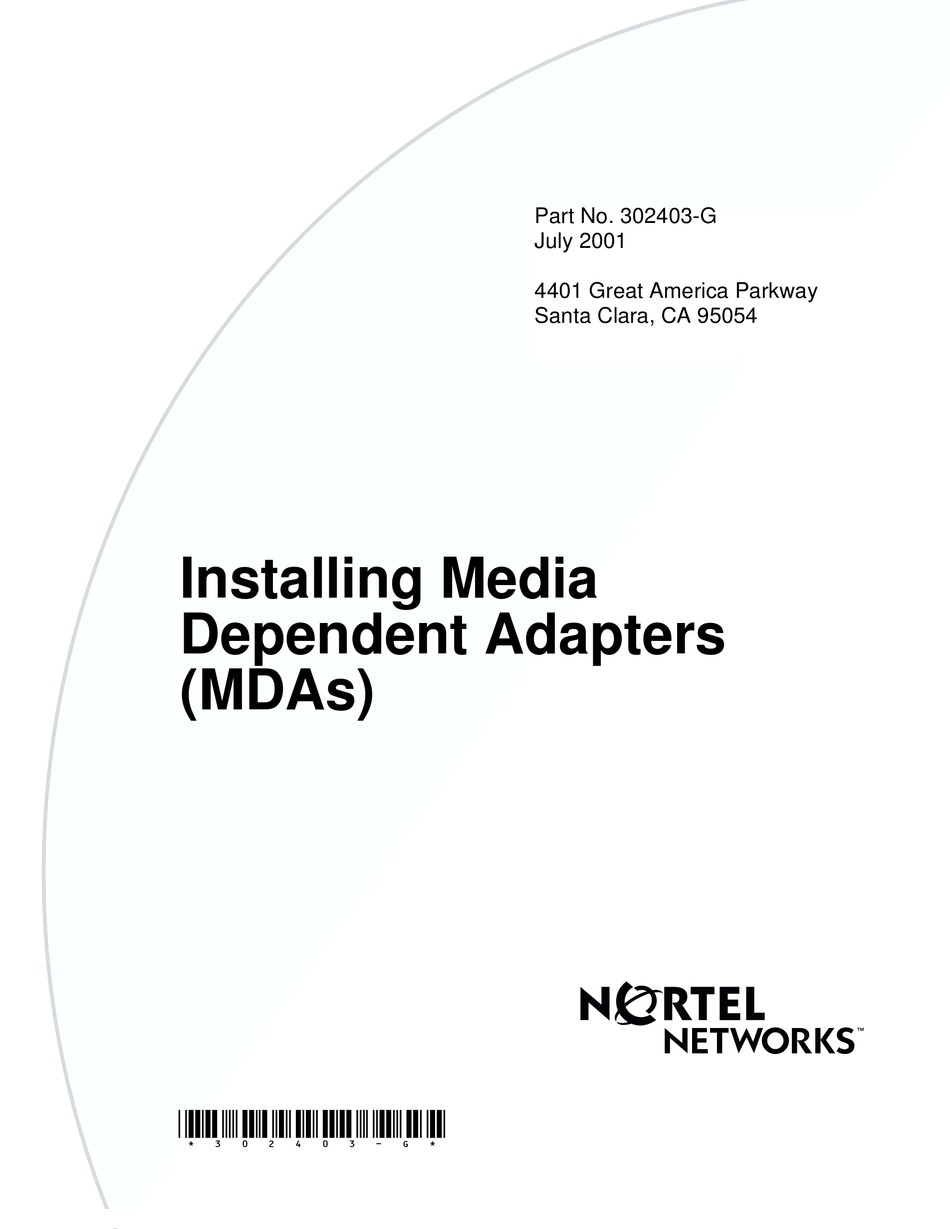

Part No. 302403-G
July 2001
4401 Great America Parkway
Santa Clara, CA 95054

Advertisement

loading

Summary of Contents for Nortel Media Dependent Adapters 302403-G

  • Page 1 Installing Media Dependent Adapters (MDAs) *302403-G* Part No. 302403-G July 2001 4401 Great America Parkway Santa Clara, CA 95054...
  • Page 2 Nortel Networks Inc. reserves the right to make changes to the products described in this document without notice. Nortel Networks Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Caution: Only qualified technicians should install this equipment. Place all printed circuit boards on an antistatic mat until you are ready to install them. If you do not have an antistatic mat, wear a discharge leash to free yourself of static before touching any of the printed circuit boards, or free yourself of static by touching a grounded metal object before handling a printed circuit board.
  • Page 4 Avertissement: L’équipement à fibre Warning: optique peut émettre des rayons laser ou infrarouges qui risquent d’entraîner des lésions oculaires. Ne jamais regarder dans le port d’un connecteur ou d’un câble à fibre optique. Toujours supposer que les câbles à fibre optique sont raccordés à une source lumineuse. Advertencia: Los equipos de fibra óptica Warning: pueden emitir radiaciones de láser o infrarrojas que...
  • Page 5 Introduction This guide describes and provides installation instructions for Nortel Networks* media dependent adapters (MDAs). It contains the following topics: • “Supported interfaces and products,” next • “MDA descriptions” on page 4 • “Installing an MDA” on page 24 •...
  • Page 6 Supported interfaces and products Table 1 shows the interface types used with the MDAs described in this guide. Table 1 MDAs and interface types • 400-4TX MDA • 8100-4TX MDA • BPS2000-4TX MDA • 400-2FX MDA • 8100-2FX MDA • BPS2000-2FX MDA •...
  • Page 7 • “GBIC MDA” on page 22 10BASE-T/100BASE-TX MDAs The 10BASE-T/100BASE-TX MDAs use four RJ-45 (8-pin modular) connectors, configured as media dependent interface- crossover (MDI-X) connectors. These ports connect over straight cables to the network interface controller (NIC) card in a node or server, similar to a conventional Ethernet repeater hub.
  • Page 8 Figure 1 400-4TX and 8100-4TX MDA front panels 400-4TX MDA 8100-4TX MDA The 10BASE-T/100BASE-TX MDA ports can operate at either 10 Mb/s or 100 Mb/s. The port speed is determined through autonegotiation with its connecting device. F Dx Activity 400-4TX MDA F Dx Activity 8100-4TX MDA...
  • Page 9 Table 2 describes the 400-4TX and 8100-4TX MDA front-panel. Table 2 400-4TX and 8100-4TX MDA front panel Item Label Description 100BASE-TX port status LEDs (green): 10BASE-T port status LEDs (green): F Dx Full-duplex port status LEDs (green): Activity Port activity LEDs (green): 10BASE-T/100BASE-TX RJ-45 (8-pin modular) port connectors.
  • Page 10 Figure 2 shows the front panel of the BPS2000-4TX MDA. Figure 2 BPS2000-4TX MDA front panel Table 3 describes the BPS2000-4TX MDA front-panel components. Table 3 BPS2000-4TX MDA description Item Label Description 10/100 10BASE-T/100BASE-TX port status LEDs: Activity Port activity LEDs (green): BPS2000-4TX MDA On (green): The corresponding port is set to operate at 100 Mb/s.
  • Page 11: 100Base-Fx Mdas

    Table 3 BPS2000-4TX MDA description (continued) Item Label Description 10BASE-T/100BASE-TX RJ-45 (8-pin modular) port connectors. 100BASE-FX MDAs The 100BASE-FX MDAs conform to the IEEE 802.3u 100BASE-FX standard and can attach fiber-based 100 Mb/s connections to Fast Ethernet devices. The 100BASE-FX MDAs do not support single-mode fiber cable.
  • Page 12 Figure 3 shows the front panels of the 400-2FX MDA and the 8100-2FX MDA. Figure 3 400-2FX and 8100-2FX MDA front panels 400-2FX MDA 100BASE-FX 8100-2FX MDA 100BASE-FX 100BASE-FX 100BASE-FX 8100-2FX MDA Link F Dx Activity 400-2FX MDA Link F Dx Activity BS45071A...
  • Page 13 Table 4 describes the dual-port 400-2FX MDA and the 8100- 2FX MDA front-panel components. Table 4 400-2FX MDA and 8100-2FX MDA description Item Label Description Link Communications link LEDs (green): F Dx Full-duplex port status LEDs (green): Activity Port activity LEDs (green): 100BASE-FX port connectors: Models 400-2FX and 8100-2FX use SC connectors.
  • Page 14 Figure 4 BPS2000-2FX MDA front panel BPS2000-2FX MDA Table 5 describes the dual-port BPS2000-2FX MDA front-panel components. Table 5 BPS2000-2FX MDA description Item Label Description Link Link status LEDs (green): Activity Port activity LEDs (green): 100BASE-FX port connectors: The BPS2000-2FX MDA uses SC connectors. BPS2000-2FX MDA On (green): Valid 100 Mb/s communications link.
  • Page 15 Quad-port 100BASE-FX MDAs The quad-port 100BASE-FX MDAs use four longwave 1300 nm MT-RJ connectors to attach devices over 62.5/125 micron multimode fiber optic cable. Figure 5 shows the front panels of the 400-4FX MDA and the 8100-4FX MDA. Figure 5 400-4FX and 8100-4FX MDA front panels 400-4FX MDA 8100-4FX MDA 400-4FX MDA...
  • Page 16 Table 6 describes the 400-4FX MDA and the 8100-4FX MDA front-panel components. Table 6 400-4FX MDA / 8100-4FX MDA description Item Label Description Link Communications link LEDs (green): F Dx Full-duplex port status LEDs (green): Activity Port activity LEDs (green): 100BASE-FX port connectors: Models 400-4FX and 8100-4FX use MT-RJ connectors.
  • Page 17 Figure 6 BPS2000-4FX MDA front panel BPS2000-4FX MDA Table 7 describes the BPS2000-4FX MDA front-panel components. Table 7 BPS2000-4FX MDA description Item Label Description Link Link status LEDs (green): Activity Port activity LEDs (green): 100BASE-FX port connectors: The BPS2000-4FX MDA uses MT-RJ connectors. BPS2000-4FX MDA On (green): Valid 100 Mb/s communications link.
  • Page 18 1000BASE-X MDAs The following are the 1000BASE-FX MDAs. Table 8 1000BASE-FX MDAs Shortwave gigabit Longwave gigabit For a complete list of MDAs, see installation instructions, see Shortwave Gigabit MDAs The following 1000BASE-SX MDAs conform to the IEEE 802.3z 1000BASE-SX standard and use shortwave 850 nm fiber optic connectors to connect devices over multimode (550 m/1805 ft.) fiber optic cable.
  • Page 19 Figure 7 450-1SR and 450-1SX MDA front panels 450-1SR MDA (1-port redundant) 1000BASE-SX 450-1SX MDA (single port) 1000BASE-SX 1000BASE-SX Link Phy Select Activity 450-1SR MDA Link Activity 450-1SX MDA BS45044A...
  • Page 20: Front Panel Components

    Table 9 describes the 450-1SR MDA and the 450-1SX MDA front panel components. Table 9 450-1SR / 450-1SX MDA description Item Label Link (or) Phy Select Activity Description Communication link LEDs (green): On: Valid communications link. Off: The communications link connection is bad or there is no connection to this port.
  • Page 21 Longwave Gigabit MDAs The following 1000BASE-LX MDAs conform to the IEEE 802.3z 1000BASE-LX standard and use longwave 1300 nm fiber optic connectors to connect devices over single mode (5 km/3.1 mi) or multimode (550 m/1805 ft) fiber optic cable. • 450-1LR MDA -- single MAC MDA with a separate redundant Phy (backup Phy port).
  • Page 22 Figure 8 450-1LR and 450-1LX MDA front panels 450-1LR MDA (1-port redundant) 1000BASE-LX 450-1LX MDA (single port) 1000BASE-LX 1000BASE-LX Link Phy Select Activity 450-1LR MDA Link Activity 450-1LX MDA BS45045A...
  • Page 23 Table 10 describes the 450-1LR MDA and the 450-1LX MDA front-panel components. Table 10 450-1LR and 450-1LX MDA description Item Label Link (or) Phy Select Activity Description Communication link LEDs (green): On: Valid communications link. Off: The communications link connection is bad or there is no connection to this port.
  • Page 24 GBIC MDA The 450-1GBIC MDA (Figure 9) has a single Host port for Gigabit Interface Converters (GBICs). GBICs are hot-swappable input/output enhancement components that link Gigabit Ethernet ports with fiber optic networks. For more information about GBICs, see the publication Installing Gigabit Interface Converters (GBICs), part number 312865-A.
  • Page 25 Figure 9 450-1GBIC MDA Front Panel 450-1GBIC MDA GBIC model with extractor tabs GBIC model with extractor handle GBIC Link Activity 450-1GBIC MDA SC connector BS450102A...
  • Page 26: Installing An Mda

    Table 11 describes the 450-1GBIC MDA front-panel components. Table 11 450-1GBIC MDA description Item Label Link Activity Installing an MDA Before you begin installing an MDA, see on page 4 for specific information about your MDA. Description Communication link LEDs (green): On: Valid communications link.
  • Page 27 The Uplink/Expansion Module slot on supported switches accommodates a single MDA using the following connectors. Table 12 MDA cable connectors 10/100BASE-TX, page 5 100BASE-FX, page 9 1000BASE-SX, page 16 1000BASE-LX, page 16 GBIC MDA, page 22 MDAs are not hot-swappable. To avoid Caution: damage to the switch or MDA, power down the switch or disconnect the switch module from the switch backplane...
  • Page 28 Figure 10 Installing an MDA Uplink/Expansion Module 1 = Card guides 2 = Uplink module slot Press the MDA firmly into the Uplink/Expansion Module slot. Be sure that the MDA is fully seated into the mating connector. Secure the MDA by tightening the thumb screws on the MDA front panel.
  • Page 29 For instructions on attaching devices to the MDA ports, refer to the publication for your switch. After connecting the port cables, follow the instructions to connect power and verify the installation. Note: The IEEE 802.3u specification requires that all ports operating at 100 Mb/s use only Category 5 unshielded twisted pair (UTP) cabling.
  • Page 30 Installing a GBIC in an MDA Before installing a GBIC, see specific information about your MDA. The 450-1GBIC MDA Host port is covered with a spring-loaded filler panel that rotates out of the way as you push the GBIC into place.
  • Page 31 Figure 11 Installing a GBIC Press on the front of the GBIC until it snaps into place. Remove the rubber plug to connect cables. Removing an Installed GBIC from an MDA For a description of the GBIC MDA, see page To remove an installed GBIC: Do one of the following: •...
  • Page 32: 1000Base-Lx Multimode Applications

    For more information about the SMF/ MMF patch cord, see your Nortel Networks sales representative. The 1000BASE-LX transceiver is designed to mechanically accommodate the single-mode ferrules used on one end of the special offset SMF/MMF patch cord.
