Summary of Contents for Nortel Meridian M2000 Series

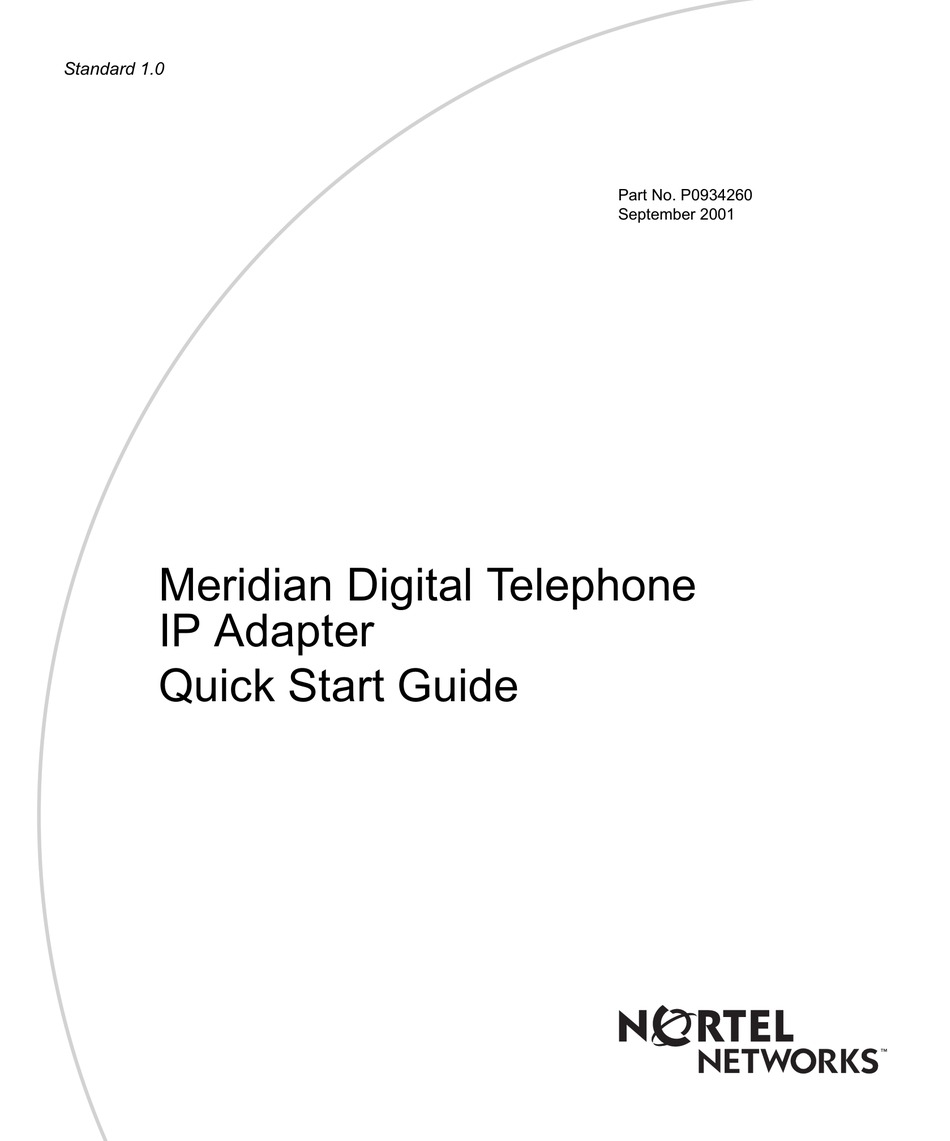

- Page 1 $9,3/,7/ 3DUW 1R 3 6HSWHPEHU 0HULGLDQ 'LJLWDO 7HOHSKRQH ,3 $GDSWHU 4XLFN 6WDUW *XLGH...
- Page 2 Users must take full responsibility for their applications of any product specified in this document. Printed in Canada. 7UDGHPDUNV ‹ NORTEL NETWORKS is a registered trademark of Nortel Networks. ‹ ‹ Microsoft and Windows NT are registered trademarks of Microsoft Corporation.
- Page 3 $9,3/,7/ 3UHIDFH Congratulations on your purchase of the Meridian Digital Telephone IP Adapter unit. Your new Meridian Digital Telephone IP Adapter unit gives you the advantage of low cost long distance internet telephone calls. There are two kinds of Meridian Digital Telephone IP Adapter units: •...
- Page 4 $9,3/,7/ 3UHIDFH 3 ...
- Page 5 $9,3/,7/ ,QVWDOODWLRQ You need a 10BaseT Ethernet cable to provide the Meridian Digital Telephone IP Adapter units with voice over IP capability. For instructions on how to install the External IP Adapter unit turn to “Installing the External IP Adapter unit” on page ,QVWDOOLQJ WKH ,QWHUQDO ,3 $GDSWHU You need the following tools to install the Internal IP Adapter circuit card in your...
- Page 6 $9,3/,7/ ,QVWDOODWLRQ Secure the circuit card to the footstand with the two screws provided. Plug the 18 cm (7 inch), TCM cable into the RJ-11 jack on the telephone (the other end is attached to the Internal IP Adapter circuit card). Re-attach the footstand to the bottom of the telephone (2 screws).
- Page 7 $9,3/,7/ ,QVWDOODWLRQ Note: You may need to adjust the cable loops to make them as tight as possible. ,QVWDOOLQJ WKH ([WHUQDO ,3 $GDSWHU XQLW To install the External IP Adapter unit on a desk, attach the rubber feet to the bottom and continue with “Connecting the Meridian Digital Telephone IP Adapter unit to the network”...
- Page 8 $9,3/,7/ ,QVWDOODWLRQ As soon as you connect the Meridian Digital Telephone IP Adapter unit to the power source, the unit begins to power up and the power LED comes on. The power-up cycle takes about 30 seconds to complete. When the Meridian Digital Telephone IP Adapter unit completes a successful self-test, the power LED flashes three times and the telephone display shows one of the following two messages: •...
- Page 9 $9,3/,7/ &RQILJXUDWLRQ You can configure the Meridian Digital Telephone IP Adapter unit through the telephone set. Before you begin, your System Administrator must supply you with a completed Meridian Digital Telephone IP Adapter telephone menu — Configuration Values form. Use the information provided on this form to configure the Meridian Digital Telephone IP Adapter unit.
- Page 10 $9,3/,7/ &RQILJXUDWLRQ Note: If, at any time while working with the telephone set menu, you make a mistake, you can return to the previous level in the menu system by pressing the Release (Rls, R, or Goodbye depending on your telephone set) key once. &RQILJXULQJ WKH 0HULGLDQ 'LJLWDO 7HOHSKRQH ,3 $GDSWHU XQLW After installing the Meridian Digital Telephone IP Adapter unit and powering up: Press the Release key four times within three seconds to access the telephone...
