Klein Tools MM200 Instruction Manual

ENGLISH
6. Capacitance < 200 F
H
z%
Temp
µA
mA
H A
z%
Temp Temp
Temp
m
COM
600V MAX
~ ~
10A/250V 400mA/250V
• Safely discharge capacitor before measurement.
• Reading may take up to 60 seconds for large capacitors.
7. Frequency (Hz)/Duty Cycle < 1MHz
PRESS
H
z%
Temp
H
µA z%
mA
Hz %
A
• Follow AC Voltage test setup.
≤ ≤
8. Temperature: -4° °F 1832°
H
z%
Temp
µA
H
z%
mA
A
Temp
µA
Temp
m
COM
600V MAX
10A/250V ~ ~
400mA/250V
mA
A
• Use included thermocouple and adapter.
• Do not apply voltage to thermocouple.
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
OL
Negative DC Value Overload: Range Exceeded
H
Low Battery Hold Active
V
Auto Range Active Voltage Measurement
AUTO
%
Duty Cycle Mode Frequency Mode
A Ω
Current in Amps Resistance in Ohms
Diode Test Continuity Test
n F
Nano 10 Temperature in Fahrenheit
-9 °
m F
Milli 10 Capacitance in Farads
-3
µ M
Micro 10 -6 Mega 10 6
k
Kilo 10 3
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
400mV ~ 600V 0.1mV ~ 1V ± (0.5% + 3 digits)
Overload Protection: 600V RMS Input Impedance: > 10MΩ
AC Voltage Measurement
Range Resolution Accuracy
4V ~ 600V 1mV ~ 1V ± (1.2% + 5 digits)
Overload Protection: 600V RMS Frequency: 50 ~ 60Hz
Input Impedance: > 10MΩ Response: Averaging
AC/DC Current Measurement
Range Resolution DC Accuracy AC Accuracy
400 A ~ 400mA 0.1 A ~ 0.1mA ± (1.0% + 3 d) ± (1.2% + 3 d)
10A 0.01A ± (3.0% + 5 d) ± (3.0% + 5 d)
Overload Protection: Max Input Current:
mA Input: F400mA / 250V fuse mA Input: 400mA DC / AC RMS
• •
10A Input: F10A / 500V fuse 10A Input: 10A DC / AC RMS
• •
Resistance Measurement
Range Resolution Accuracy
400Ω ~ 4MΩ 0.1Ω ~ 0.001MΩ ± (0.8% + 4 digits)
40MΩ 0.01MΩ ± (1.5% + 4 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution Accuracy
4nF ~ 40 F 0.001nF ~ 0.01 F ± (3.0% + 6 digits)
200 F 0.1 F ± (4.0% + 6 digits)
Overload Protection: 600V RMS
4nF Range: Stated accuracy with film capacitor or better.
Frequency Measurement
Range Resolution Accuracy
9.999Hz ~ 999.9kHz 0.001Hz ~ 0.1kHz ± (0.5% + 2 digits)
Overload Protection: 600V RMS
Sensitivity: 0.7V RMS at 1MHz
Temperature Measurement
Range Resolution Accuracy
-4°F ~ 32°F 1°F ± (5.0% + 2 digits)
32°F ~ 1832°F 1°F ± (3.0% + 2 digits)
Overload Protection: 600V RMS
Sensor: K-type thermocouple, accuracy not listed
Duty Cycle Measurement
Range Resolution Accuracy
0.1% ~ 99.9% 0.1% ± (2% + 5 digits)
Overload Protection: 600V RMS
Frequency: 0.5Hz ~ 100kHz (pulsewidth > 2 sec)
Diode Test
Overload Protection Test Current Open Circuit Voltage
600V RMS Appx. 0.6mA Appx. < 1.5V DC
Continuity Test
Overload Protection Open Circuit Voltage
600V RMS Appx. 0.44V
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139572T Rev. 11/13 C 139572T Rev. 11/13 C
MM200

Instruction Manual

ENGLISH

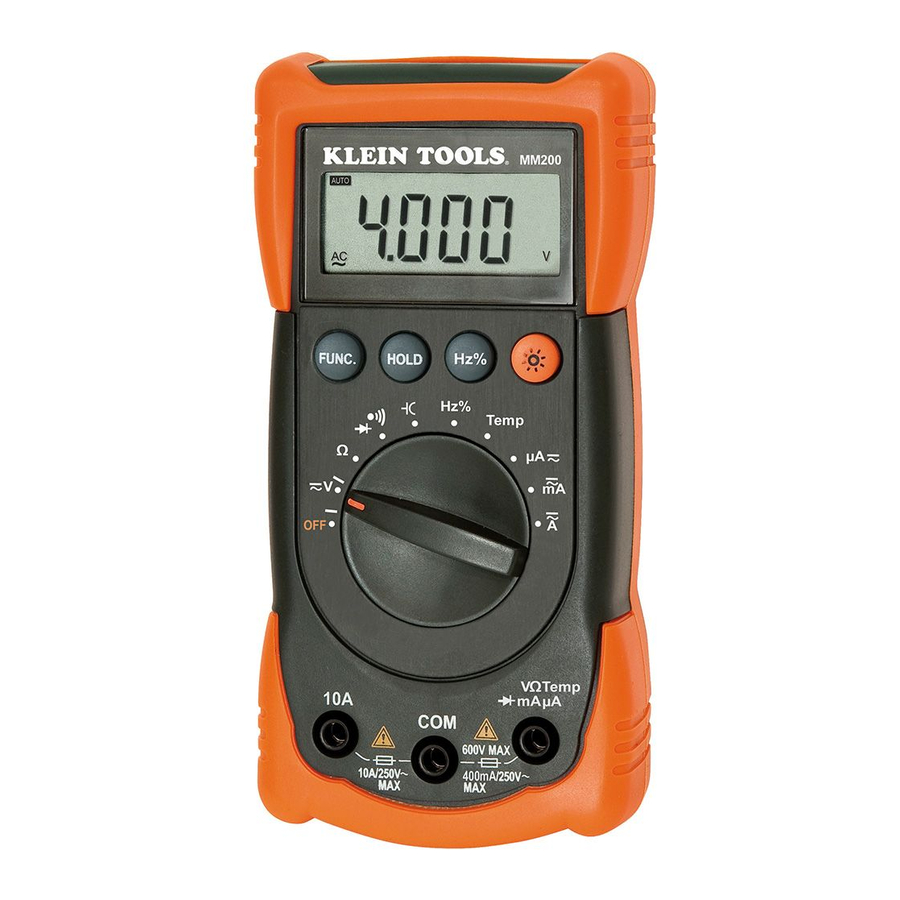

MM200
